Products  -   180  series   Belt Driven Linear Stages

180 series Belt Driven Linear Stages
 (6 inch carriage)       (12 inch carriage)
Part Number     Part Number
Load Capacity    Load Capacity
CP0                    CP0
CP1                    CP1
CP2                    CP2
WC1                   WC1
Product  Overview
Model Number: 180  series
Key Feature: Large Load Capacity Belt Driven
Linear Stages
Linear Bearing: Square Rail
Drive Type: Belt
Height: 2.953 inches (75 mm)
Width: 6.000 inches (152 mm)
Load Capacity: 8,400 lbs (3810 kg)
Travel Range: 6 to 108 inches (150 to 2740 mm)
Top Speed: < 118 in/sec (3000 mm/sec)
Mounting: English or Metric
Delivery: 2 to 4 weeks
Get a Price            Get a CAD File
180 series Belt Driven Linear Stages

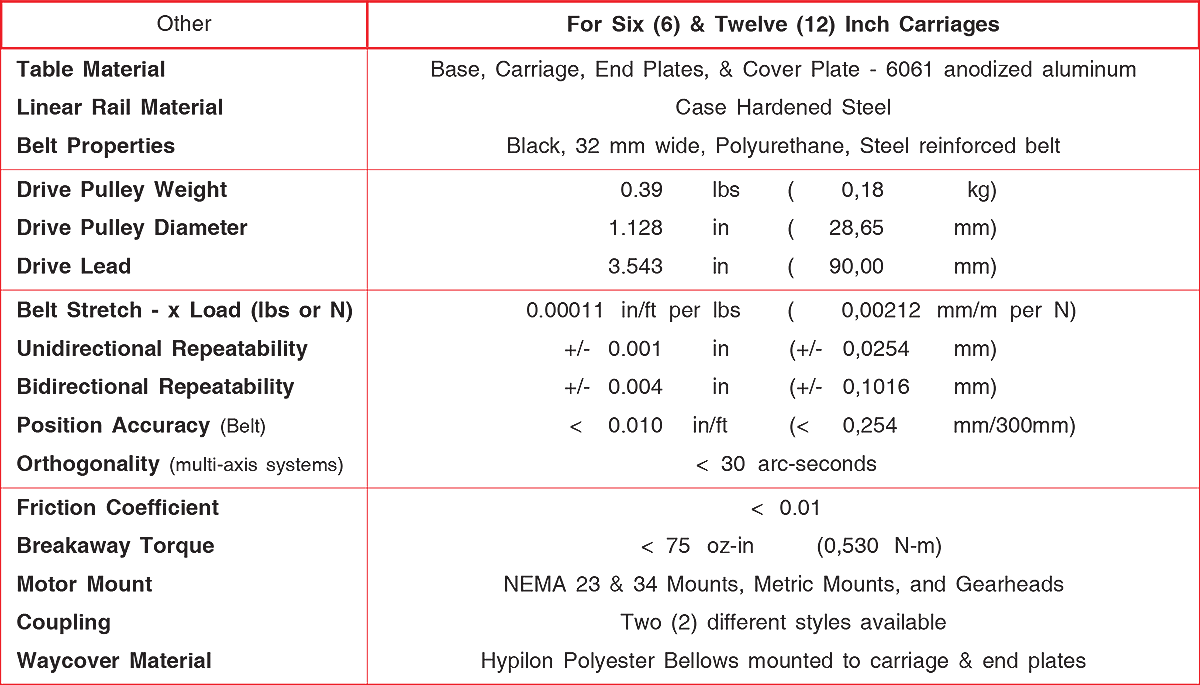

The Lintech 180 series linear tables are designed to handle large loads at very high speeds. These linear stages use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear profile rails. The linear square rails are mounted to an extruded aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. The drive system uses two pulleys, along with a high strength, steel reinforced polyurethane belt, which provides 3.543 inches (90 mm) of linear movement per revolution of the input shaft. NEMA 23 & 34 motor mounts, or gearhead mounts are available as well as planetary gearheads.
PDF  File  Down  Loads
                 180  Technical Information              Design Section Systems
                 Complete  180  Section              Custom Systems
                 Complete Systems Catalog              Systems Service Manual
