Products  -   550  series   Belt Driven Linear Tables

550 series Belt Driven Linear Tables
Part Number
Load Capacities
Dimensions
Rail and Base Mounting

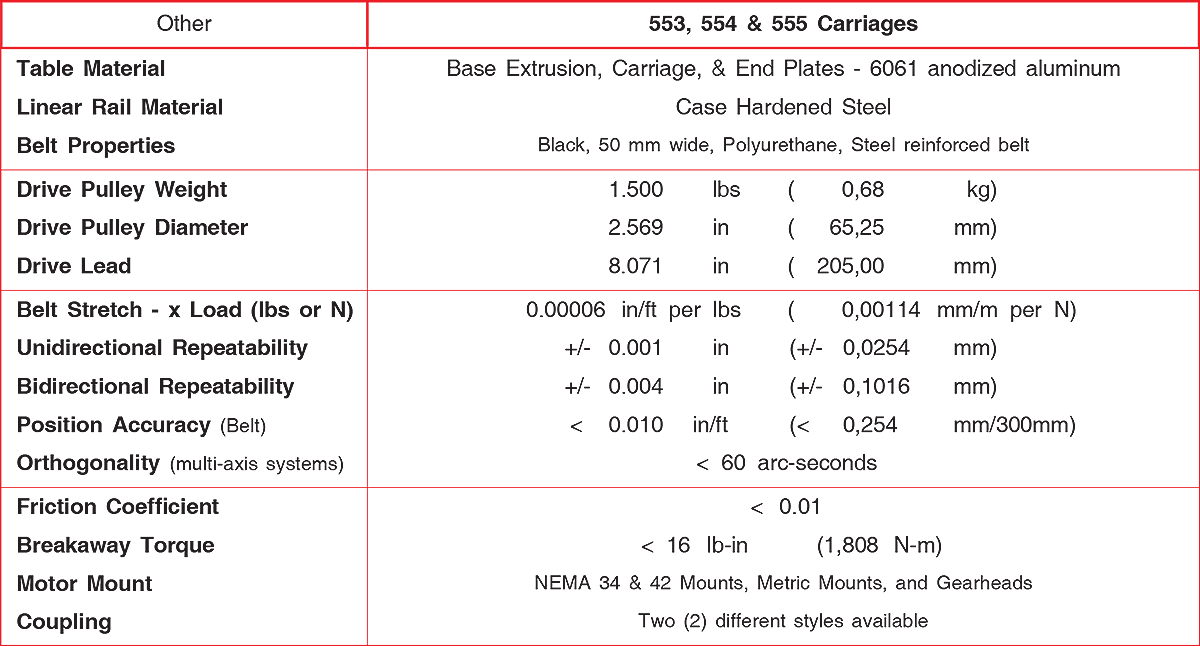

Product  Overview
Model Number: 550  series
Key Feature: Large Capacity Thin Belt Driven
Linear Tables
Linear Bearing: Square Rail
Drive Type: Belt
Height: 3.937 inches (100 mm)
Width: 3.150 inches (80 mm)
Load Capacity: 10,300 lbs (4672 kg)
Travel Range: 12 to 360 inches (300 to 9144 mm)
Top Speed: < 118 in/sec (3000 mm/sec)
Mounting: English or Metric
Delivery: 2 to 4 weeks
Get a Price            Get a CAD File
550 series Belt Driven Linear Tables
The Lintech 550 series linear slides are designed to handle large loads at very high speeds. These linear actuators use a low friction, preloaded, recirculating linear ball bearing system, which ride on a single precision ground linear square rail. The single linear profile rail is mounted to a precision machined aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has slots machined into it. These slots, along with the base mounting brackets, are used for the mounting of the user load. The drive system uses two pulleys, along with a high strength, steel reinforced polyurethane belt, which provides 8.071 inches (205 mm) of linear movement per revolution of the input shaft. The simple belt tensioning system allows for easy adjustment of belt tension by the user. The belt also acts as a cover, preventing debris from getting into the linear bearings & rail.
PDF  File  Down  Loads
                 550  Technical Information              Design Section Systems
                 Complete  550  Section              Custom Systems
                 Complete Systems Catalog              Systems Service Manual
Product  Resources
Get a Price Get a CAD File
Quick Select a Positioning System Custom Positioning Systems
