Products  -   SL-PD  series   Class L Pre-Drilled Linear Shafts

SL-PD series Class L Precision Linear Shaft
Part Number
Dimensions and Specs
Machining Options
Machining Questionnaire
Complete Linear Shafting
Complete Round Rail Catalog
Product  Overview
Model Number: SL-PD  series
Key Feature: Pre-Drilled Cut to Length Shafts
Shaft Tolerance: Class L
Shaft Material: * 1566 Steel (60-65 Rc)
* 440C Stainless Steel (50-55 Rc)
* CR (67-72 Rc)
Shaft Diameters: 0.250 to 2.000 inches
Maximum Lengths: 202 inches
Matching Bearings: LBO    LBOH    SLBO    SLBOH
DLBO    DLBOH
Delivery: Stock
Get a Price            Get a CAD File

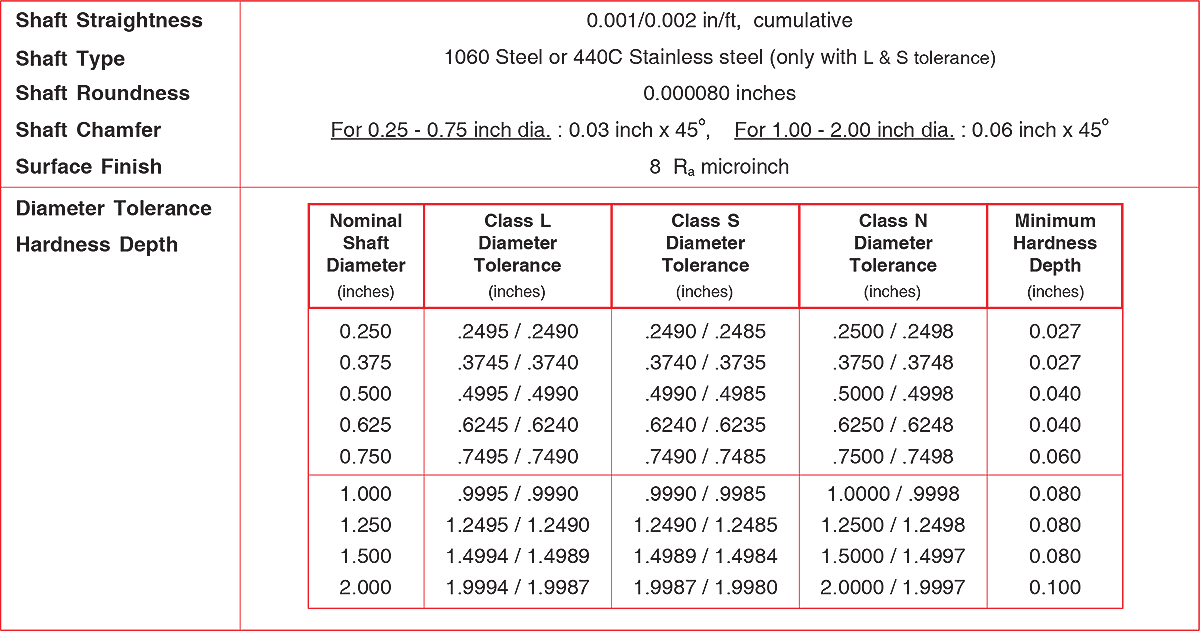

SL-PD series Precision Linear Shafts
SL-PD series Precision Linear Shafting
LinTech offers "Cut to length" Class L steel and stainless steel precision linear shafting. 1566 Carbon steel precision linear shafting is available from 0.250 to 2.000 inch diameters. 440C stainless steel shafting is available from 0.250 to 2.000 inch diameters also. Any length is available within .001 inch increments, up to the standard maximum stocked lengths. The SL-PD (pre- drilled) option offers ready to mount shafts to the ARS or LSRS component supports. Any precision linear shaft can also be machined per drawings which are supplied by the customer (i.e. radial and coaxial holes, dowel joints, butt joints, reduced diameters, threaded ends, machined mounting holes, keyways, special chamfers, etc.).
PDF  File  Down  Loads
                   SL-PD  Technical Information            Design Section Components
                   Entire Components Catalog            Components Service Manual
