Products  -   DLBOH  series   Open Dual Pillow Blocks

DLBOH series Round Rail Pillow Blocks
Part Number and Specs

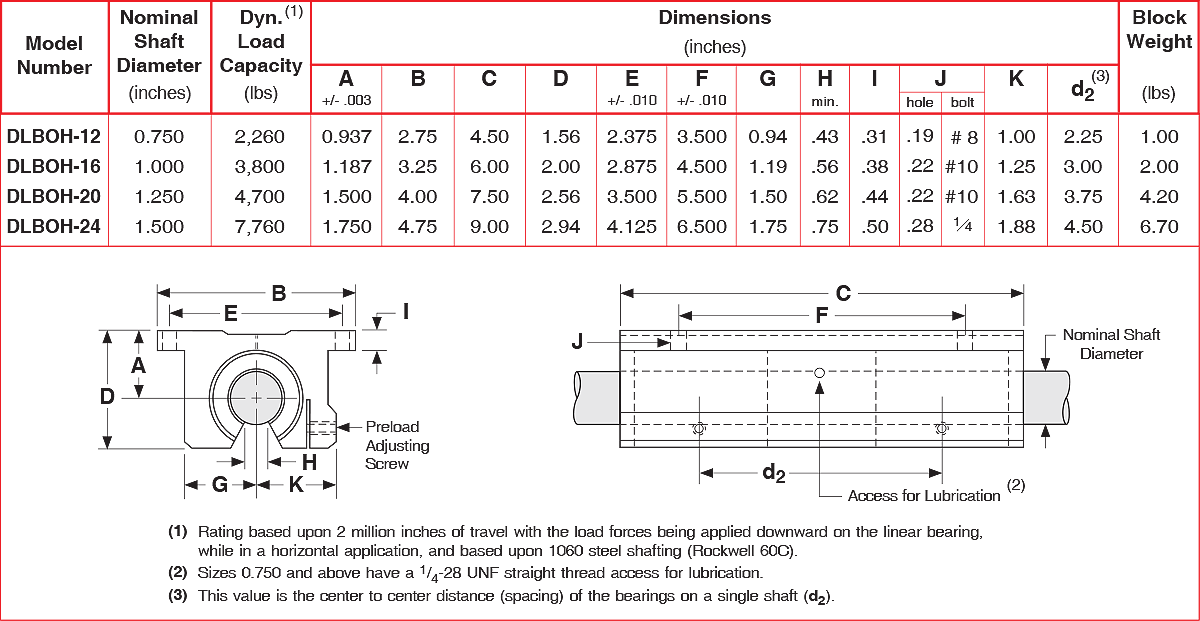

Dimensions
Hand Wheel Lock
Drop In Replacement for
Round Rail Bearings
Complete Round Rail Catalog
Product  Overview
Model Number: DLBOH  series
Key Feature: 2 Open LBOH High Capacity Ball Bushings
Type: Self-Aligning Linear Ball Bushing
Load Capacity: 2,260 to 7,760 lbs
Shaft Diameters: 0.750 to 1.500 inches
Bearing Type: Recirculating Round Rail Linear Bearing
Works With: SL shafting,
SA  and  TRSA  shaft assemblies
Delivery: Stock
Get a Price             Get a CAD File
DLBOH series Open Dual Pillow Blocks

Self-Aligning Linear Ball Bushing Information:

The DLBOH series incorporates two open linear LBOH bushings within one aluminum pillow block, seperated by a wick that serves as an oil lubricating reservoir. The DLBOH series greatly reduces installation time when compared to the mounting, and the aligning, of two SLBOH series pillow blocks to a common carriage. Also, seal drag is reduced, as there are still only two wiper seals per DLBOH pillow block. Each pillow block housing provides flat mounting surfaces which make the mounting, and aligning, process easy and accurate in a mechanical positioning system.

Recirculating Round Rail Linear Bearing Products:

Lintech carries a large inventory of these products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. Please Contact us today with your needs.
PDF  File  Down  Loads
                   DLBOH  Technical Information              Design Section Components
                   Entire Components Catalog              Components Service Manual
