Products  -   TRSA  series   Pre-Aligned Dual Shafts

TRSA series Pre-Aligned Dual Shaft Assembly
Part Number
End Stops
End Machining

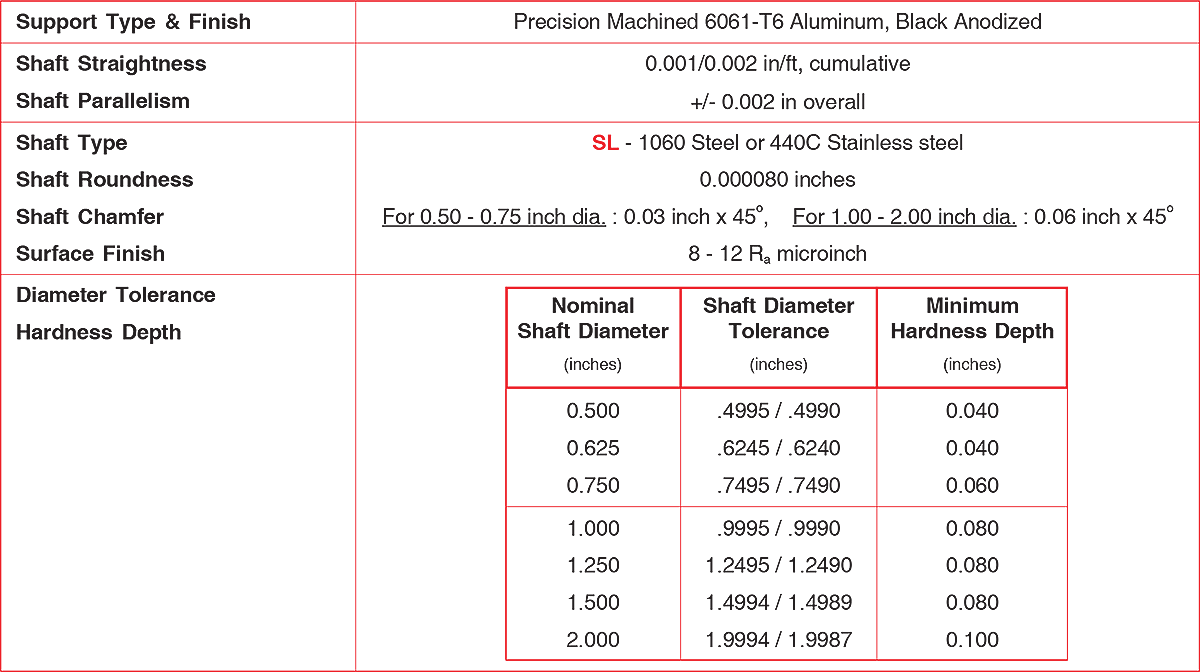

Product  Overview
Model Number: TRSA  series
Key Feature: Dual pre-aligned shafts mounted
to an aluminum support
Shaft Diameters: 0.500 to 2.000 inch
Assembly Lengths: 6 to 192 inches
Matching Bearings: TRCA,  LBO,  SLBO  and  DLBO  series
Delivery: Stock to 1 week
Get a Price            Get a CAD File

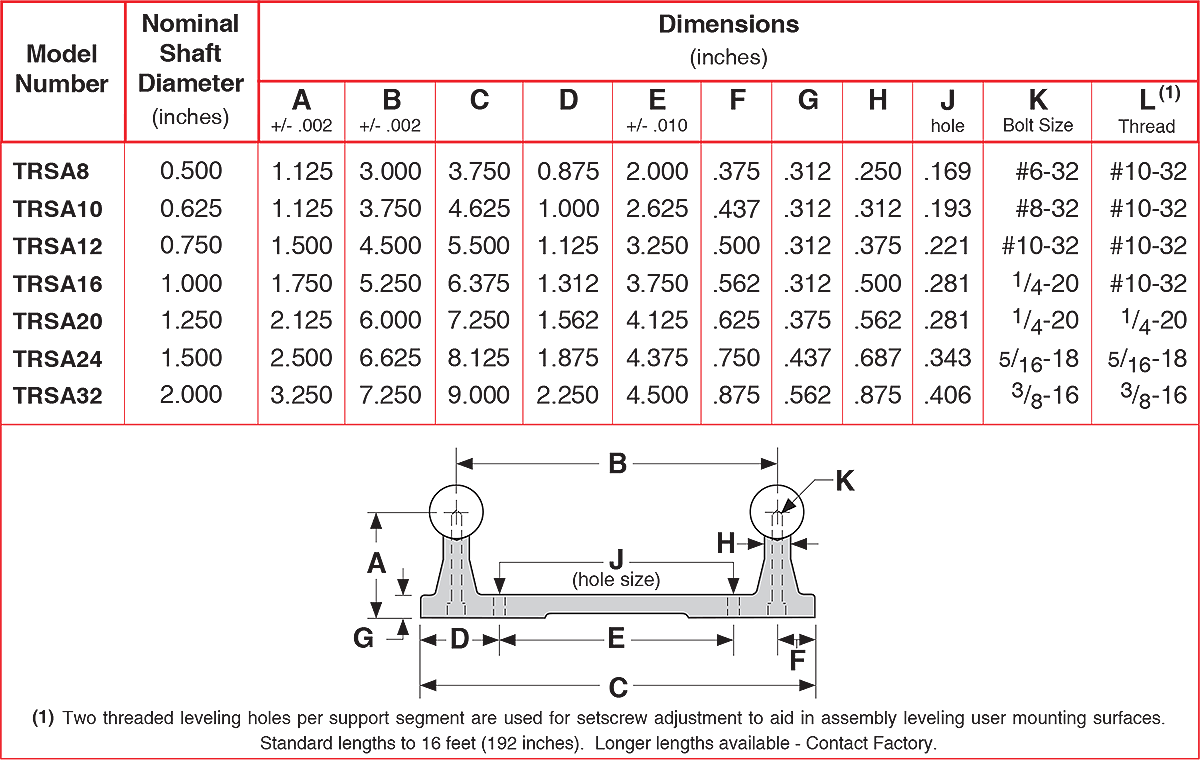

6 to 30 Inch                 36 to 60 Inch                  66 to 108 Inch                  120 to 192 Inch
TRSA series Dual Twin Rail Shaft Assembly
TRSA series Dual Rail Shaft Assemblies
These Dual Rail shaft assemblies are a complete pre-engineered assembly which simplifies the use of a linear bearing system in a mechanical positioning application. The two steel shafts are mounted and pre-aligned on the common base, therefore eliminating the time consuming alignment process normally required for two seperate shafts. The pre-drilled base mounting holes in the aluminum support allow for easy customer mounting. Each 6, 12, 18, & 24 inch aluminum support has two threaded holes at one end, to assist in leveling the assembly in the final mechanical structure. The TRSA assemblies come in standard lengths from 6 to 192 inches, and with shaft diameters from 1/2 to 2 inches. Contact us for custom TRSA shaft assemblies.
PDF  File  Down  Loads
                 TRSA  Technical Information              Design Section Components
                 Entire Components Catalog              Components Service Manual
Product  Resources
Get a Price Get a CAD File
