Products  -   LBOH  series   Open Inch Ball Bushings

LBOH High Capacity Self Aligning Ball Bushing Open Inch Series

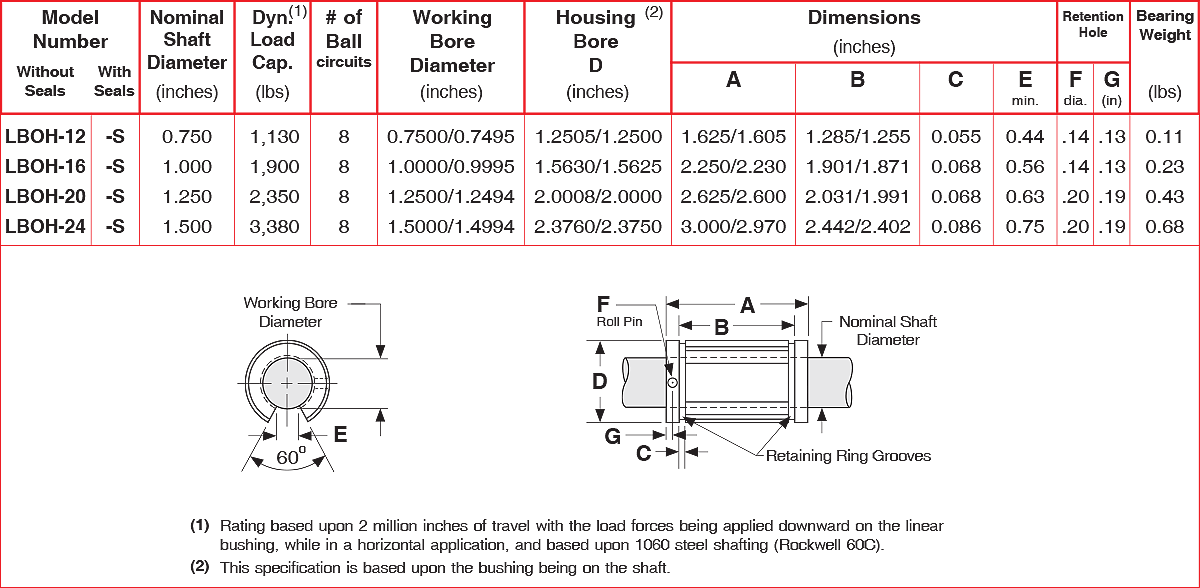

Part Number and Specs
Polar Chart Load Capacity
Drop In Replacement for
Round Rail Bearings
Complete Round Rail Catalog
Product  Overview
Model Number: LBOH  series
Key Feature: Open Inch Series
Type: High Capacity Self Aligning Ball Bushing
Load Capacity: 1,130 to 3,380 lbs
Shaft Diameters: 0.750 to 1.500 inches
Bearing Type: Recirculating Linear Round Rail Bearing
Works With: SL shafting,
SA  and  TRSA  shaft assemblies
Delivery: Stock
Get a Price            Get a CAD File
LBOH series Open Inch Ball Bushings

High Capacity Self Aligning Ball Bushing Information:

The LBOH series is an open style, super very high load capacity ball bushing, which has more rows of recirucating balls than the LBO series. These linear bearings have a ball conforming outer race coupled with a self-aligning feature which allows for zero bearing clearance while maintaining smooth operation. The independently self aligning outer bearing races insure smooth operation by absorbing miss alignment up to 1/2 degree in all directions. These bearings are typically used with the Lintech SL series precision linear shafts.

Recirculating Linear Round Rail Bearing Products:

Lintech carries a large inventory of these products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. Please Contact us today with your needs.
PDF  File  Down  Loads
                   LBOH  Technical Information              Design Section Components
                   Entire Components Catalog              Components Service Manual
