Products  -   SA  series   Single Shaft Assemblies

SA series Precision Single Shaft Assemblies

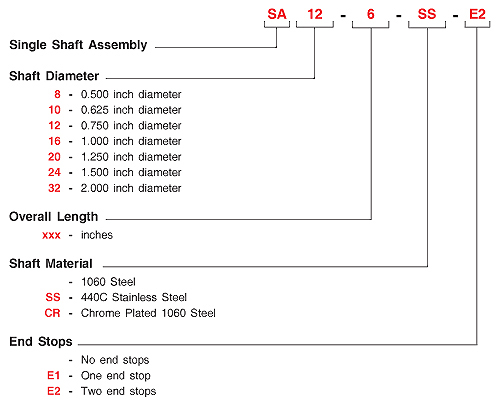

Part Number

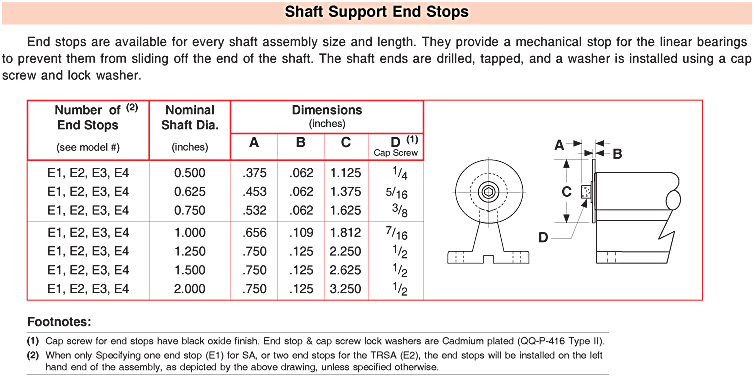

End Stops

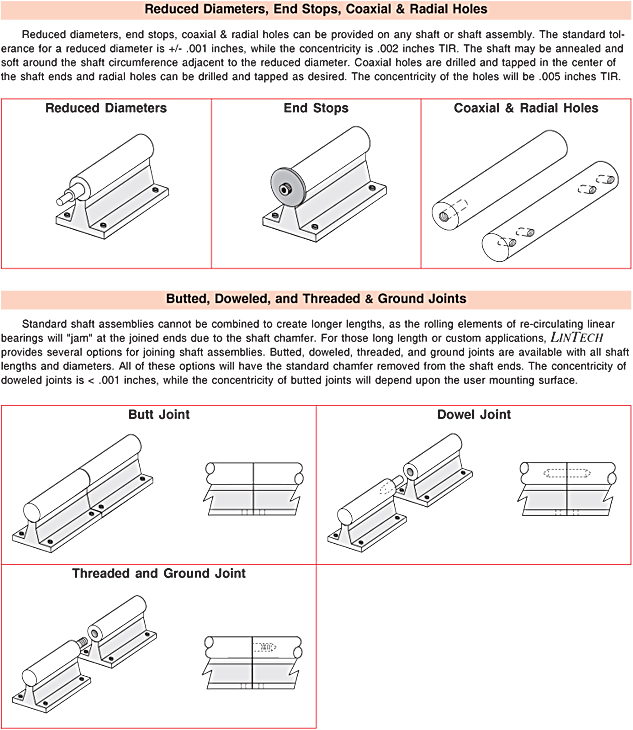

End Machining
Shaft Assemblies
Complete Round Rail Catalog

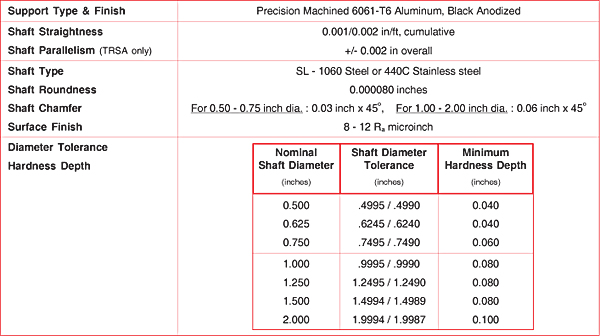

Product  Overview
Model Number: SA  series
Key Feature: Single shaft mounted
to an aluminum support

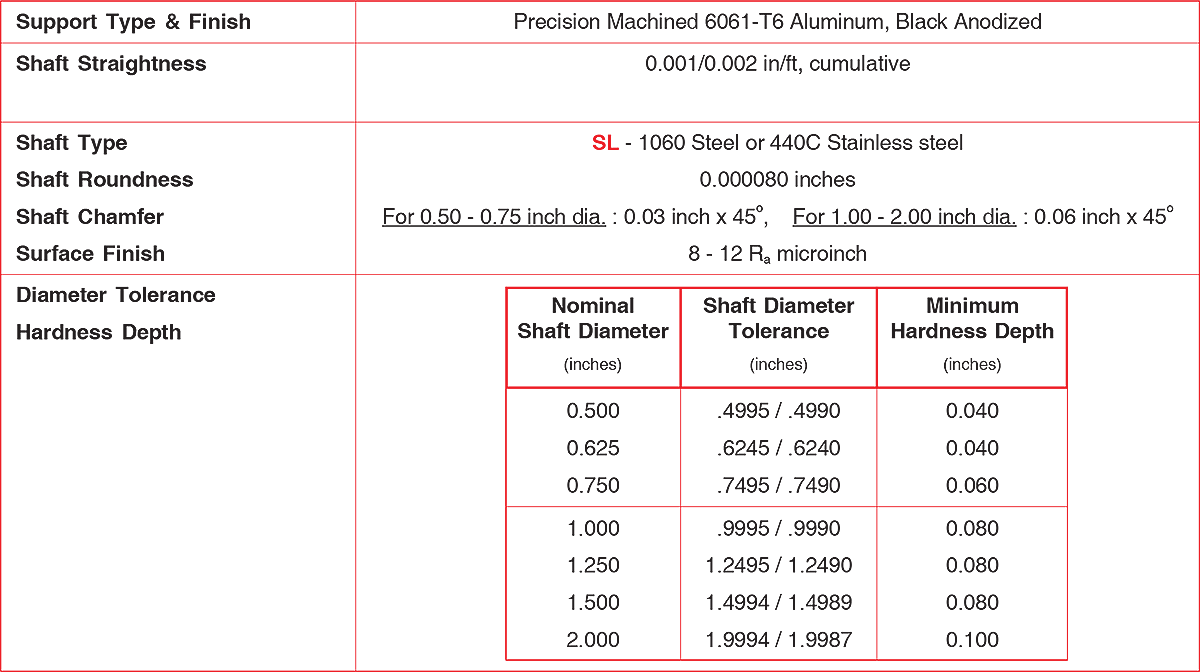

Shaft Tolerance: Class L
Shaft Material: * 1566 Steel (60-65 Rc)
* 440C Stainless Steel (50-55 Rc)
* CR (67-72 Rc)

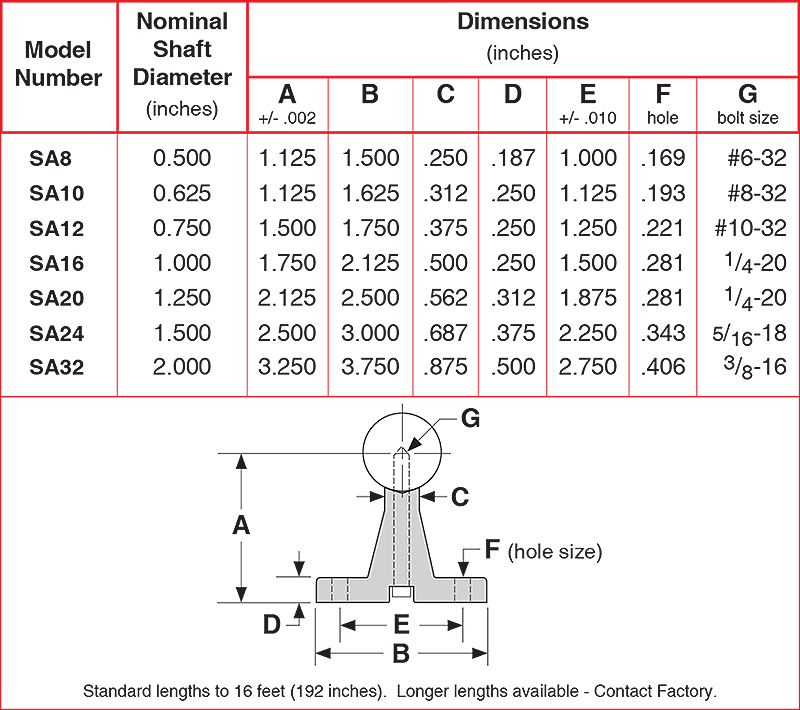

Shaft Diameters: 0.500 to 2.000 inch
Assembly Lengths: 6 to 192 inches
Matching Bearings: LBO    LBOH    SLBO    SLBOH
DLBO    DLBOH
Delivery: Stock to 1 week
Get a Price            Get a CAD File

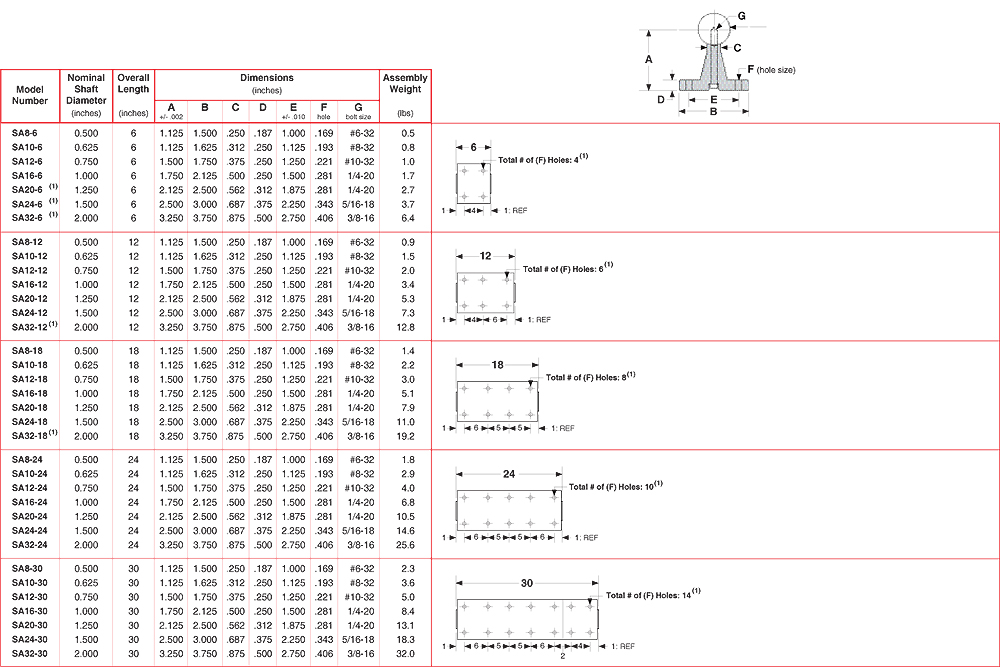

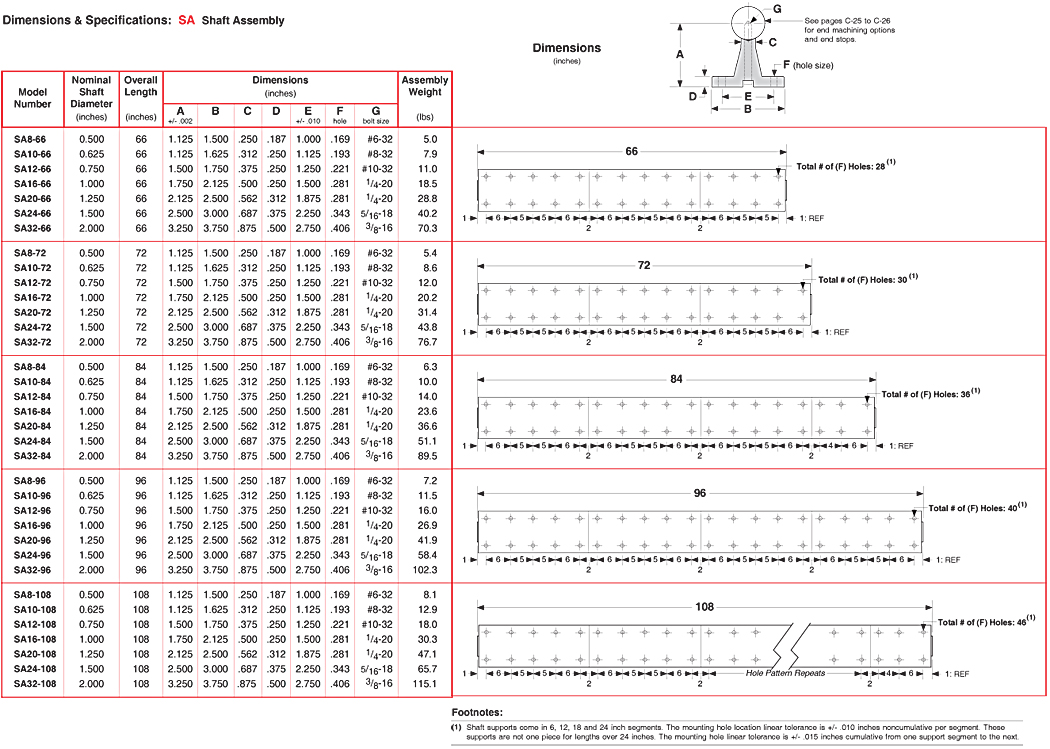

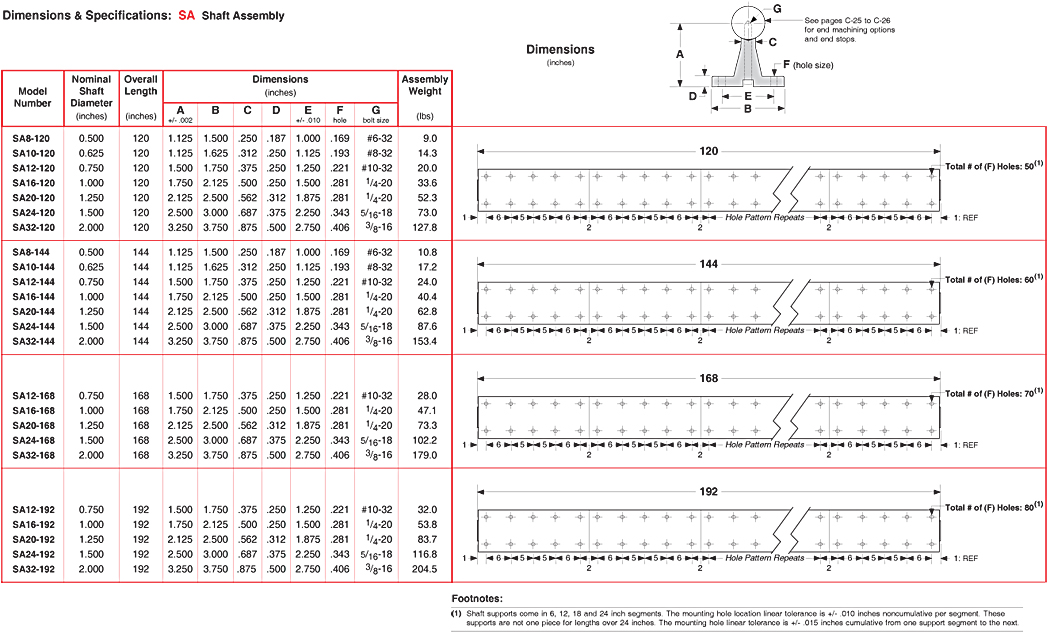

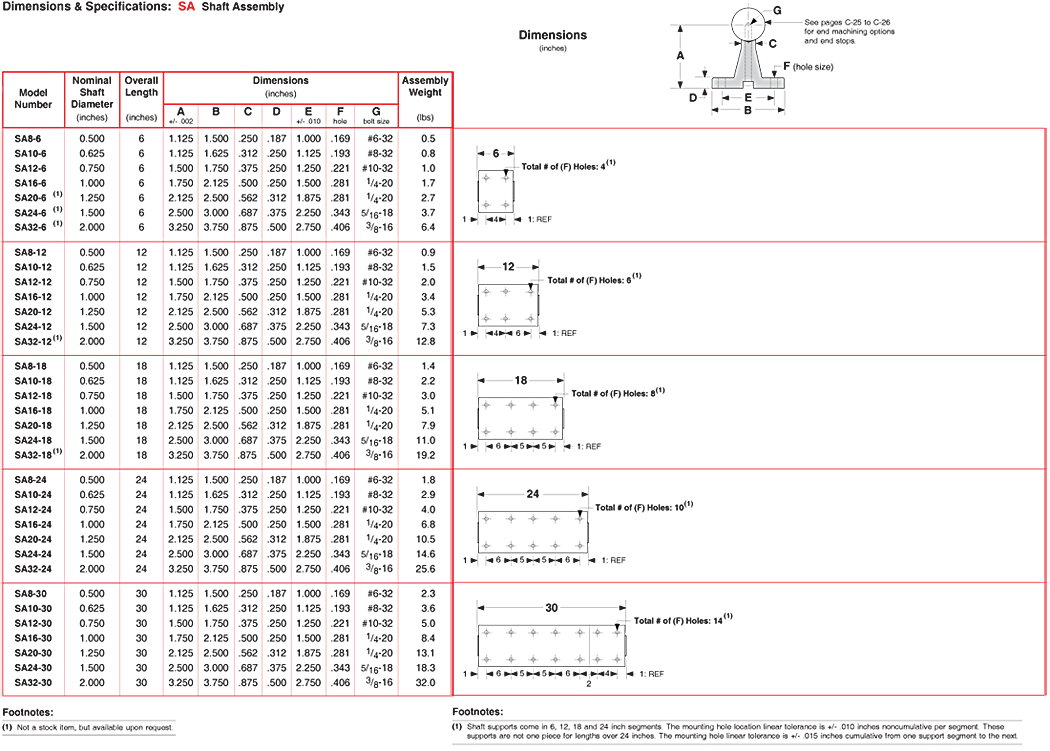

6 to 30 Inch                 36 to 60 Inch                  66 to 108 Inch                  120 to 192 Inch
SA series Single Rail Shaft Assembly
SA series Single Rail Shaft Assemblies
These single Shaft Assemblies (SA series) are a complete pre-engineered assembly which simplifies the use of a linear bearing system in a mechanical positioning application. Each assembly has either a 1566 carbon steel shaft or a 440C stainless steel shaft pre- mounted to a black anodized precision machined aluminum support. The pre- drilled base mounting holes in the 6, 12, 18, and 24 inch aluminum supports allow for easy customer mounting. The SA assemblies come in standard lengths from 6 to 192 inches and with shaft diameters from 1/2 to 2 inches. Contact us for custom SA shaft assemblies.
PDF  File  Down  Loads
                 SA  Technical Information              Design Section Components
                 Entire Components Catalog              Components Service Manual
