Products  -   SLBOH  series   Open Pillow Blocks

SLBOH series Round Rail Pillow Blocks

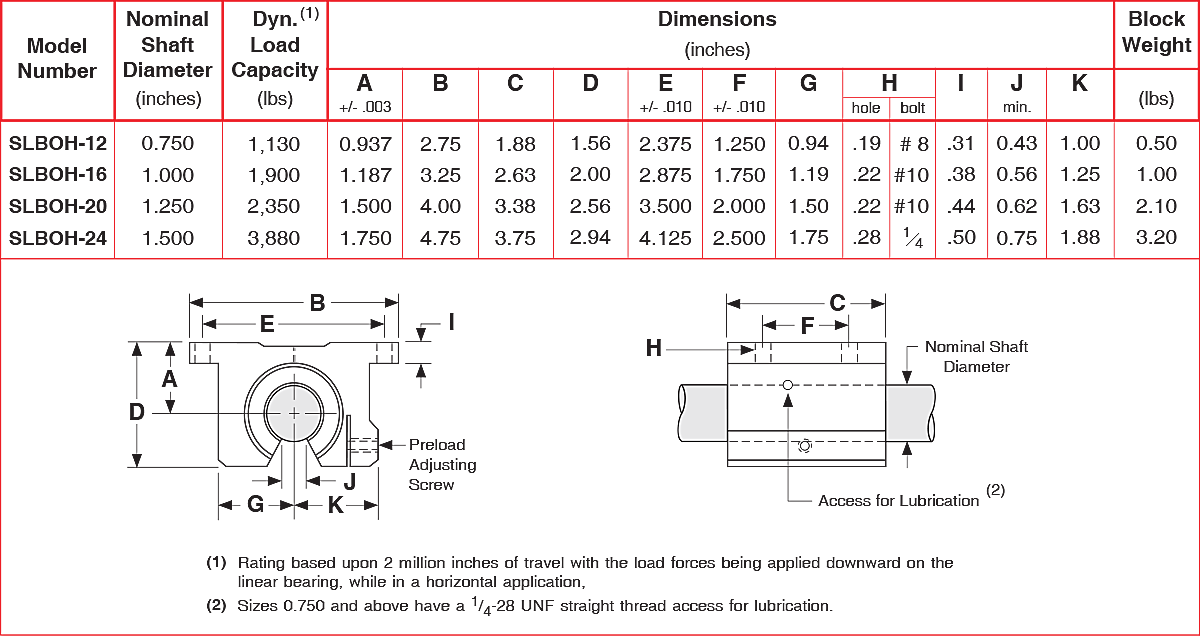

Part Number and Specs
Hand Wheel Lock
Drop In Replacement for
Round Rail Bearings
Complete Round Rail Catalog
Product  Overview
Model Number: SLBOH  series
Key Feature: 1 Open LBOH High Capacity Ball Bushing
Type: Self-Aligning Linear Ball Bushing
Load Capacity: 1,130 to 3,880 lbs
Shaft Diameters: 0.750 to 1.500 inches
Bearing Type: Recirculating Round Rail Linear Bearing
Works With: SL shafting,
SA  and  TRSA  shaft assemblies
Delivery: Stock
Get a Price            Get a CAD File
SLBOH series Open Pillow Blocks

Self-Aligning Linear Ball Bushing Information:

The SLBOH series has one open LBOH linear bushing and two wiper seals per pillow block. These aluminum pillow blocks are self-aligning in all directions, and have a screw for adjusting pre-load which eliminates the clearance between the steel shaft and linear bushing. Each pillow block housing provides flat mounting surfaces which make the mounting, and aligning, process easy and accurate in a mechanical positioning system.

Recirculating Round Rail Linear Bearing Products:

Lintech carries a large inventory of these products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. Please Contact us today with your needs.
PDF  File  Down  Loads
                   SLBOH  Technical Information              Design Section Components
                   Entire Components Catalog              Components Service Manual
Product  Resources
Get a Price Get a CAD File

Lintech CAD File Header
Get a Lintech CAD drawing
Click Here
Video   View Lintech CAD Video
