Products  -   LBO  series   Open Inch Ball Bushings

LBO Super Self Aligning Ball Bushing Open Inch Series

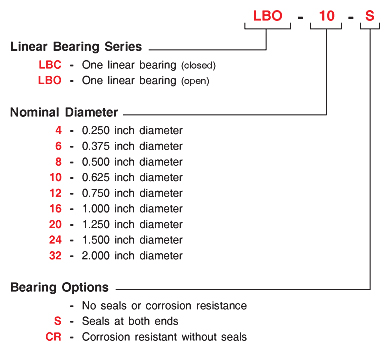

Part Number and Specs

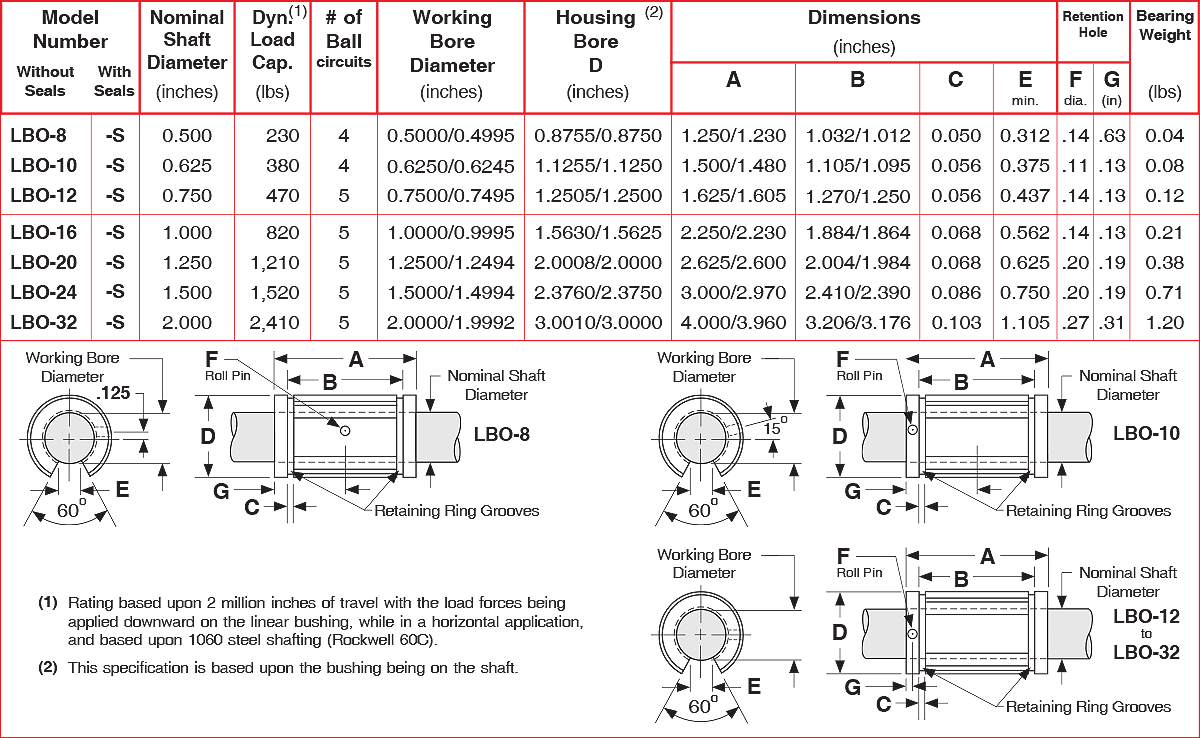

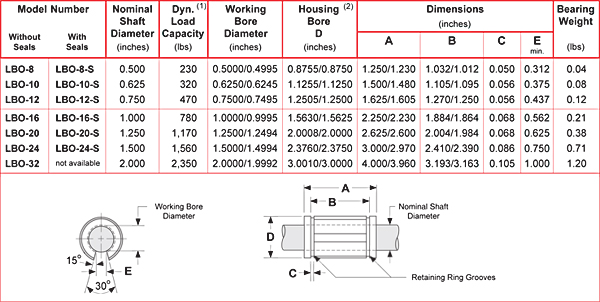

Dimensions

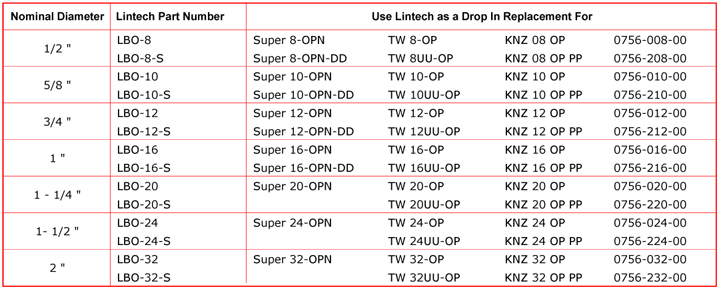

Drop In Replacement for
Product  Overview
Model Number: LBO  series
Key Feature: Open Inch Series
Type: Super Self Aligning Ball Bushing
Load Capacity: 230 to 2,350 lbs
Shaft Diameters: 0.500 to 2.000 inches
Bearing Type: Recirculating Linear Round Rail Bearing
Works With: SL shafting,
SA  and  TRSA  shaft assemblies
Delivery: Stock
Get a Price            Get a CAD File
LBO series Open Inch Ball Bushings

Super Self Aligning Ball Bushing Infomation:

The LBO series is an open style, super high load capacity, Inch series recirculating round rail super ball bushing linear bearing. These linear bearings have a ball conforming outer race coupled with a self-aligning feature which allows for zero bearing clearance while maintaining smooth operation. The independently self aligning outer bearing races insure smooth operation by absorbing miss alignment up to 1/2 degree in all directions. These bearings are typically used with the Lintech SL series precision linear shafts.

Recirculating Linear Round Rail Bearing Products:

Lintech carries a large inventory of these products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. Please Contact us today with your needs.
PDF  File  Down  Loads
                   LBO  Technical Information              Design Section Components
                   Entire Components Catalog              Components Service Manual
