Products - 610 series Screw Driven Linear Enclosed Slide |
|
|
|

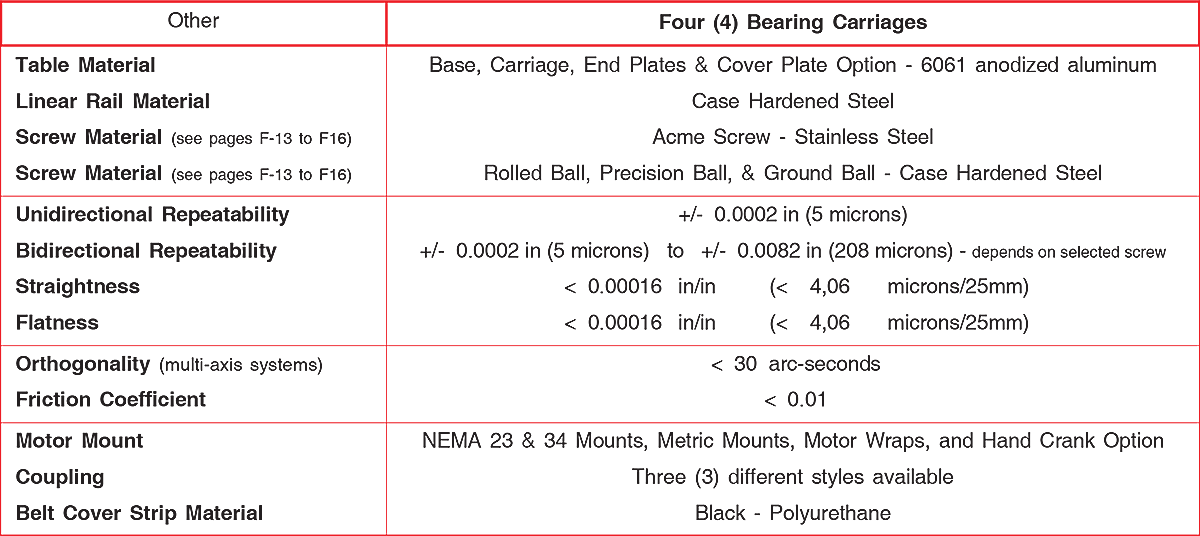

![610 series Screw Driven Linear Enclosed Slide 610 series Screw Driven Linear Enclosed Slide](/images/610_Enclosed_Linear_Slides_Chart_3.png) |
|
|
Acme Screw or Ball Screw Driven Linear Motion: |
The Lintech 610 series screw driven linear enclosed slides are designed to maximize performance while minimizing physical size and cost. These linear positioning systems use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear rail guides. The linear rails are mounted to an extruded aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. There are 38 different acme & ball screw options that offer high efficiencies and long life at an economical price. These linear tables are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages, and versatile mounting brackets for multiple axis applications. |
Square Rail Linear Guide Positioning Systems: |
Lintech has the ability to build any of its standard positioning systems in 2 to 3 weeks. If a quicker delivery is required, based on the raw materials required and our assembly back log, a delivery of less than 1 week can be obtain with an expedite fee. Please Contact us today with your needs. |
|
|
|
|
|
|
|
|
|
|
|
|
