Products  -   SLBCH  series   Closed Pillow Block

SLBCH series Round Rail Pillow Blocks
Part Number and Specs

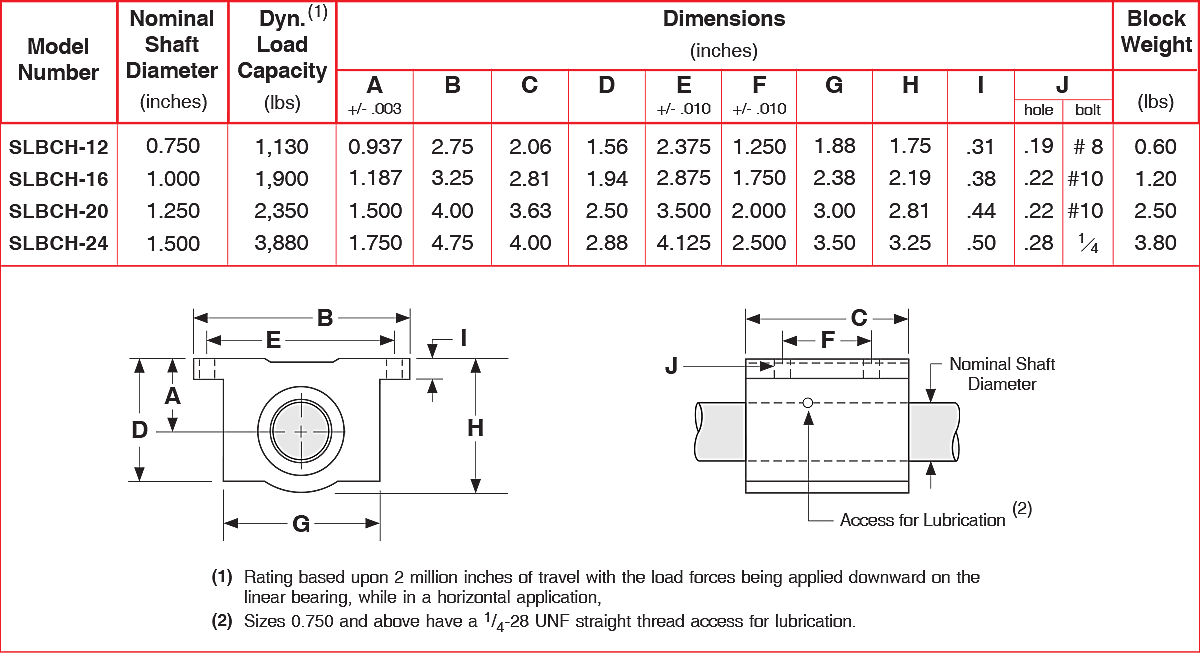

Dimensions
Hand Wheel Lock
Drop In Replacement for
Round Rail Bearings
Complete Round Rail Catalog
Product  Overview
Model Number: SLBCH  series
Key Feature: 1 Closed LBCH High Capacity Ball Bushing
Type: Self-Aligning Linear Ball Bushing
Load Capacity: 1,130 to 3,880 lbs
Shaft Diameters: 0.750 to 1.500 inches
Bearing Type: Recirculating Round Rail Linear Bearing
Works With: SL  shafting
Delivery: Stock
Get a Price             Get a CAD File
SLBCH series Closed Pillow Block

Self-Aligning Linear Ball Bushing Information:

The SLBCH series has one closed LBCH linear bushing and two wiper seals per pillow block. These aluminum pillow blocks are self-aligning in all directions. Each pillow block housing provides flat mounting surfaces which make the mounting, and aligning, process easy and accurate in a mechanical positioning system.

Recirculating Round Rail Linear Bearing Products:

Lintech carries a large inventory of these products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. Please Contact us today with your needs.
PDF  File  Down  Loads
                   SLBCH  Technical Information              Design Section Components
                   Entire Components Catalog              Components Service Manual
