Products  -   400  series   Rotary Positioning Stage

400  series

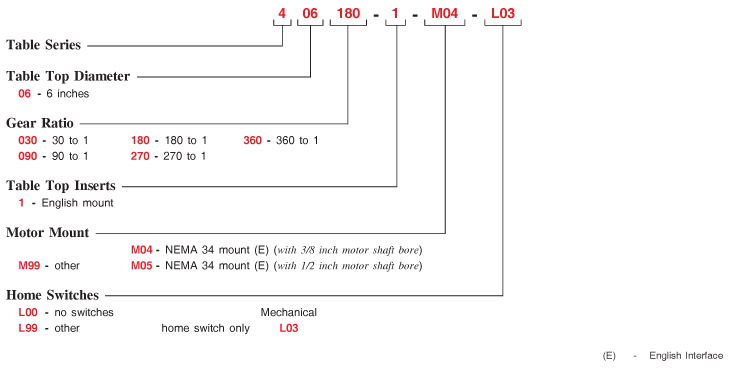

Part Number

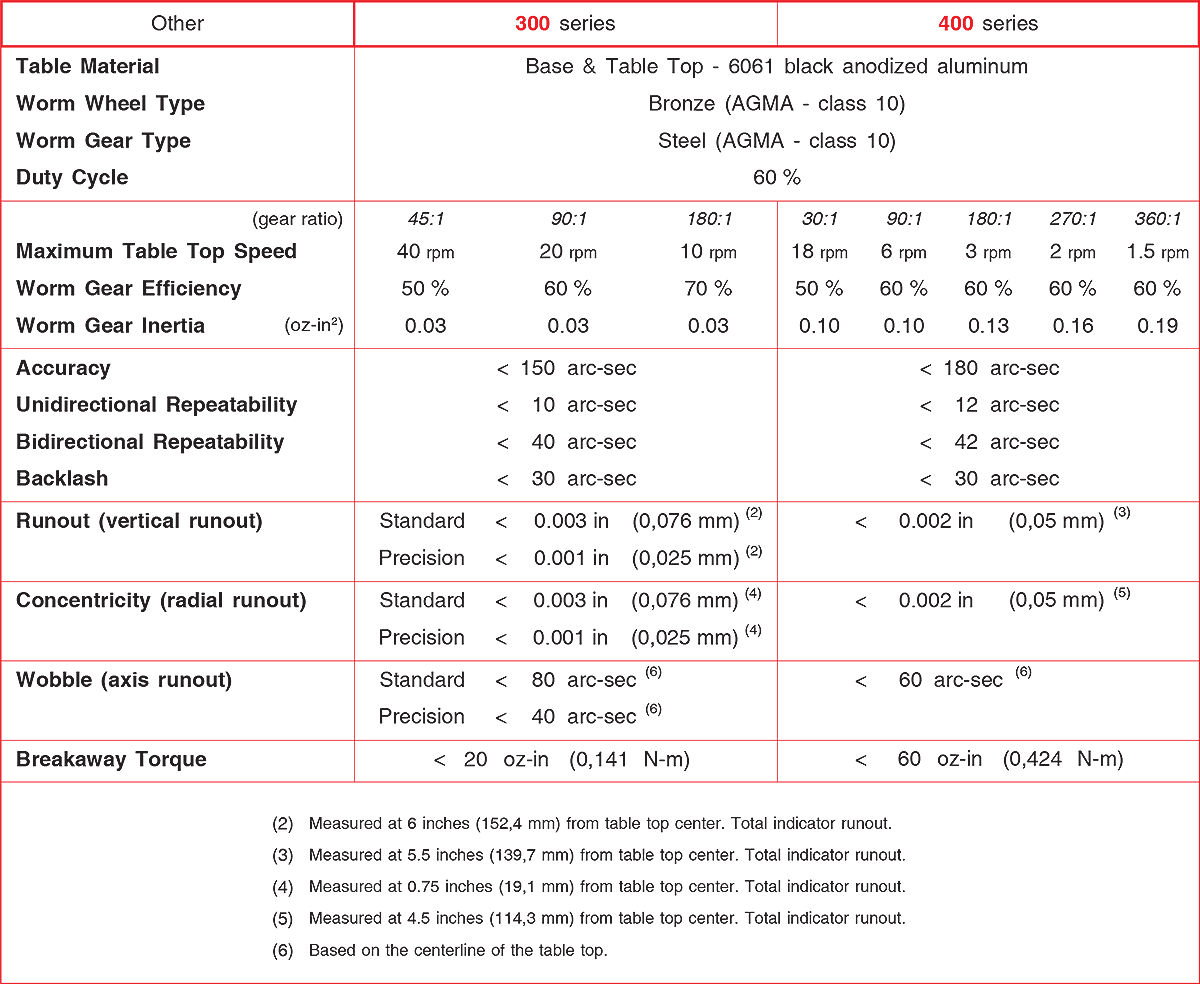

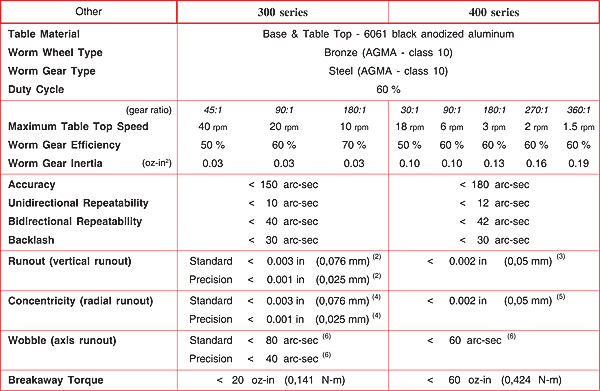

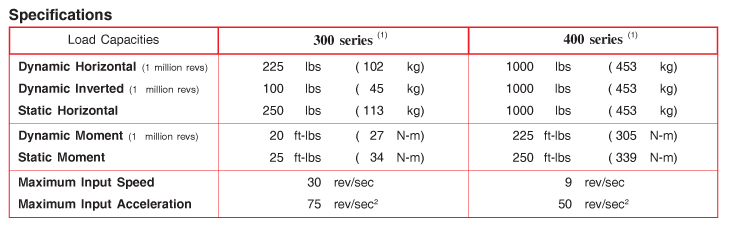

Load Capacity and Specs

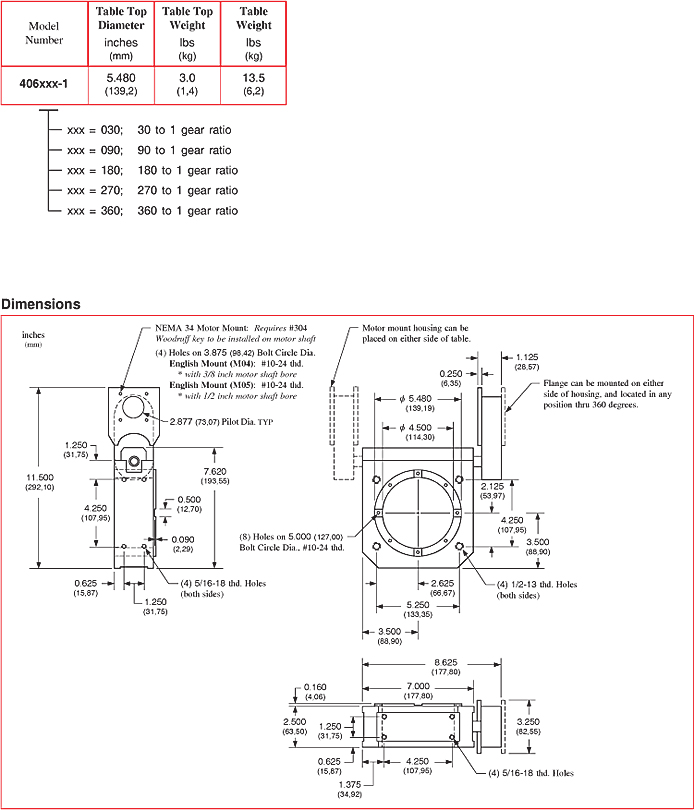

Dimensions
Product  Overview
Model Number: 400  series
Key Feature: High Load Capacity with Large
through hole Rotary Table
Drive Type: Worm Gear
Load Capacity: 1000 lbs (450 kg)
Table Top Diameter: 5.5 inch
Gear Ratios: 90:1, 180:1, 270:1, 360:1
Top Speed: 0.1 rps
Mounting: English
Delivery: 2 to 4 weeks
Get a Price            Get a CAD File
400 series Rotary Positioning Stage
The 400 series rotary positioning tables feature a rigid pair of 4 point contact radial ball bearings which produce smooth table top rotation. The low backlash precision bronze and steel worm gear drive provide years of high accuracy and superb repeatability. This rugged construction offers load capacities of 1000 pounds (453 kgf) and moment loads of 225 ft-lbs (305 N-m). The NEMA 34 motor mount and bushing can be positioned radially 360 degrees for convenient motor location. The large 4.5 inch (114 mm) through hole provides easy access from below.
