Products  -   120  series   Belt Driven Linear Slides

120 series Belt Driven Linear Slides
Part Number
Load Capacities
(Dimensions)
CP0
CP1
CP2
Product  Overview
Model Number: 120  series
Key Feature: Small Belt Driven Linear Slides
Linear Bearing: Square Rail
Drive Type: Belt
Height: 3.000 inches (76,20 mm)
Width: 3.500 inches (88,9 mm)
Load Capacity: 3,100 lbs (1406 kg)
Travel Range: 4 to 120 inches (100 to 3000 mm)
Top Speed: < 118 in/sec (3000 mm/sec)
Mounting: English or Metric
Delivery: 2 to 4 weeks
Get a Price            Get a CAD File

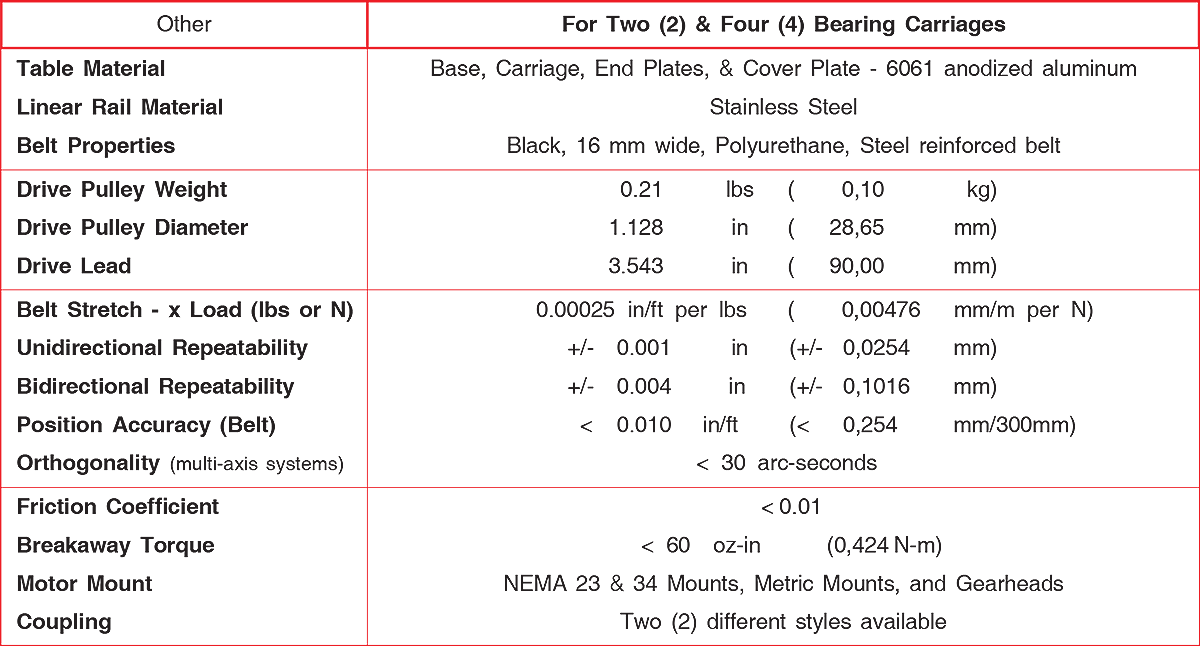

120 series Belt Driven Linear Slides
The Lintech 120 series linear slides are designed to handle light loads at very high speeds. These linear stages use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear square rails. The linear profile rails are mounted to a precision machined aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. The drive system uses two pulleys, along with a high strength, steel reinforced polyurethane belt, which provides 3.543 inches (90 mm) of linear movement per revolution of the input shaft. The simple belt tensioning system allows for easy adjustment of belt tension by the user. NEMA 23 & 34 motor mounts, or gearhead mounts are available as well as planetary gearheads.
PDF  File  Down  Loads
                 120  Technical Information              Design Section Systems
                 Complete  120  Section              Custom Systems
                 Complete Systems Catalog              Systems Service Manual
