Products  -   GS062  series   Ground Ball Screw Assemblies

GS062 series Precision Ground Ball Screw Assembly
Part Number
Configurations / Overall Length
Nut / Flange Dimensions
Support Housing Dimensions
Entire - GS062 - Section
Entire Ball Screw Catalog

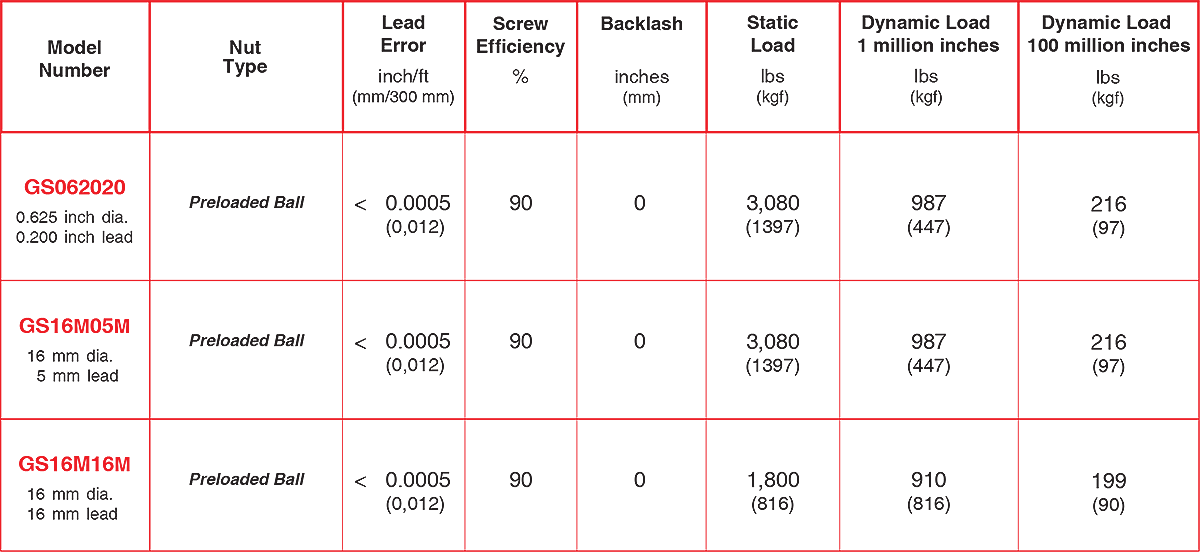

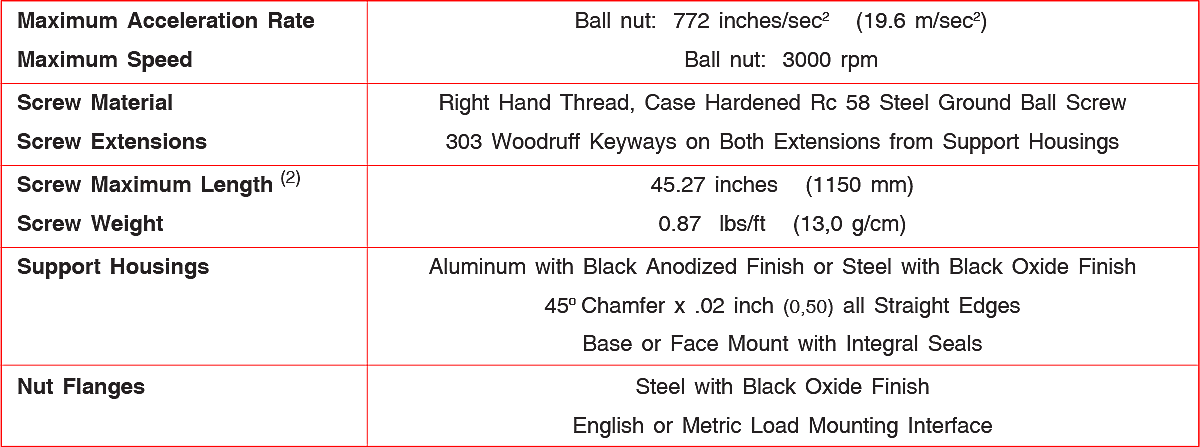

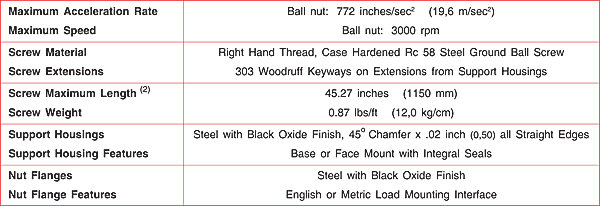

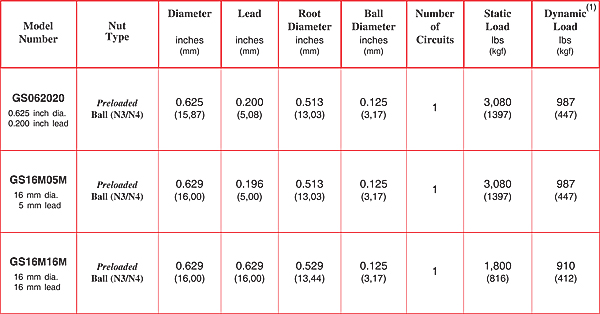

Product  Overview
Model Number: GS062  series
Key Feature: Complete ball screw actuator
with end supports
Screw Style: Precision Ground
Screw Diameter: 0.625 inch & 16 mm
Screw Lengths: up to 40 inches (1016 mm)
Screw Leads: 0.200 inch and 5 & 16 mm
Lead Error: < 0.0005 inches / ft (0,012 mm/300mm)
End Supports: Simple-Simple, Fixed-Simple,
Rigid-Simple, Rigid-Rigid
Support Material: Aluminum or Steel
Mounting: English or Metric
Delivery: 1 to 3 weeks
Get a Price            Get a CAD File
GS062 series Ground Ball Screw Assemblies
GS062 Ground Ball Screw Assemblies
The GS series of ball screw actuators are designed to maximize performance, while providing design flexiblity. These assemblies utilize a precision ground ball screw with precision ground preloaded nuts. These steel ball screws are provided with precision machined steel supports for end bearing housings. The support housings are available in three styles (simple, fixed, and rigid). The fixed and rigid housings have precision machined shoulders that allow for a NEMA motor mount to be factory or field installed. Ball screw assemblies when used with ball nuts offer high efficiencies and long life, at an economical price. These ball screw actuators are typically used when a complete positioning system is too costly, or does not fit the users exact positioning system requirements. When combined with linear bearings & rails, a custom positioning system can be created. These ball screw positioning components are designed to allow for numerous options: rotary encoders, different diameter and lead combinations, solid Turcite nuts, power-off electric brakes, and motor wrap package
PDF  File  Down  Loads
                 GS062  and  GS16M  Tech Info            Design Section Ball Screws
                 Complete Ball Screw Catalog            Options   GS062  and  GS16M
              Service Manual
