Products  -   HRR  series   Square Rail Linear Guide

HRR series Roller Linear Guide
Part Number
Load Capacity
Accuracy Specs
Preload Specs
Complete Profile Rail Catalog
Product  Overview
Model Number: HRR  series
Bearing Type: Profile Rail Roller Linear Guide
Key Feature: High Profile Roller Linear Guides
Sizes: 35, 45
Number of Rows: 4 rows of re-circulating rollers
Load Capacity: From 71.8 to 108.5 kN
Material: Alloy Steel bearing, rail & rollers
Delivery: Stock
Get a Price            Get a CAD File

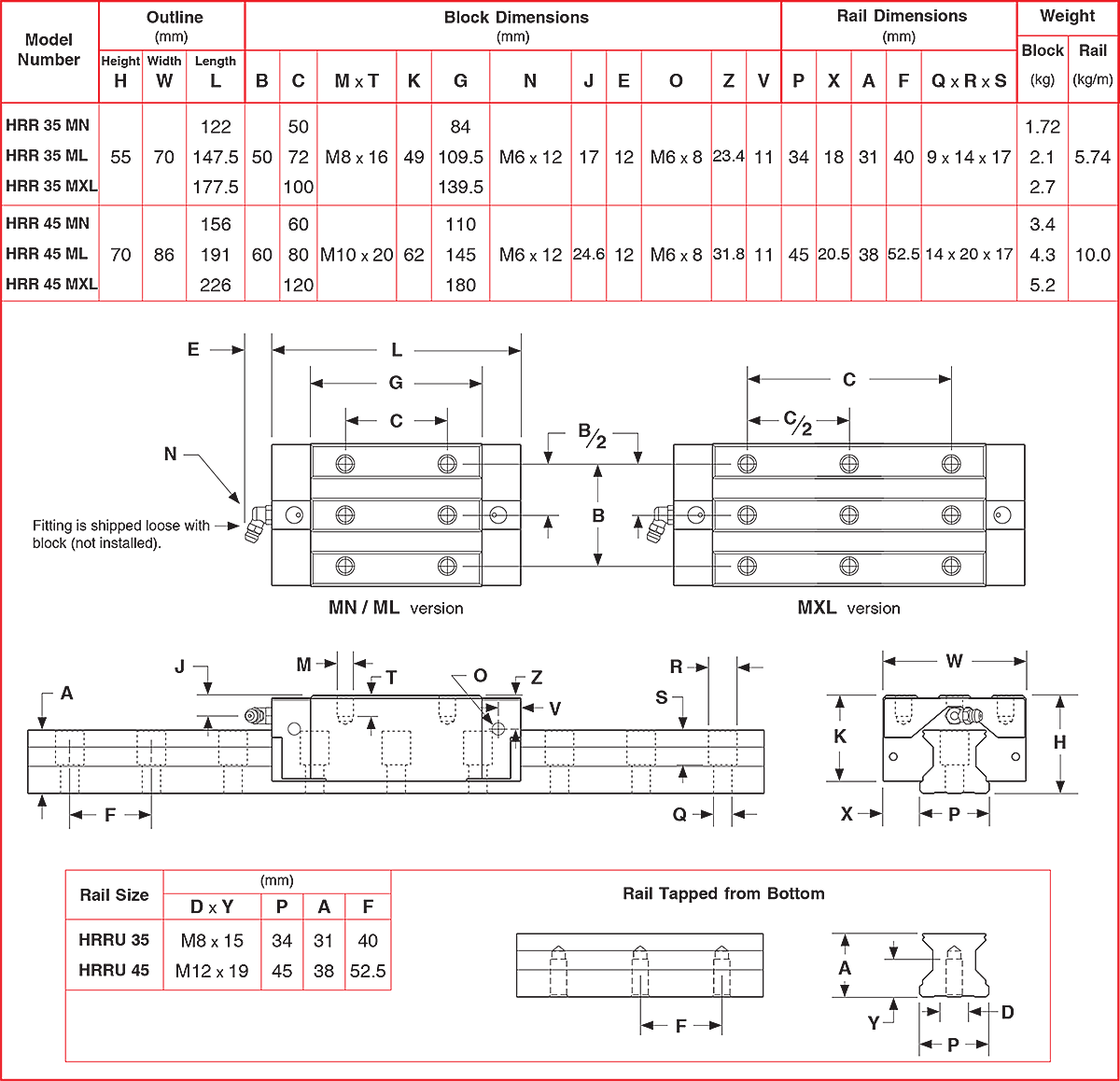

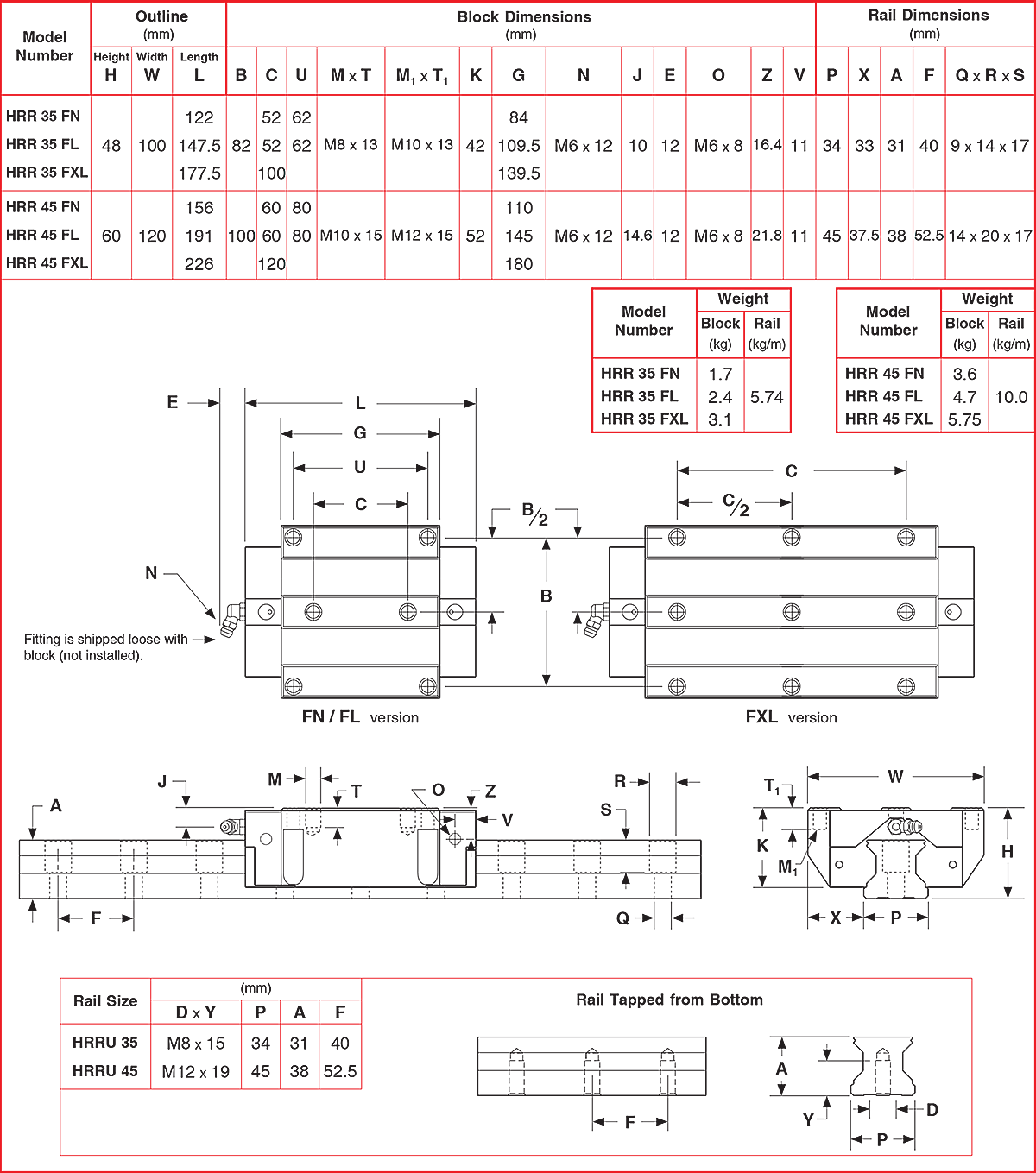

Standard Block Dimensions                 Flanged Block Dimensions
HRR Linear Motion Guides
HRR Profile Square Rail

Profile Rail Roller Linear Guide Information:

Linear Guide Products:

Lintech carries a large inventory of linear guide products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. We can cut to any length required, can machine custom mounting holes or ends, and can provide various plating options in order to create a more robust environment ready product. Please Contact us today with your needs.
PDF  File  Down  Loads
           Profile Rail Linear Guide Catalog            Components Service Manual
           High Speed Linear Guide Report

           High Speed Linear Guide Video
           Saw Dust Environment Report

Product  Resources
Get a Price Get a CAD File
