Products  -   LBCME  series   Closed European Metric Bushing

LBCME Super Self Aligning Ball Bushing Closed Metric - European Style

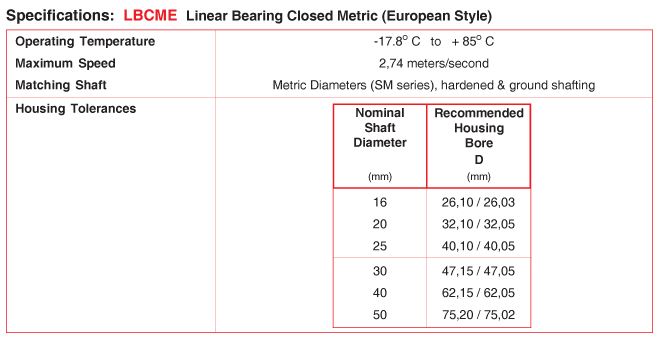

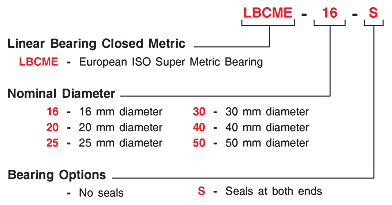

Part Number and Specs

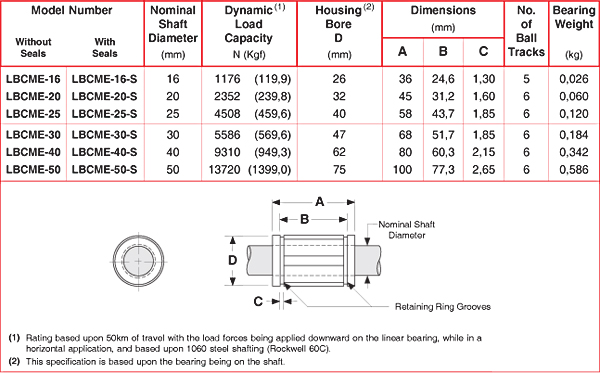

Dimensions

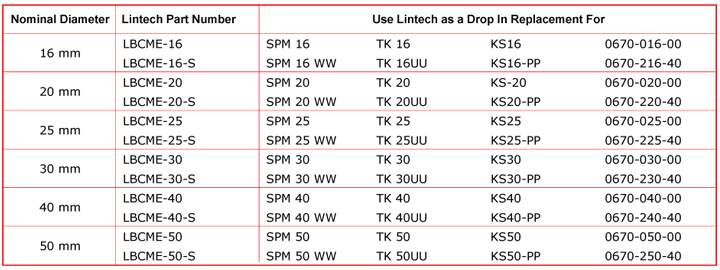

Drop In Replacement for
Product  Overview
Model Number: LBCME  series
Key Feature: Closed Metric - European Style
Type: Super Self Aligning Ball Bushing
Load Capacity: 120 to 1399 Kgf
Shaft Diameters: 16 to 50 mm
Bearing Type: Recirculating Linear Round Rail Bearing
Works With: SM  shafting
Delivery: Stock
Get a Price            Get a CAD File
LBCME series Closed European Metric Bushing

Super Self Aligning Ball Bushing Infomation:

The LBCME series is a closed style, super high load capacity, Metric - European series recirculating round rail super ball bushing linear bearing. These linear bearings have a ball conforming outer race coupled with a self-aligning feature which allows for zero bearing clearance while maintaining smooth operation. The independently self aligning outer bearing races insure smooth operation by absorbing miss alignment up to 1/2 degree in all directions. These bearings are typically used with the Lintech SM series precision linear shafts.

Recirculating Linear Round Rail Bearing Products:

Lintech carries a large inventory of these products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. Please Contact us today with your needs.
PDF  File  Down  Loads
                   LBCME  Technical Information              Design Section Components
                   Entire Components Catalog              Components Service Manual
