Products  -   PS075  series   Precision Ball Screw Assembly

PS075 series Precision Rolled Ball Screw Assembly
Part Number
Configurations / Overall Length
Nut / Flange Dimensions
Support Housing Dimensions
Entire - PS075 - Section
Entire Ball Screw Catalog

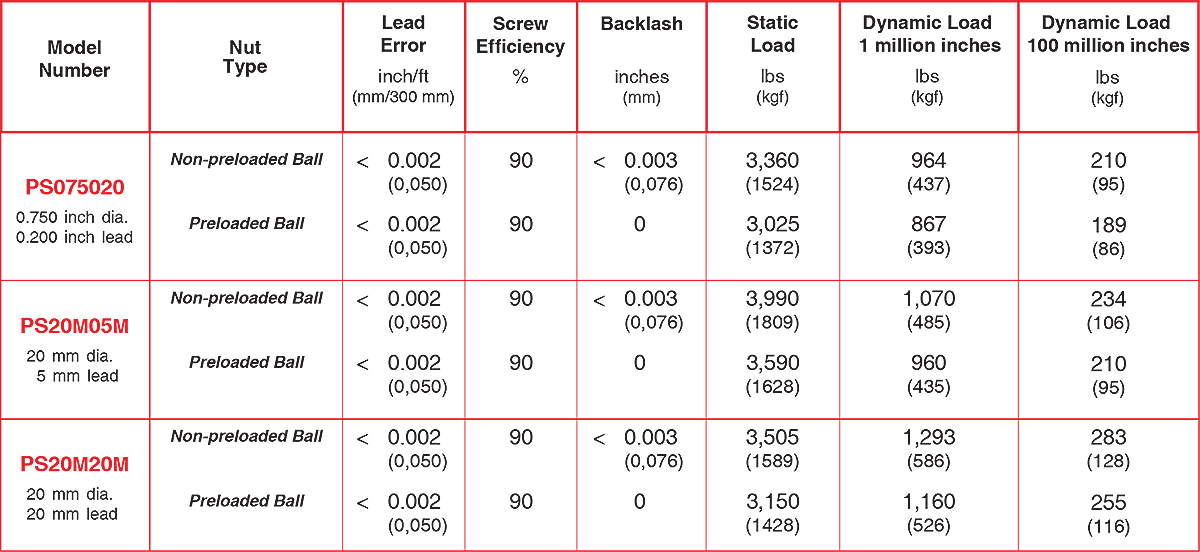

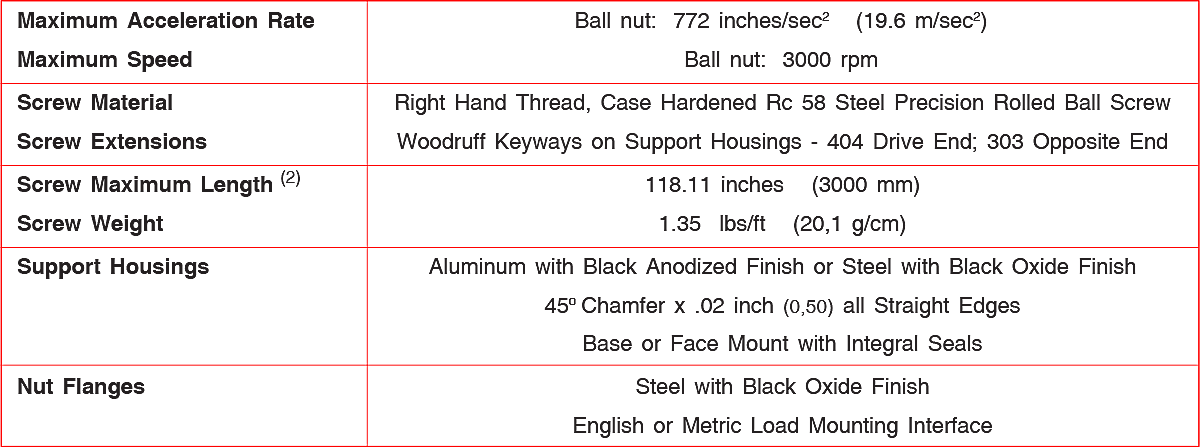

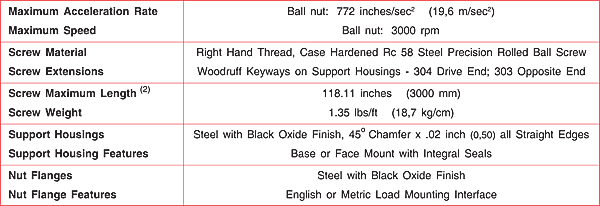

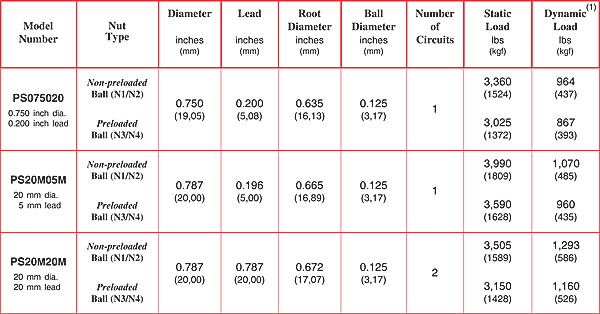

Product  Overview
Model Number: PS075  series
Key Feature: Complete ball screw actuator
with end supports
Screw Style: Precision Rolled
Screw Diameter: 0.750 inch & 20 mm
Screw Lengths: up to 112 inches (2845 mm)
Screw Leads: 0.200 inch and 5 & 20 mm
Lead Error: < 0.002 inches / ft (0,050 mm/300mm)
End Supports: Simple-Simple, Fixed-Simple,
Rigid-Simple, Rigid-Rigid
Support Material: Aluminum or Steel
Mounting: English or Metric
Delivery: 1 to 3 weeks
Get a Price            Get a CAD File
PS075 series Precision Ball Screw Assembly
PS075 Precision Ball Screw Assembly
The PS series of ball screw assemblies are designed to maximize performance, while providing design flexiblity. These assemblies utilize a precision rolled ball screw with precision ground preloaded or non-preloaded nuts. These steel ball screws are provided with precision machined steel supports for end bearing housings. The support housings are available in three styles (simple, fixed, and rigid). The fixed and rigid housings have precision machined shoulders that allow for a NEMA motor mount to be factory or field installed. Ball screw assemblies when used with ball nuts offer high efficiencies and long life, at an economical price. These ball screw assemblies are typically used when a complete positioning system is too costly, or does not fit the users exact positioning system requirements. When combined with linear bearings & rails, a custom positioning system can be created. These ball screw positioning components are designed to allow for numerous options: rotary encoders, different diameter and lead combinations, solid Turcite nuts, power-off electric brakes, and motor wrap package
PDF  File  Down  Loads
                 PS075  and  PS20M  Tech Info            Design Section Ball Screws
                 Complete Ball Screw Catalog            Options   PS075  and  PS20M
              Service Manual
