Products  -   RS150  series   Ball Screw Positioning System

RS150 series Rolled Ball Screw Assembly
Part Number
Configurations / Overall Length
Nut / Flange Dimensions
Support Housing Dimensions
Entire - RS150 - Section

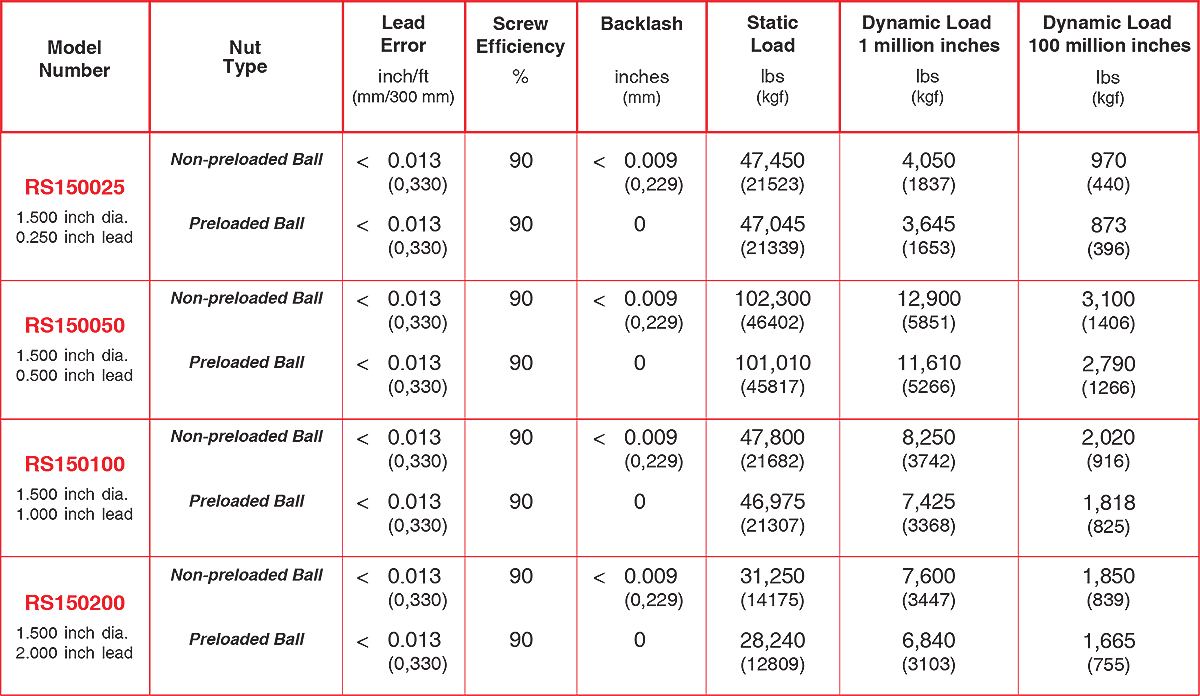

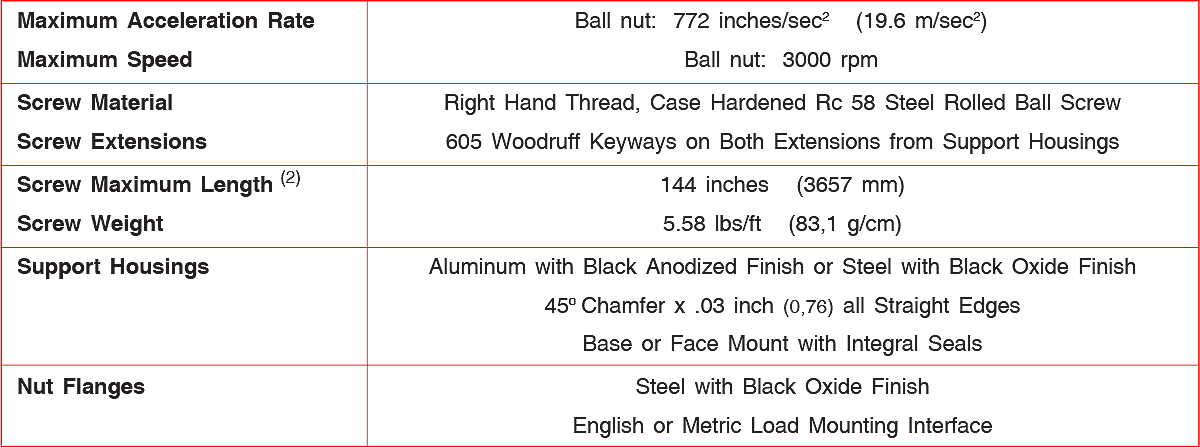

Product  Overview
Model Number: RS150  series
Key Feature: Complete ball screw assembly
with end supports
Screw Style: Rolled
Screw Diameter: 1.500 inch
Screw Lengths: up to 134 inches
Screw Leads: 0.250, 0.500, 1.000 & 2.000 inch
Lead Error: < 0.013 inches / ft
End Supports: Simple-Simple, Fixed-Simple,
Rigid-Simple, Rigid-Rigid
Mounting: English & Metric
Delivery: 1 to 3 weeks
Get a Price            Get a CAD File
RS150 series Ball Screw Positioning System
RS150 Ball Screw Positioning System
The RS series of ball screw assemblies are designed to maximize performance, while providing design flexiblity. These assemblies utilize a rolled ball screw with preloaded or non-preloaded nuts. These steel ball screws are provided with precision machined steel supports for end bearing housings. The support housings are available in three styles (simple, fixed, and rigid). The fixed and rigid housings have precision machined shoulders that allow for a NEMA motor mount to be factory or field installed. Ball screw assemblies when used with ball nuts offer high efficiencies and long life, at an economical price. These ball screw assemblies are typically used when a complete positioning system is too costly, or does not fit the users exact positioning system requirements. When combined with linear bearings & rails, a custom positioning system can be created. These ball screw positioning components are designed to allow for numerous options: rotary encoders, different diameter and lead combinations, solid Turcite nuts, power-off electric brakes, and motor wrap package
PDF  File  Down  Loads
                 RS150  Technical Information            Design Section Ball Screws
                 Complete Ball Screw Catalog            Options   RS150  Section
              Service Manual
