Products  -   LBOA  series   Open Inch Precision Steel Ball Bushing

LBOA Precision Steel Ball Bushing Open Inch Series

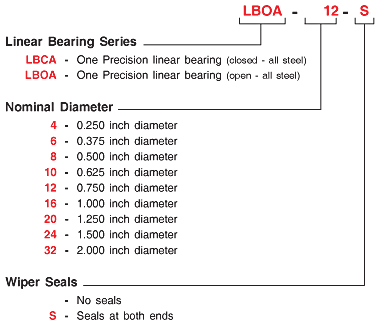

Part Number and Specs

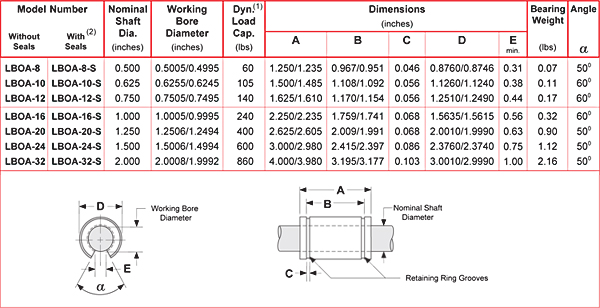

Dimensions
Polar Chart Load Capacity

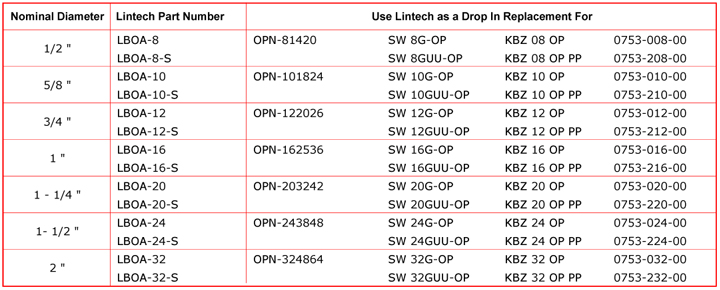

Drop In Replacement for
Round Rail Bearings
Complete Round Rail Catalog
Product  Overview
Model Number: LBOA  series
Key Feature: Open Inch Series
Type: Precision Steel Ball Bushing
Load Capacity: 60 to 860 lbs
Shaft Diameters: 0.500 to 2.000 inches
Bearing Type: Recirculating Linear Round Rail Bearing
Works With: SS  shafting
Delivery: Stock
Get a Price            Get a CAD File
LBOA series Open Inch Precision Steel Ball Bushing

Precision Steel Ball Bushing Information:

The LBOA series is an all steel open style, Ince series, recirculating round rail linear bearing. These bearings are used in lower load applications where self alignment is not required. The all steel construction allows for smooth operation in high temperature applications. These bearings are typically used with the Lintech SS series precision linear shafts.

Recirculating Linear Round Rail Bearing Products:

Lintech carries a large inventory of these products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. Please Contact us today with your needs.
PDF  File  Down  Loads
                   LBOA  Technical Information              Design Section Components
                   Entire Components Catalog              Components Service Manual
