Products  -   250  series   Screw Driven Linear Translation Table

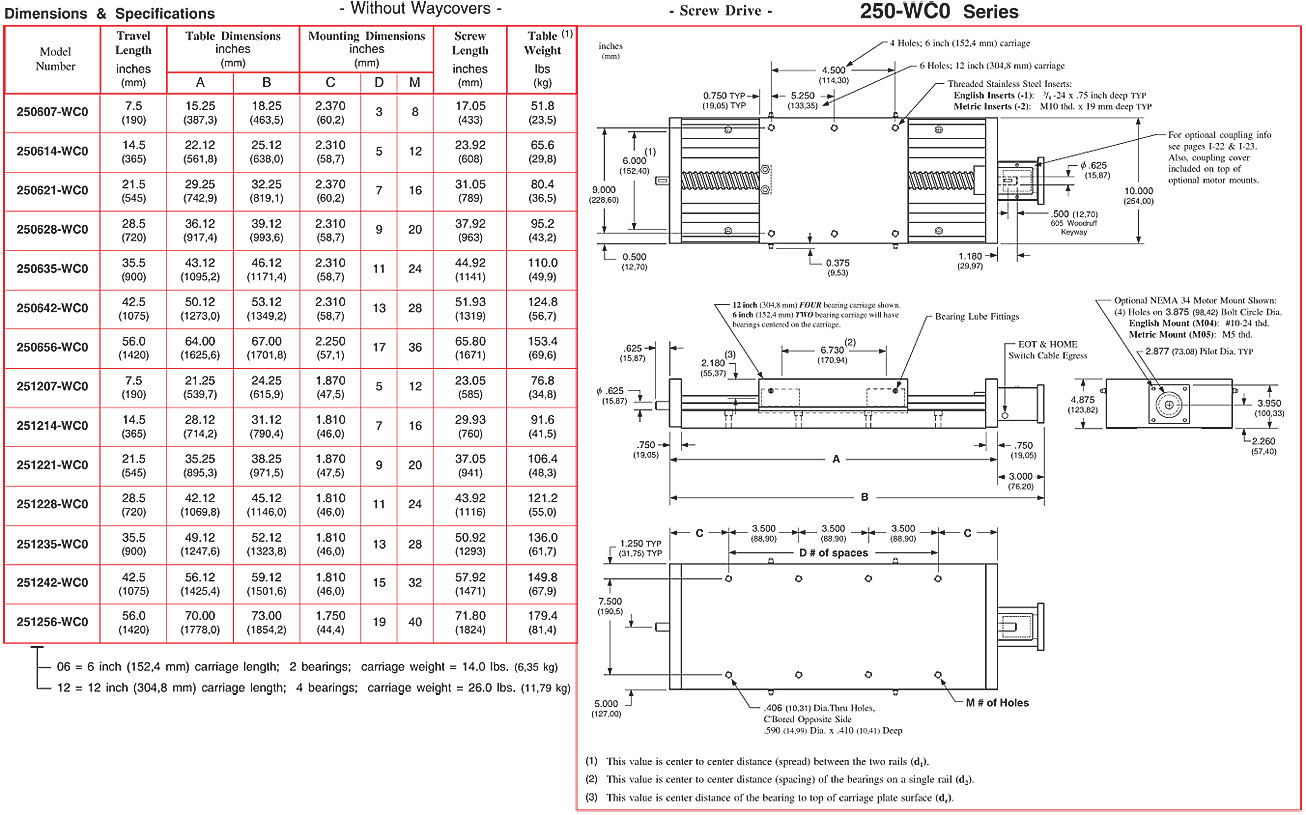

250 Screw Driven Linear Translation Table

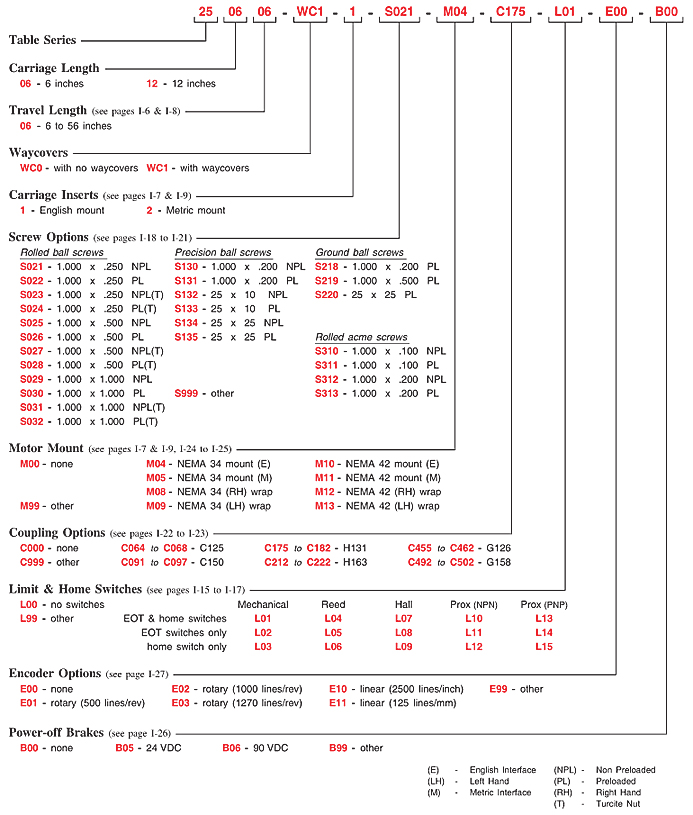

Part Number

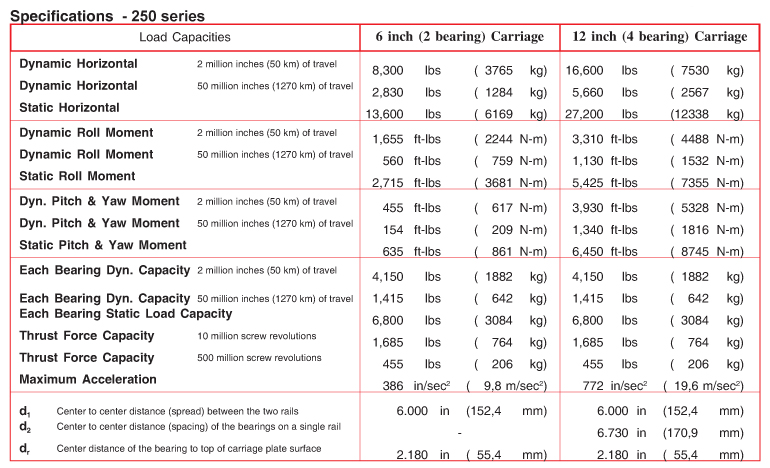

Load Capacities
(Dimensions)
WC0
WC1
Product  Overview
Model Number: 250  series
Key Feature: Low Height with a Large Load
Capacity Linear Translation Table
Linear Bearing: Square Rail Linear Guide
Drive Type: Acme Screw or Ball Screw
Height: 4.875 in (124 mm)
Width: 10.000 in (254 mm)
Load Capacity: 16,600 lbs (7530 kg)
Travel Range: 6 to 60 in (150 to 1520 mm)
Top Speed: < 50 in/sec (1270 mm/sec)
Mounting: English or Metric
Delivery: 2 to 4 weeks
Get a Price            Get a CAD File
250 series Screw Driven Linear Translation Table

Acme Screw or Ball Screw Driven Linear Motion:

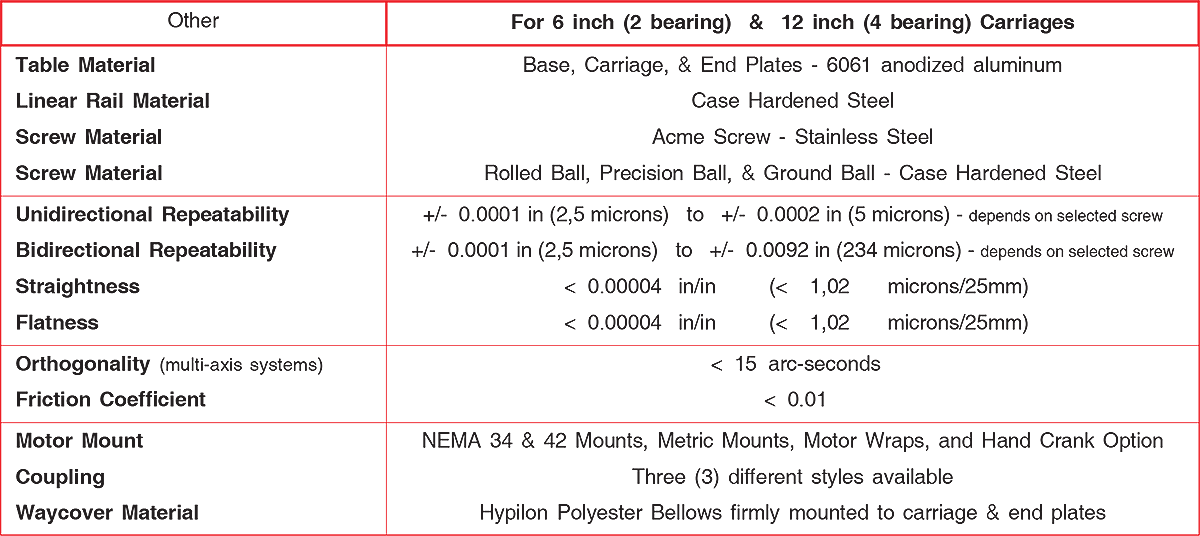

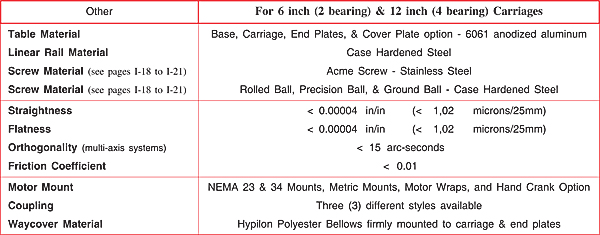

The Lintech 250 series linear positioning translation tables are designed to maximize performance while minimizing physical size and cost. These linear positioning tables use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear profile rail guides. The linear square rails are mounted to a precision machined aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. There are 25 different acme & ball screw options that offer high efficiencies and long life at an economical price. These linear actuators are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages, and versatile mounting brackets for multiple axis applications.

Square Rail Linear Guide Positioning Systems:

Lintech has the ability to build any of its standard positioning systems in 2 to 3 weeks. If a quicker delivery is required, based on the raw materials required and our assembly back log, a delivery of less than 1 week can be obtain with an expedite fee. Please Contact us today with your needs.
PDF  File  Down  Loads
                   250  Technical Information              Design Section Systems
                   Complete  250  Section              Custom Systems
                   Complete Systems Catalog              Systems Service Manual
