Products - 140 series Belt Driven Linear Actuators |
|
|
|
|
 |
|
|

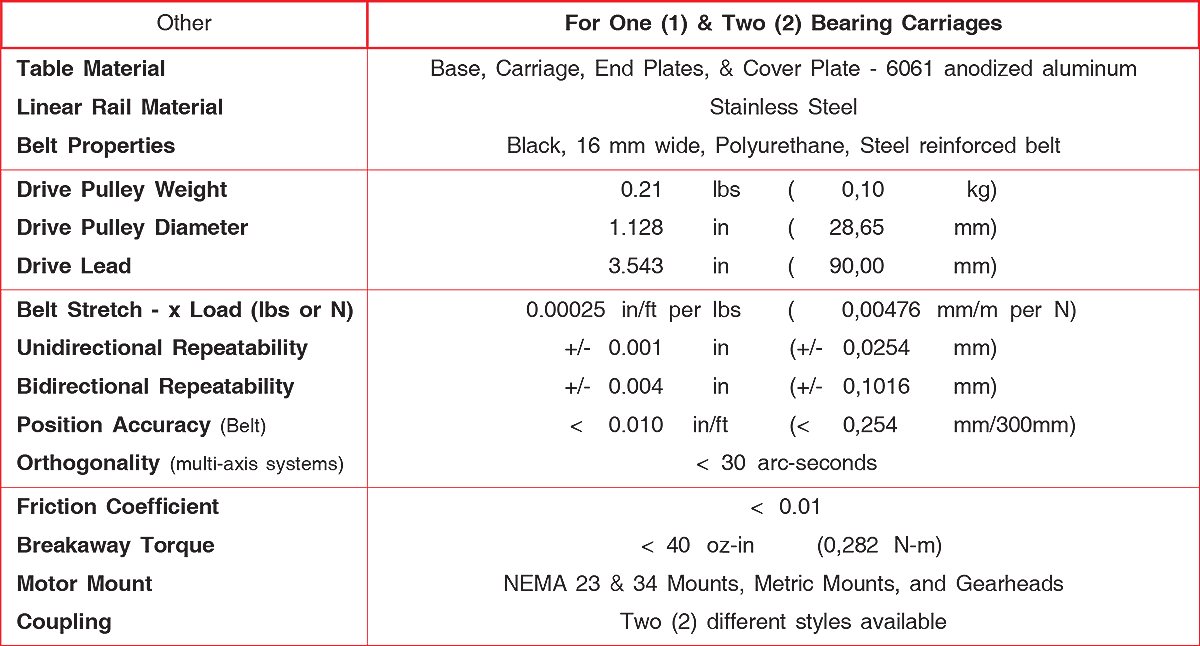

| The Lintech 140 series linear actuators are designed to handle light loads at very high speeds. These linear slides use a low friction, preloaded, recirculating linear
ball bearing system, which ride on a single precision ground linear square rail. The
linear profile rail is mounted to a precision machined aluminum base, which
offers a rigid support over the entire travel of the table's carriage. The
load is mounted to a precision machined aluminum carriage, which has
threaded stainless steel inserts for high strength and wear life. The
drive system uses two pulleys, along with a high strength, steel
reinforced polyurethane belt, which provides 3.543 inches (90 mm) of
linear movement per revolution of the input shaft. The simple belt
tensioning system allows for easy adjustment of belt tension by the user.
NEMA 23 & 34 motor mounts, or gearhead mounts are available as well as
planetary gearheads. |
|
|
|
|
|
|
|
|
|
|
|
|
