Products  -   130  series   Screw Driven Linear Motorized Actuators

130 Screw Driven Linear Motorized Actuators

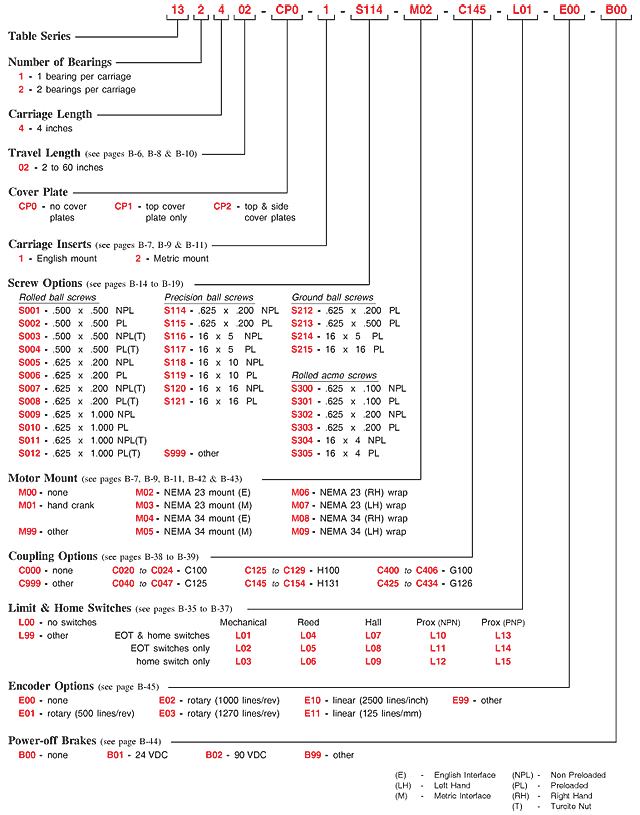

Part Number

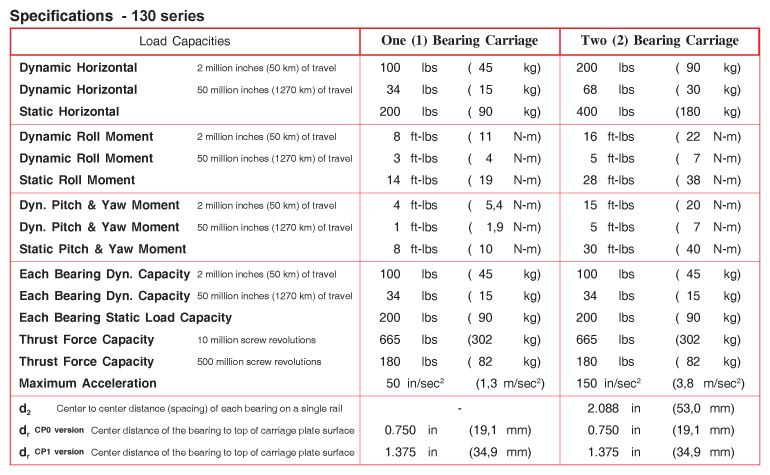

Load Capacities
(Dimensions)

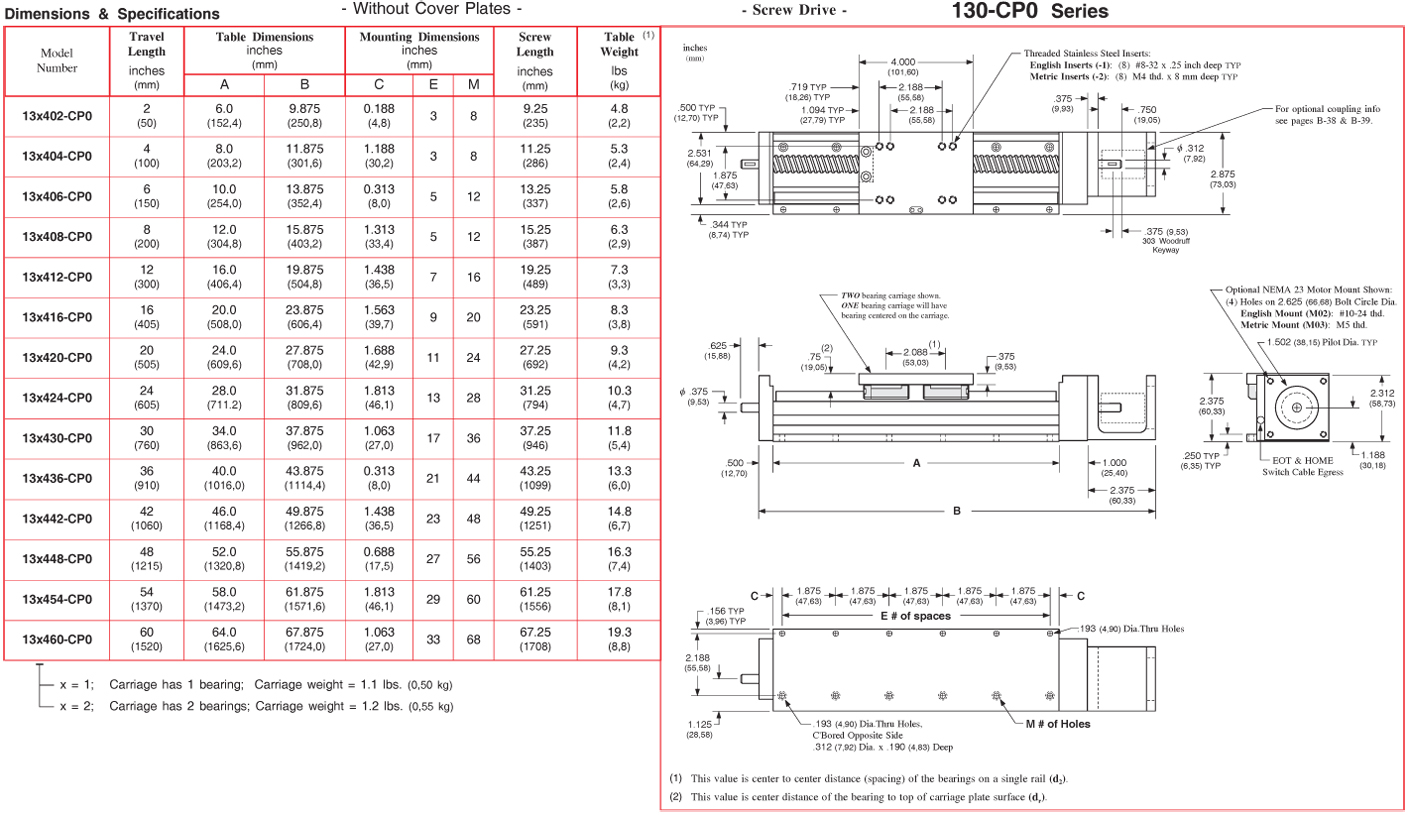

CP0

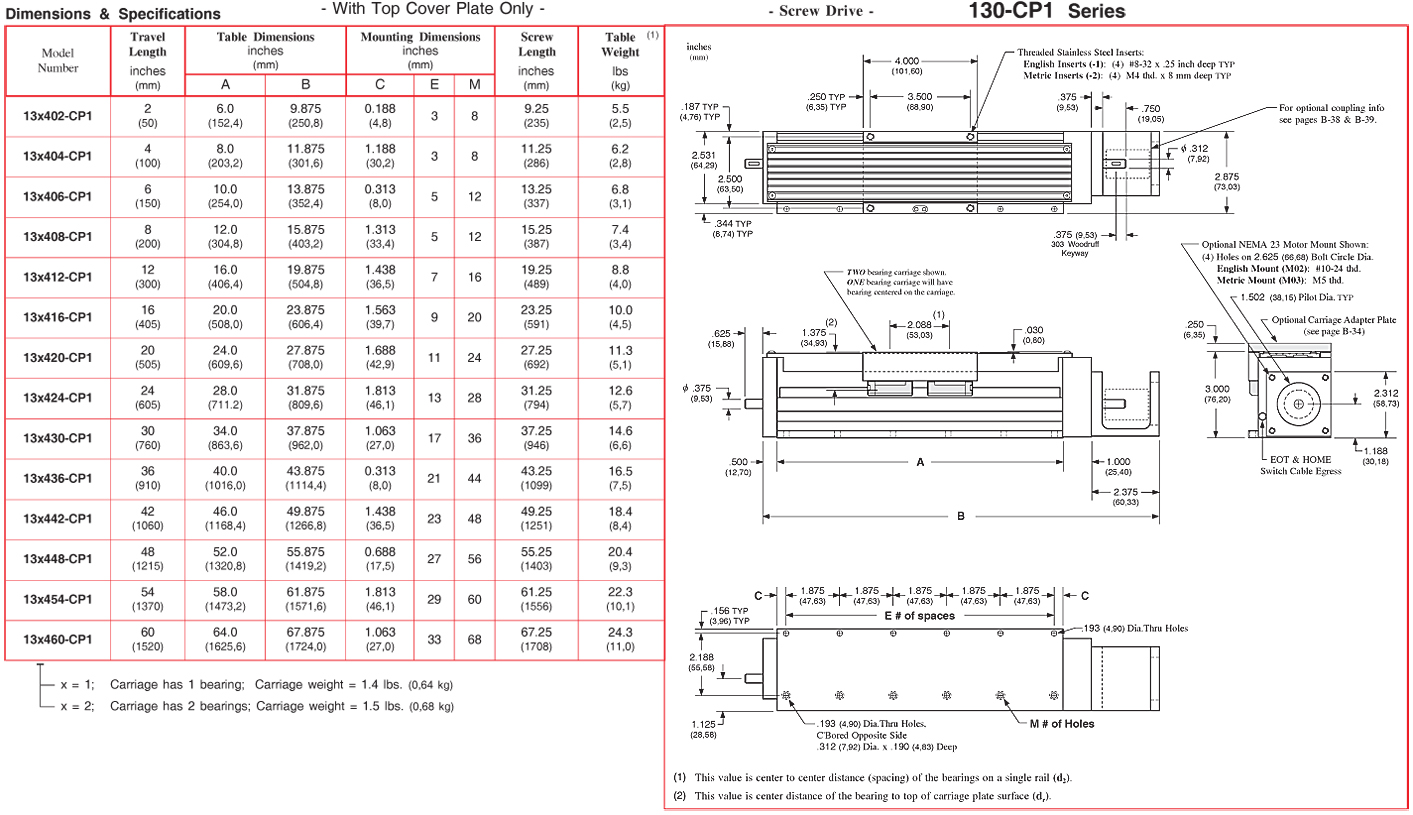

CP1

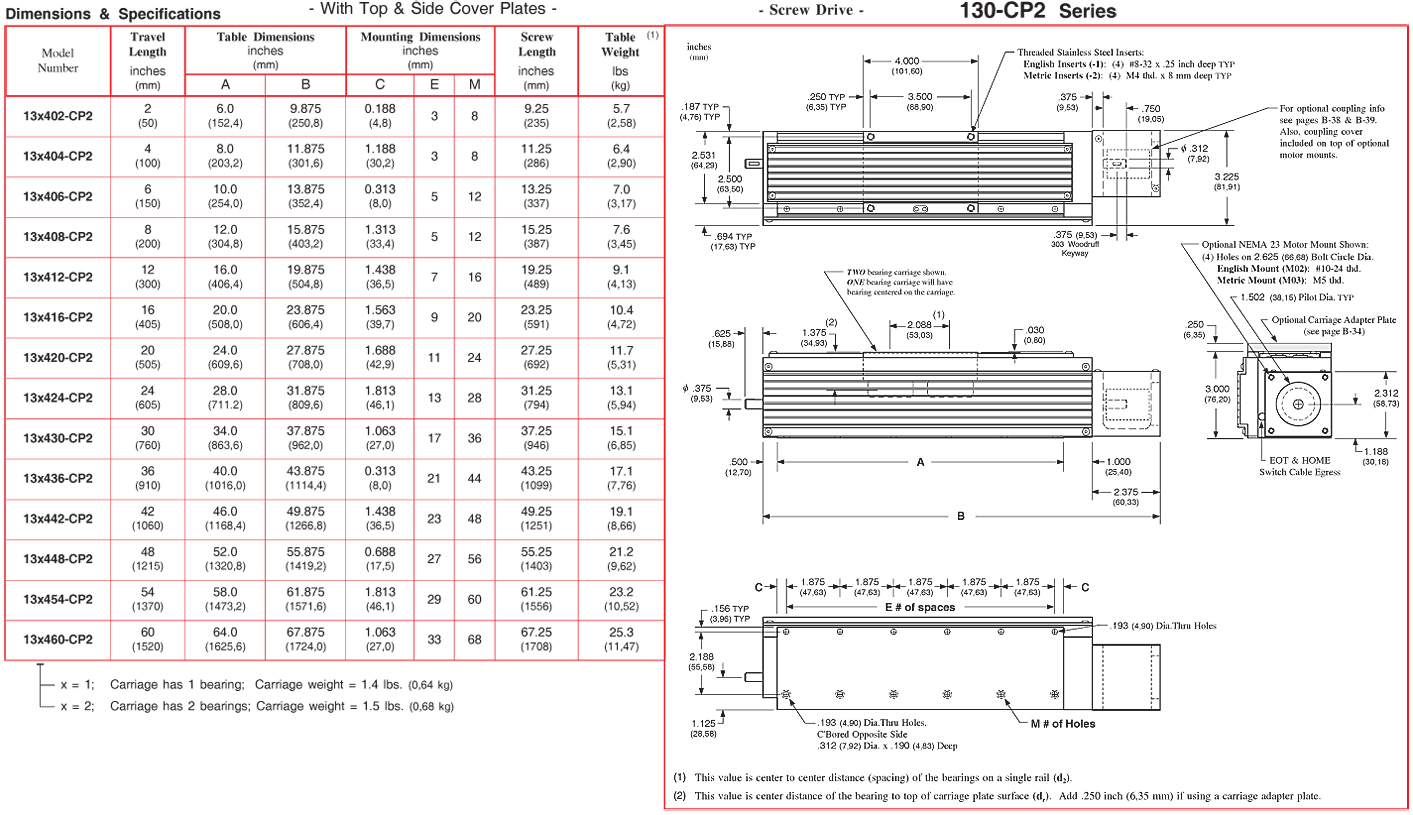

CP2
Product  Overview
Model Number: 130  series
Key Feature: Small Load Capacity & Low Cost
Linear Actuators
Linear Bearing: Square Rail Linear Guide
Drive Type: Acme Screw or Ball Screw
Height: 2.375 in (60 mm)
Width: 2.875 in (73 mm)
Load Capacity: 200 lbs (90 kg)
Travel Range: 2 to 60 in (50 to 1520 mm)
Top Speed: < 50 in/sec (1270 mm/sec)
Mounting: English or Metric
Delivery: 2 to 4 weeks
Get a Price            Get a CAD File
130 series Screw Driven Linear Motorized Actuators

Acme Screw or Ball Screw Driven Linear Motion:

The Lintech 130 series linear positioning actuators are designed to maximize performance while minimizing physical size and cost. These linear motorized actuators use a low friction, preloaded, recirculating linear ball bearing system, which rides on a single precision ground linear square rail guide. The single linear profile rail is mounted to a precision machined aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. There are 30 different acme & ball screw options that offer high efficiencies and long life at an economical price. These linear slides are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages, and versatile mounting brackets for multiple axis applications.

Square Rail Linear Guide Positioning Systems:

Lintech has the ability to build any of its standard positioning systems in 2 to 3 weeks. If a quicker delivery is required, based on the raw materials required and our assembly back log, a delivery of less than 1 week can be obtain with an expedite fee. Please Contact us today with your needs.
PDF  File  Down  Loads
                   130  Technical Information              Design Section Systems
                   Complete  130  Section              Custom Systems
                   Complete Systems Catalog              Systems Service Manual
