Products  -   HRC  series   Square Rail Linear Guide

HRC series Square Rail Linear Guide
Part Number
Load Capacity
Accuracy Specs
Preload Specs
Product  Overview
Model Number: HRC  series
Bearing Type: Square Rail Linear Guide
Key Feature: Heavy Square Rail Linear Guides
Sizes: 15, 20, 25, 30, 35, 45
Number of Rows: 4 rows of re-circulating balls
Load Capacity: From 12.5 to 112.8 kN
Material: Alloy Steel bearing, rail & balls
Delivery: Stock
Get a Price            Get a CAD File

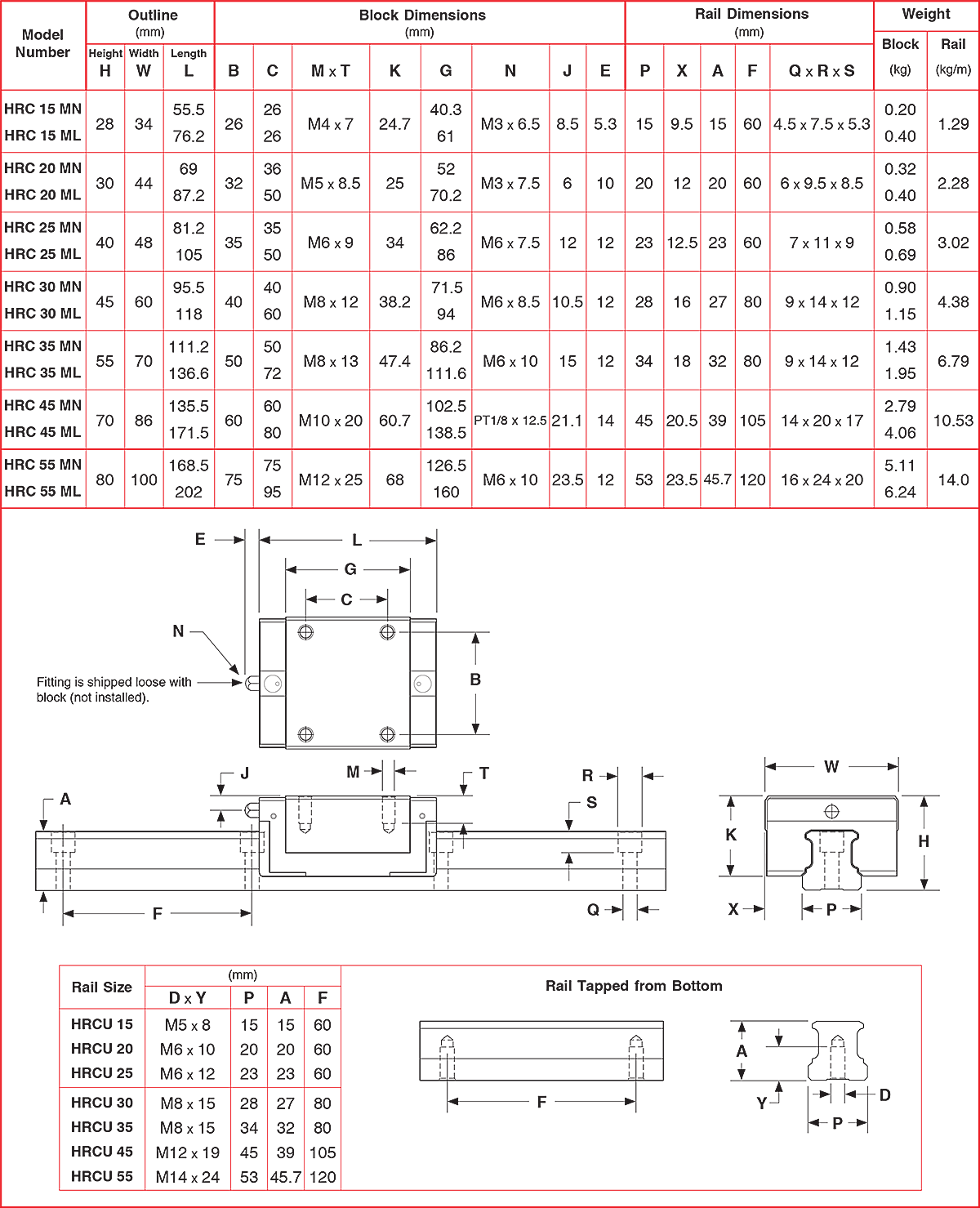

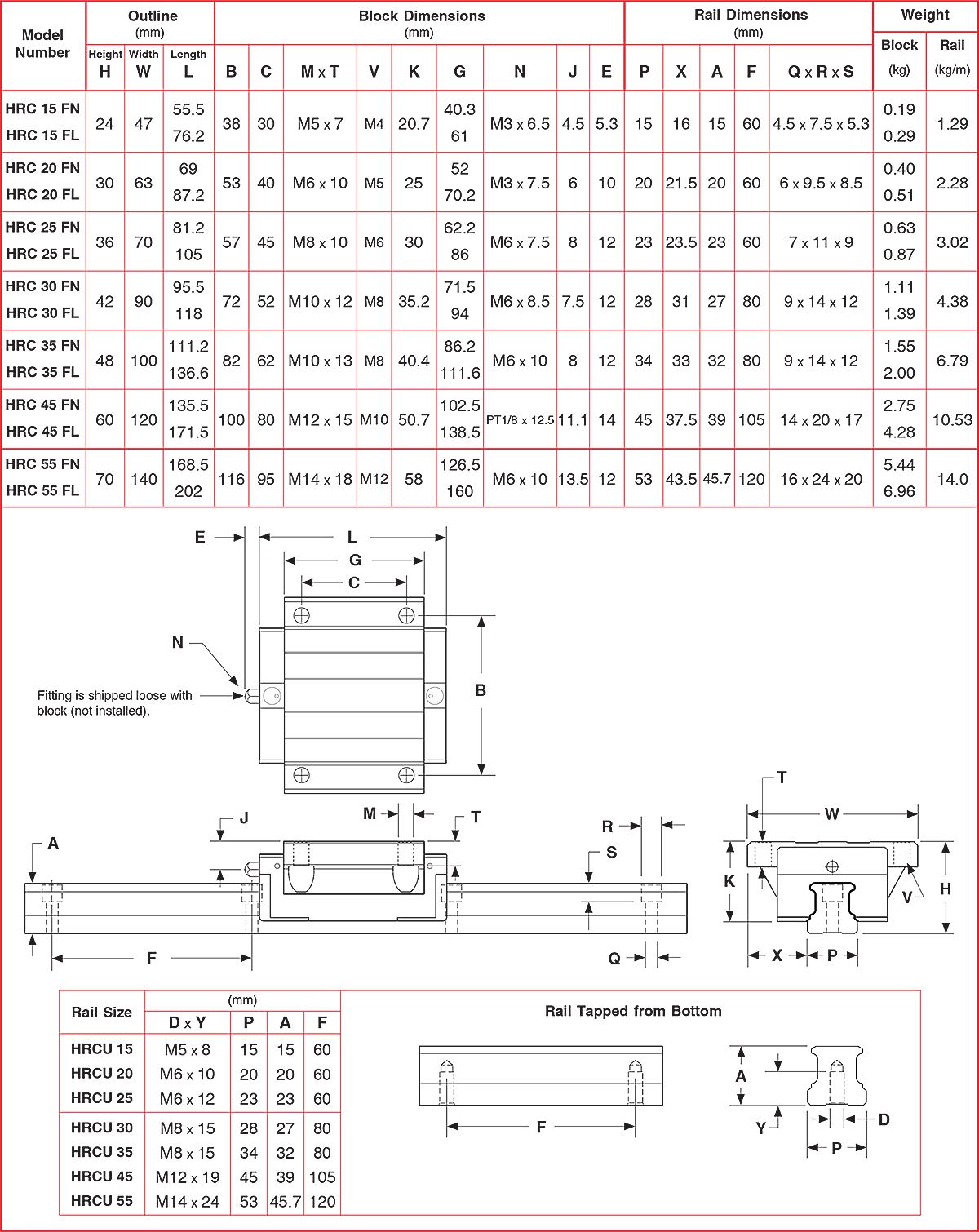

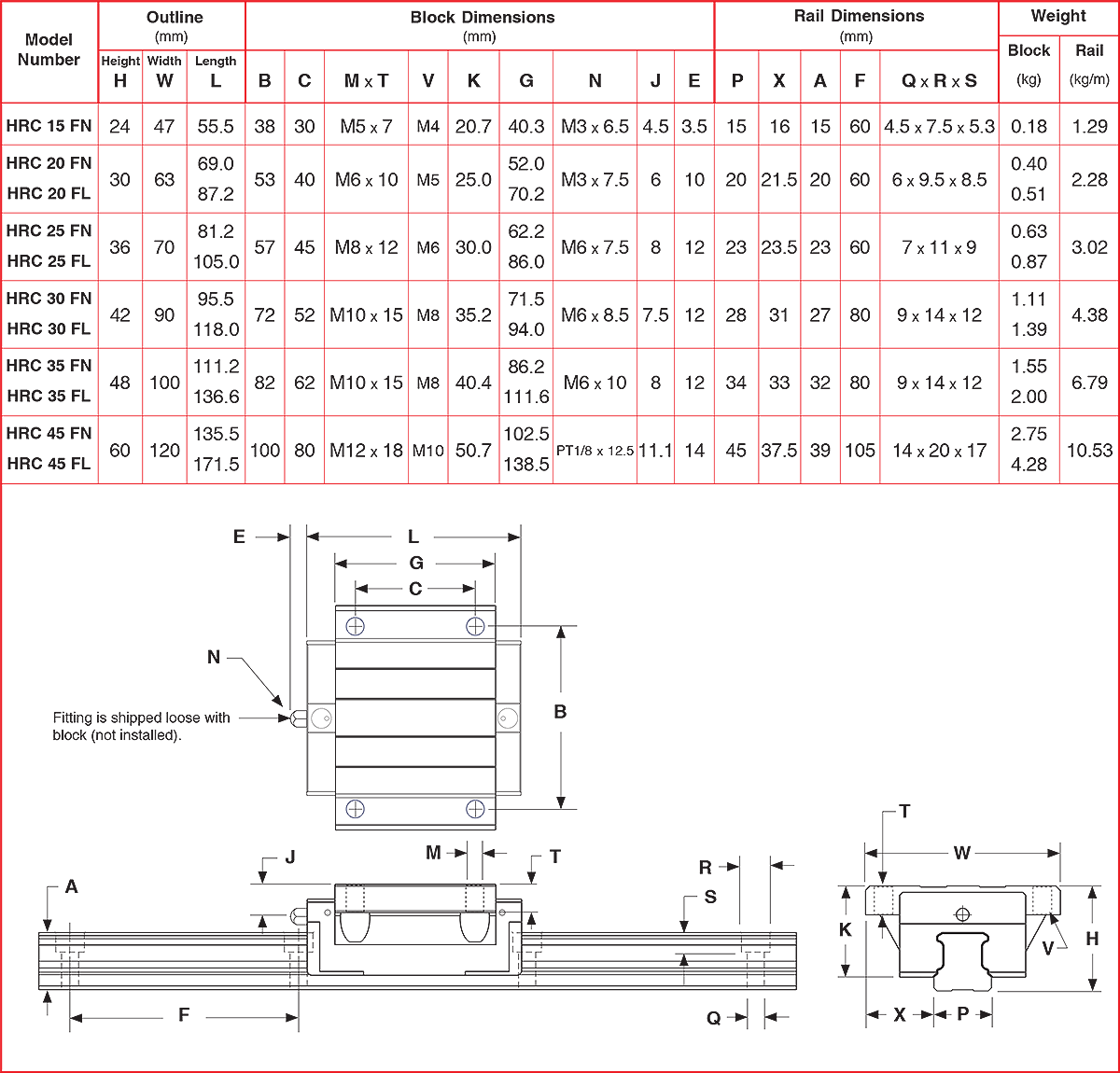

Standard Block Dimensions                 Flanged Block Dimensions
HRC Linear Motion Guides
HRC Profile Square Rail

Square Rail Linear Guide Infomation:

The HRC series is a high capacity 4 row re-circulating square rail linear bearing guide. These square rail linear LM guides have the block and rail made of alloy steel and has seals on both ends of the block. There is also an option for a self, or long, lube block, along with a reenforced block seal that allows for the block to obtain higher speeds. Three different accuracy grades are available, N grade, H grade, and P grade. The blocks are available in either a normal or long length, along with a normal or wide version block. Theses different sizes allow for different block load capacities and mounting options.

Linear Guide Products:

Lintech carries a large inventory of linear guide products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. We can cut to any length required, can machine custom mounting holes or ends, and can provide various plating options in order to create a more robust environment ready product. Please Contact us today with your needs.
PDF  File  Down  Loads
           ARC / HRC Profile Rail Catalog            Components Service Manual
           High Speed Linear Guide Report

           High Speed Linear Guide Video
           Saw Dust Environment Report
