Products  -   WRC  series   Square Rail Linear Guide

WRC series Wide Profile Linear Guide
Part Number
Load Capacity
Accuracy Specs
Preload Specs
Complete Profile Rail Catalog
Product  Overview
Model Number: WRC  series
Bearing Type: Profile Rail Linear Guide
Key Feature: Wide Profile Rail
Sizes: 21/15, 27/20
Number of Rows: 4 rows of re-circulating balls
Load Capacity: From 12.5 to 28.1 kN
Material: Alloy Steel bearing, rail & balls
Delivery: Stock
Get a Price            Get a CAD File

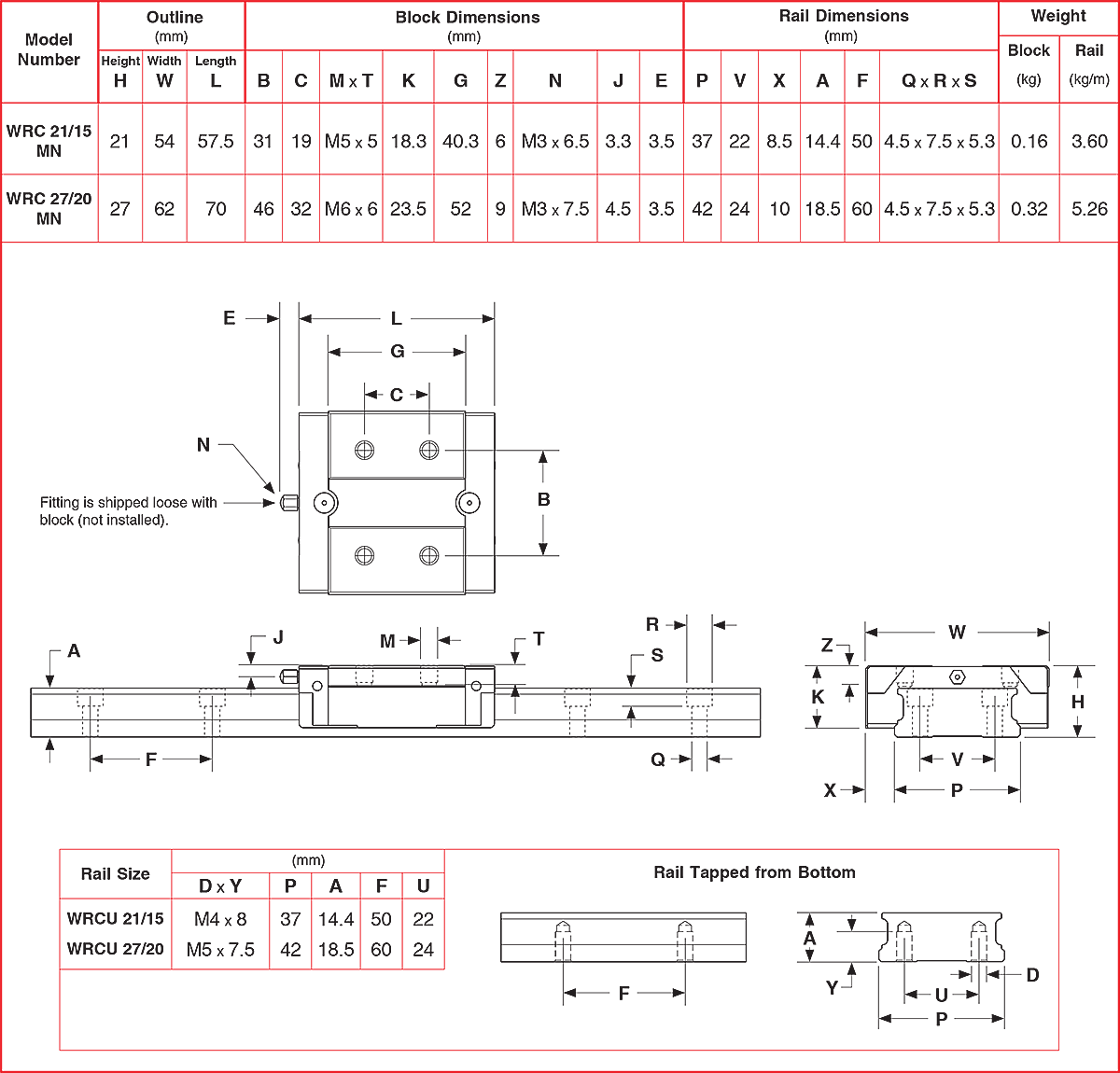

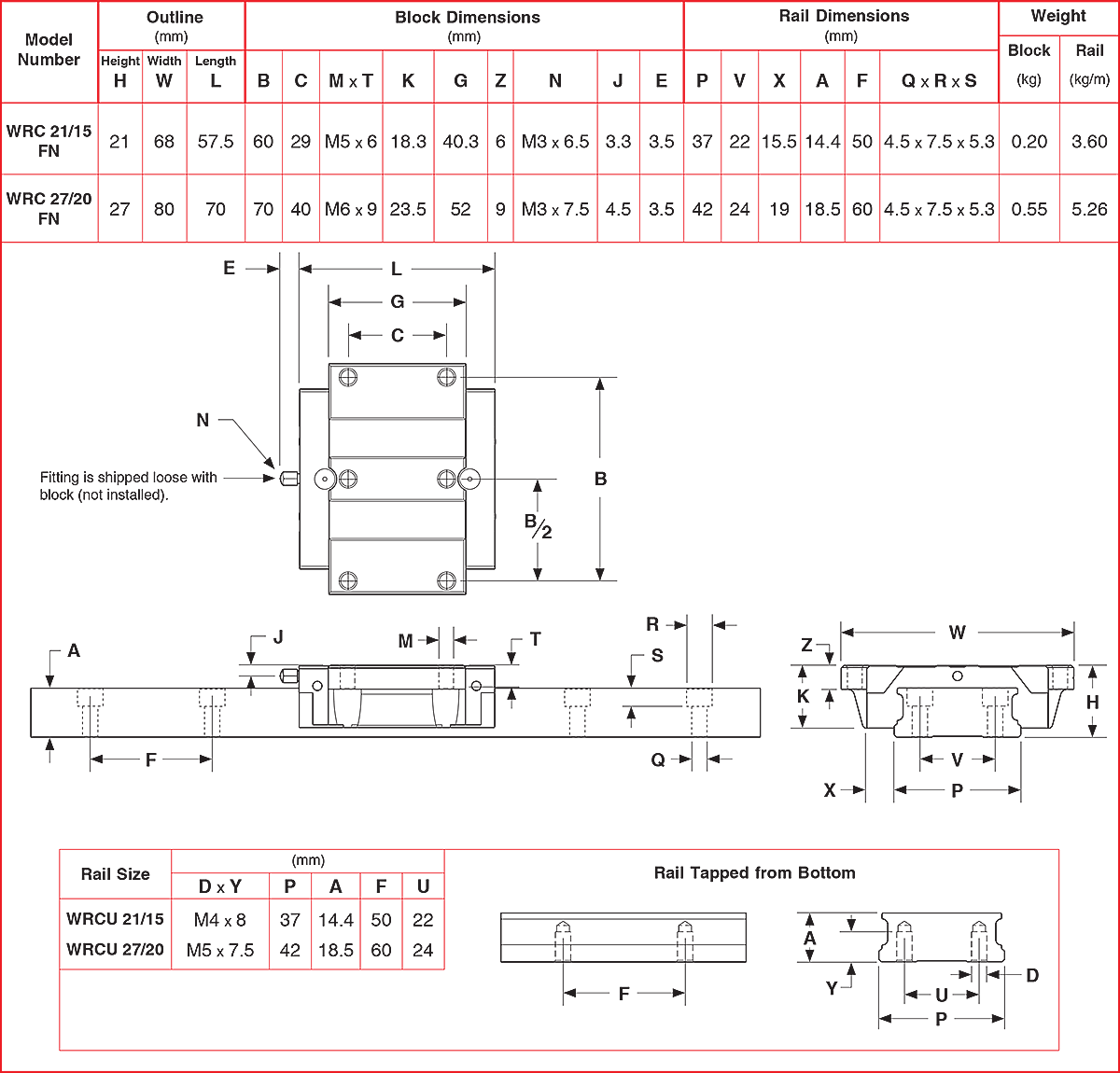

Standard Block Dimensions                 Flanged Block Dimensions
WRC Linear Motion Guides
WRC Profile Square Rail

Profile Rail Linear Guide Information:

Linear Guide Products:

Lintech carries a large inventory of linear guide products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. We can cut to any length required, can machine custom mounting holes or ends, and can provide various plating options in order to create a more robust environment ready product. Please Contact us today with your needs.
PDF  File  Down  Loads
           Profile Rail Linear Guide Catalog            Components Service Manual
           High Speed Linear Guide Report

           High Speed Linear Guide Video
           Saw Dust Environment Report
