Products  -   LBCA  series   Closed Inch Precision Steel Ball Bushing

LBCA Precision Steel Ball Bushing Closed Inch Series

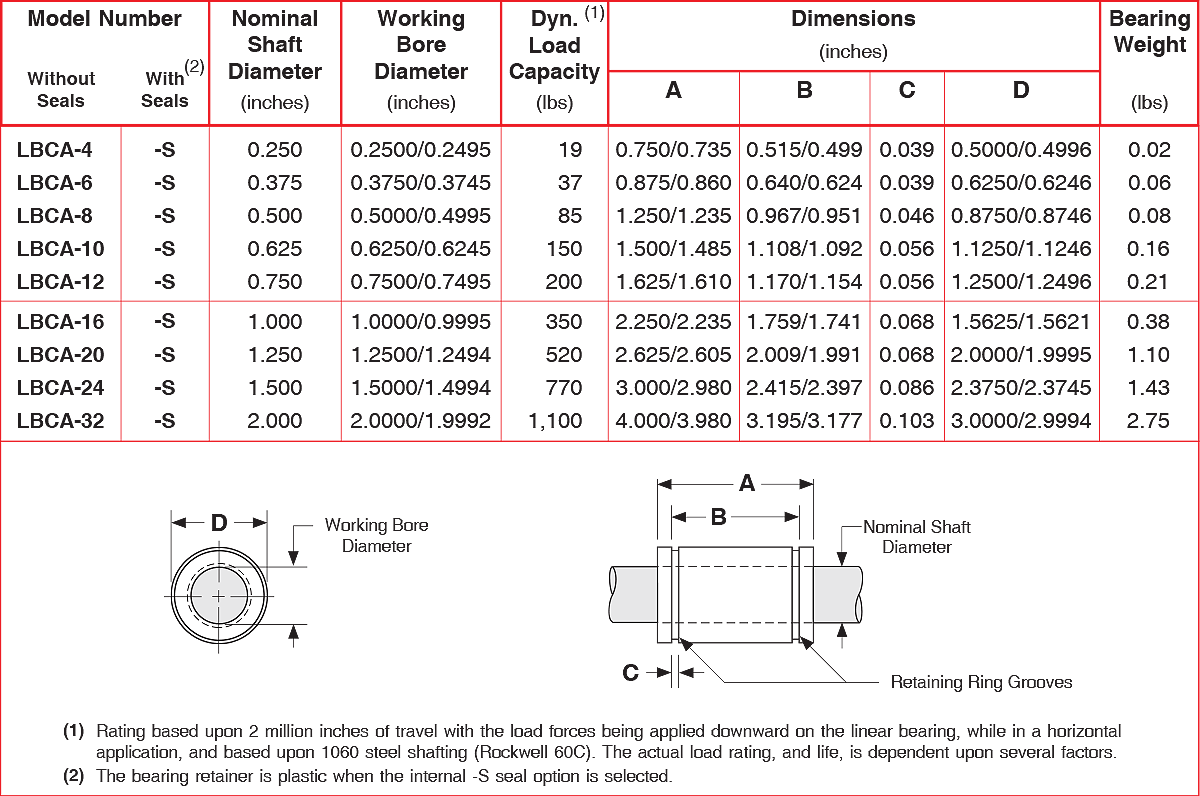

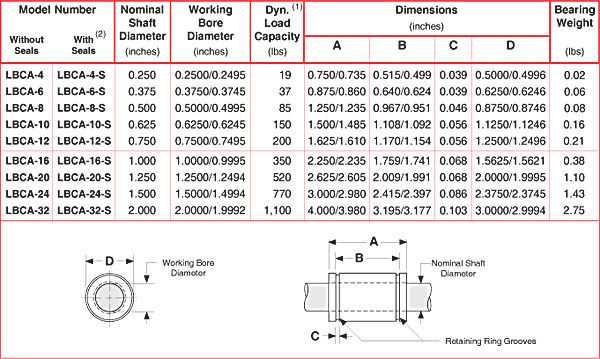

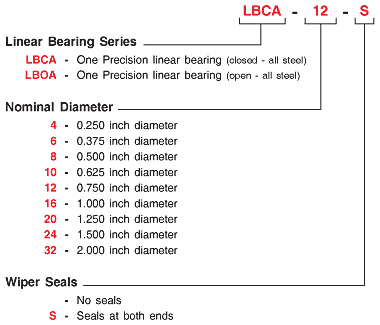

Part Number and Specs
Polar Chart Load Capacity

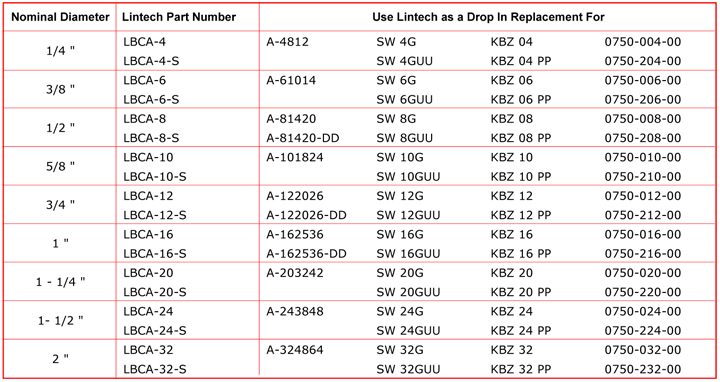

Drop In Replacement for
Round Rail Bearings
Complete Round Rail Catalog
Product  Overview
Model Number: LBCA  series
Key Feature: Closed Inch Series
Type: Precision Steel Ball Bushing
Load Capacity: 19 to 1,100 lbs
Shaft Diameters: 0.250 to 2.000 inches
Bearing Type: Recirculating Linear Round Rail Bearing
Works With: SS  shafting
Delivery: Stock
Get a Price            Get a CAD File
LBCA series Closed Inch Precision Steel Ball Bushing

Precision Steel Ball Bushing Information:

The LBCA series is an all steel, closed style, Inch series recirculating round rail linear bearing. These bearings are used in lower load applications where self alignment is not required. The all steel construction allows for smooth operation in high temperature applications. These bearings are typically used with the Lintech SS series precision linear shafts.

Recirculating Linear Round Rail Bearing Products:

Lintech carries a large inventory of these products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. Please Contact us today with your needs.
PDF  File  Down  Loads
                   LBCA  Technical Information              Design Section Components
                   Entire Components Catalog              Components Service Manual
Product  Resources
Get a Price Get a CAD File

Lintech CAD File Header
Get a Lintech CAD drawing
Click Here
Video   View Lintech CAD Video
