Products  -   DLBC  series   Closed Dual Pillow Blocks

DLBC series Round Rail Pillow Blocks
Part Number and Specs

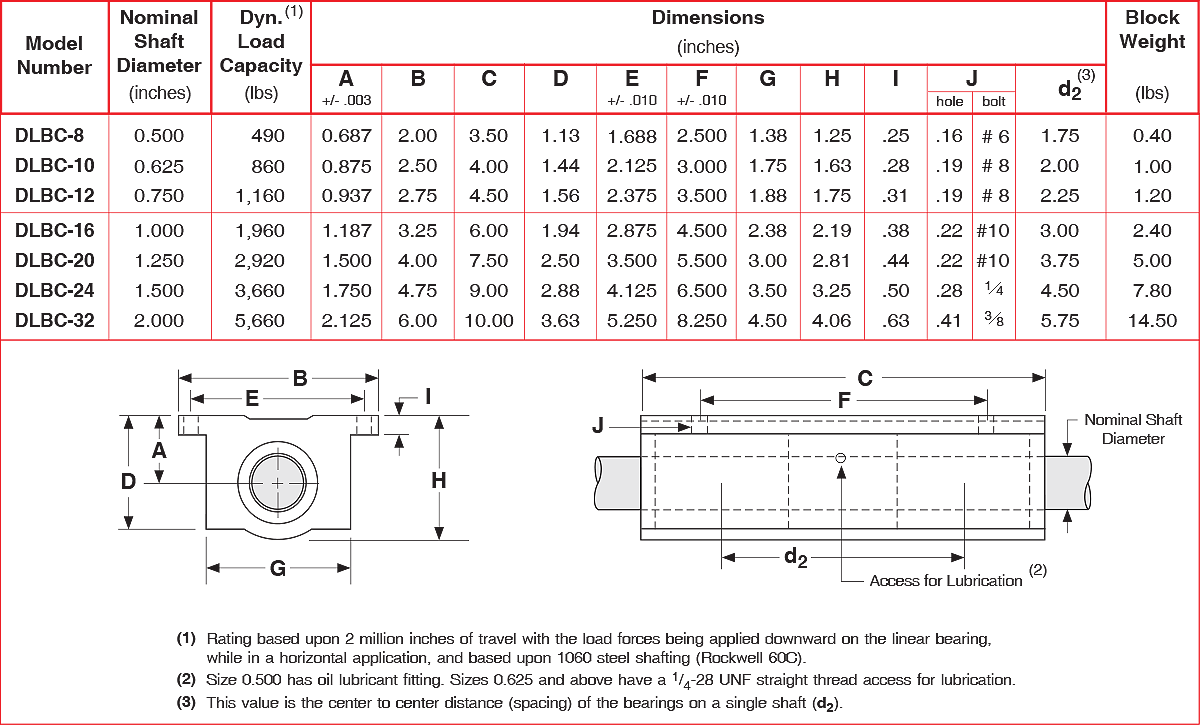

Dimensions
Hand Wheel Lock
Drop In Replacement for
Product  Overview
Model Number: DLBC  series
Key Feature: Pillow Block with 2 Closed Ball Bushings
Type: Self-Aligning Linear Ball Bushing
Load Capacity: 510 to 6,000 lbs
Shaft Diameters: 0.500 to 2.000 inches
Bearing Type: Recirculating Round Rail Linear Bearing
Works With: SL  shafting
Delivery: Stock
Get a Price            Get a CAD File
DLBC series Closed Dual Pillow Blocks

Self-Aligning Linear Ball Bushing Infomation:

The DLBC series incorporates two closed linear bearings within one aluminum pillow block, seperated by a wick that serves as an oil lubricating reservoir. The DLBO series greatly reduces installation time when compared to the mounting, and the aligning, of two SLBO series pillow blocks to a common carriage. Also, seal drag is reduced, as there are still only two wiper seals per DLBO pillow block. Each pillow block housing provides flat mounting surfaces which make the mounting, and aligning, process easy and accurate in a mechanical positioning system.

Recirculating Round Rail Linear Bearing Products:

Lintech carries a large inventory of these products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. Please Contact us today with your needs.
PDF  File  Down  Loads
                   DLBC  Technical Information              Design Section Components
                   Entire Components Catalog              Components Service Manual
