Products  -   RS050  series   Ball Screw Assembly

RS050 series Rolled Ball Screw Assembly
Part Number
Configurations / Overall Length
Nut / Flange Dimensions
Support Housing Dimensions
Entire - RS050 - Section
Entire Ball Screw Catalog

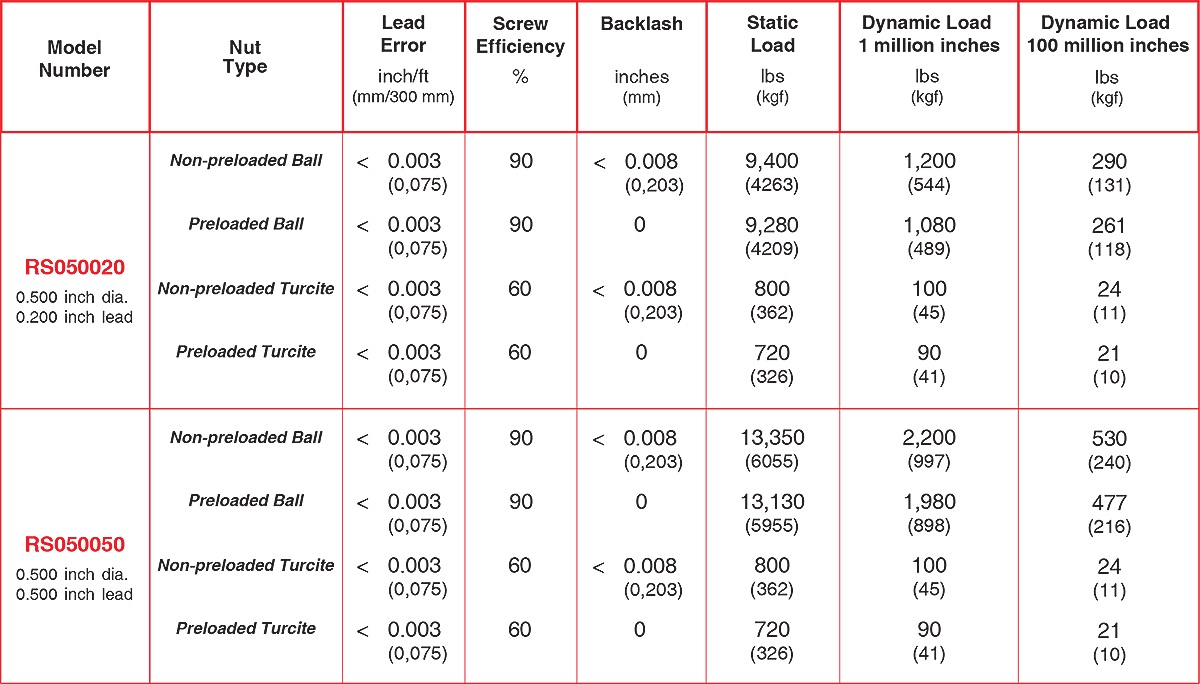

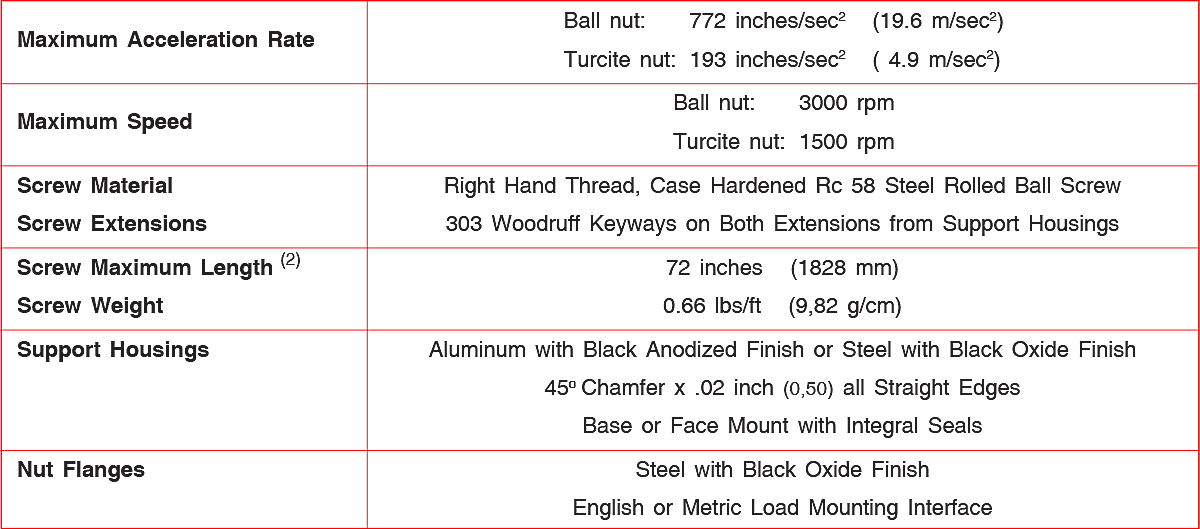

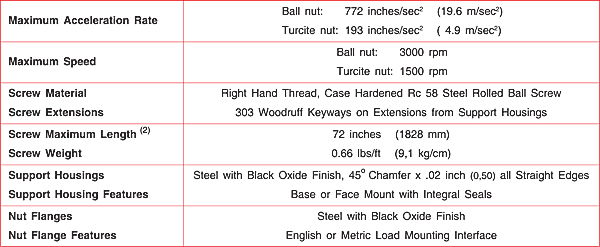

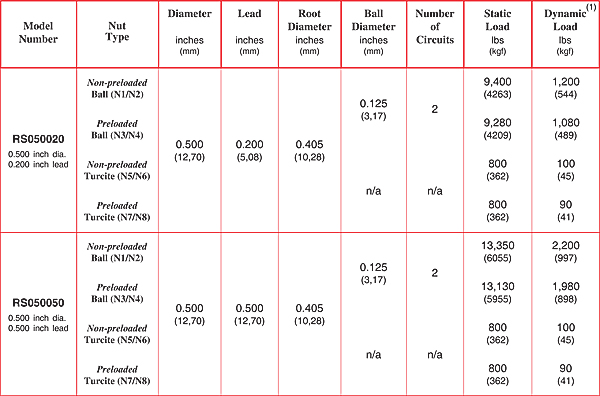

Product  Overview
Model Number: RS050  series
Key Feature: Complete ball screw assembly
with end supports
Screw Style: Rolled
Screw Diameter: 0.500 inch
Screw Lengths: up to 68 inches
Screw Leads: 0.200 & 0.500 inch
Lead Error: < 0.003 inches / ft
End Supports: Simple-Simple, Fixed-Simple,
Rigid-Simple, Rigid-Rigid
Support Material: Aluminum or Steel
Mounting: English or Metric
Delivery: 1 to 3 weeks
Get a Price            Get a CAD File
RS050 series Ball Screw Assembly
RS050 Ball Screw Assembly
The RS series of ball screw assemblies are designed to maximize performance, while providing design flexiblity. These assemblies utilize a rolled ball screw with preloaded or non-preloaded nuts. These steel ball screws are provided with precision machined steel supports for end bearing housings. The support housings are available in three styles (simple, fixed, and rigid). The fixed and rigid housings have precision machined shoulders that allow for a NEMA motor mount to be factory or field installed. Ball screw assemblies when used with ball nuts offer high efficiencies and long life, at an economical price. These ball screw assemblies are typically used when a complete positioning system is too costly, or does not fit the users exact positioning system requirements. When combined with linear bearings & rails, a custom positioning system can be created. These ball screw positioning components are designed to allow for numerous options: rotary encoders, different diameter and lead combinations, solid Turcite nuts, power-off electric brakes, and motor wrap package
PDF  File  Down  Loads
                 RS050  Technical Information            Design Section Ball Screws
                 Complete Ball Screw Catalog            Options   RS050  Section
              Service Manual
