Products  -   MR  series   Miniature Profile Rail Linear Guides

MR series Miniature Profile Rail Linear Guide
Part Number
Load Capacity
Accuracy Specs
Preload Specs
Tapped from Bottom Rail
Block Seal Options
Complete MR series Catalog
Product  Overview
Model Number: MR  series
Bearing Type: Profile Rail Linear Guide
Key Feature: Miniature Profile Rail Linear Guides
Sizes: 2, 3, 5, 7, 9, 12, 15
Number of Rows: 2 rows of re-circulating balls
Load Capacity: From 0.24 to 8.47 kN
Material: Stainless Steel bearing, rail & balls
Delivery: Stock
Get a Price            Get a CAD File

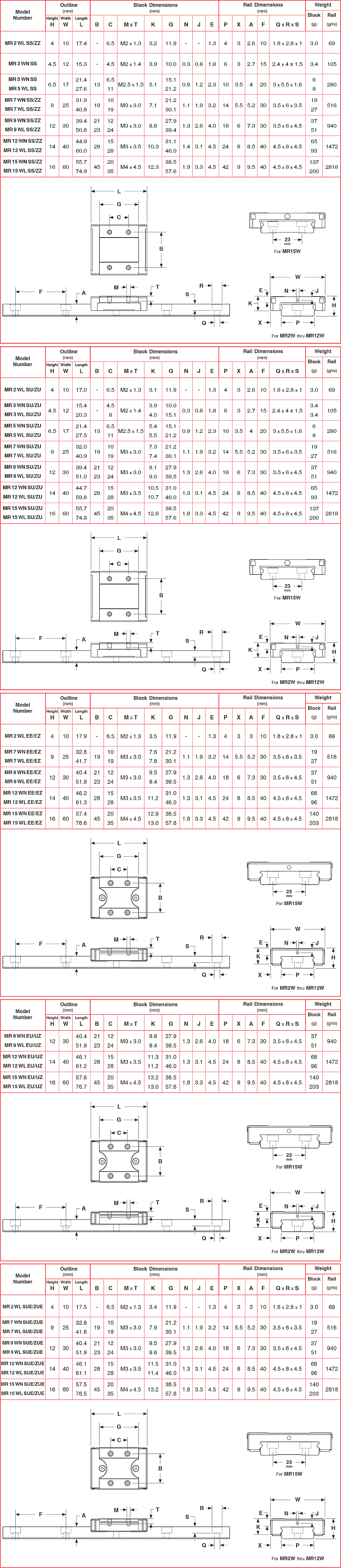

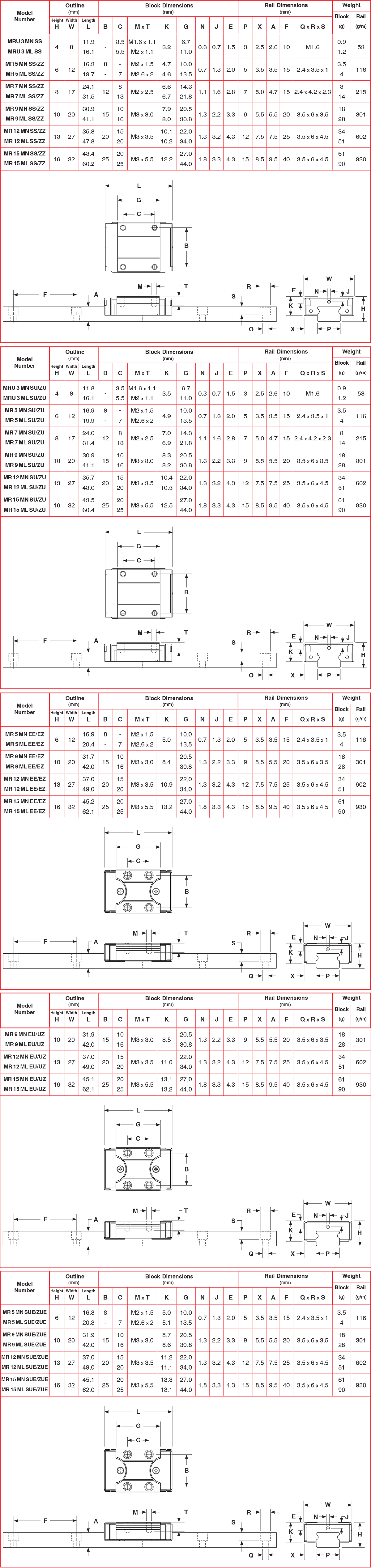

Standard Rail Width Dimensions Wide Rail Width Dimensions
SS / ZZ     SU / ZU SS / ZZ     SU / ZU

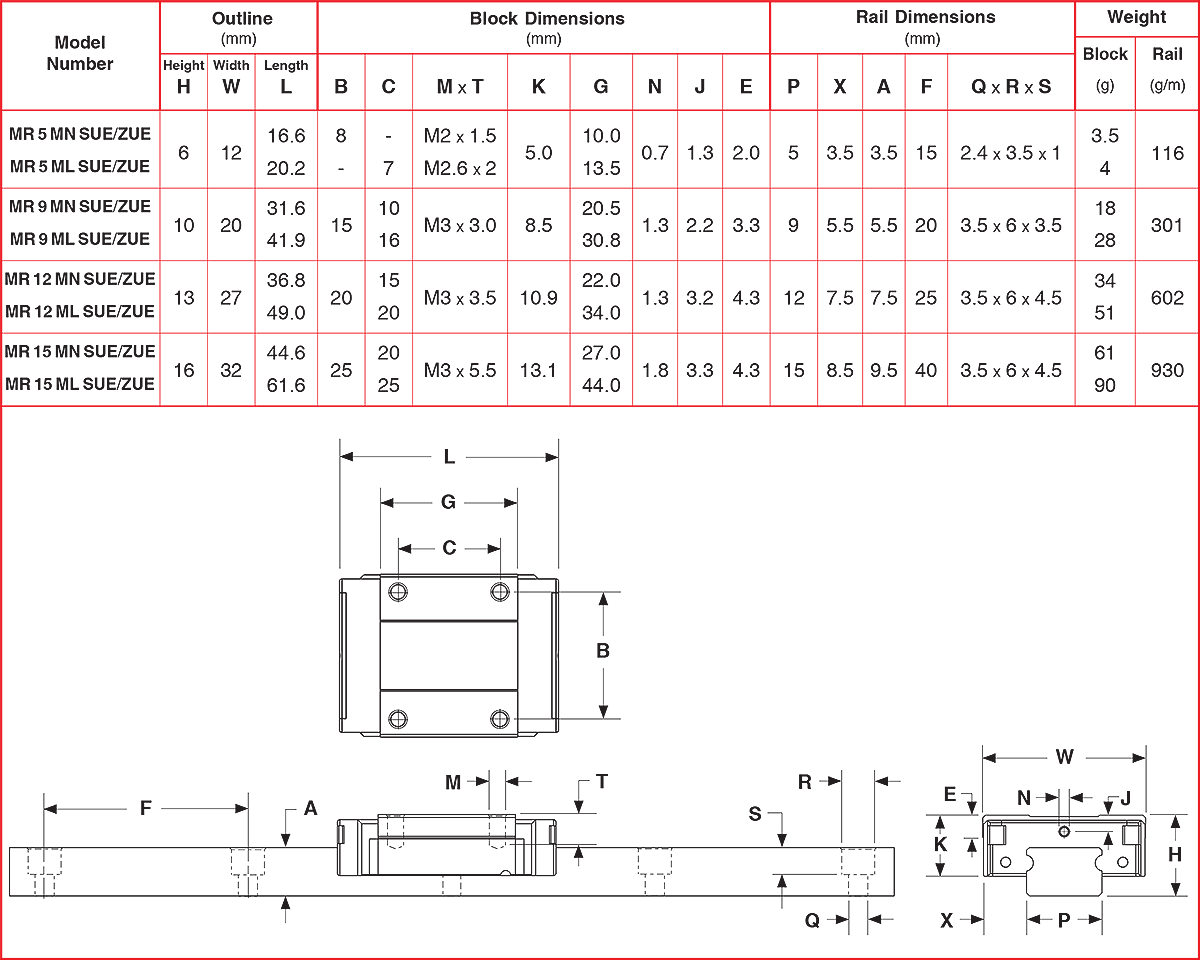

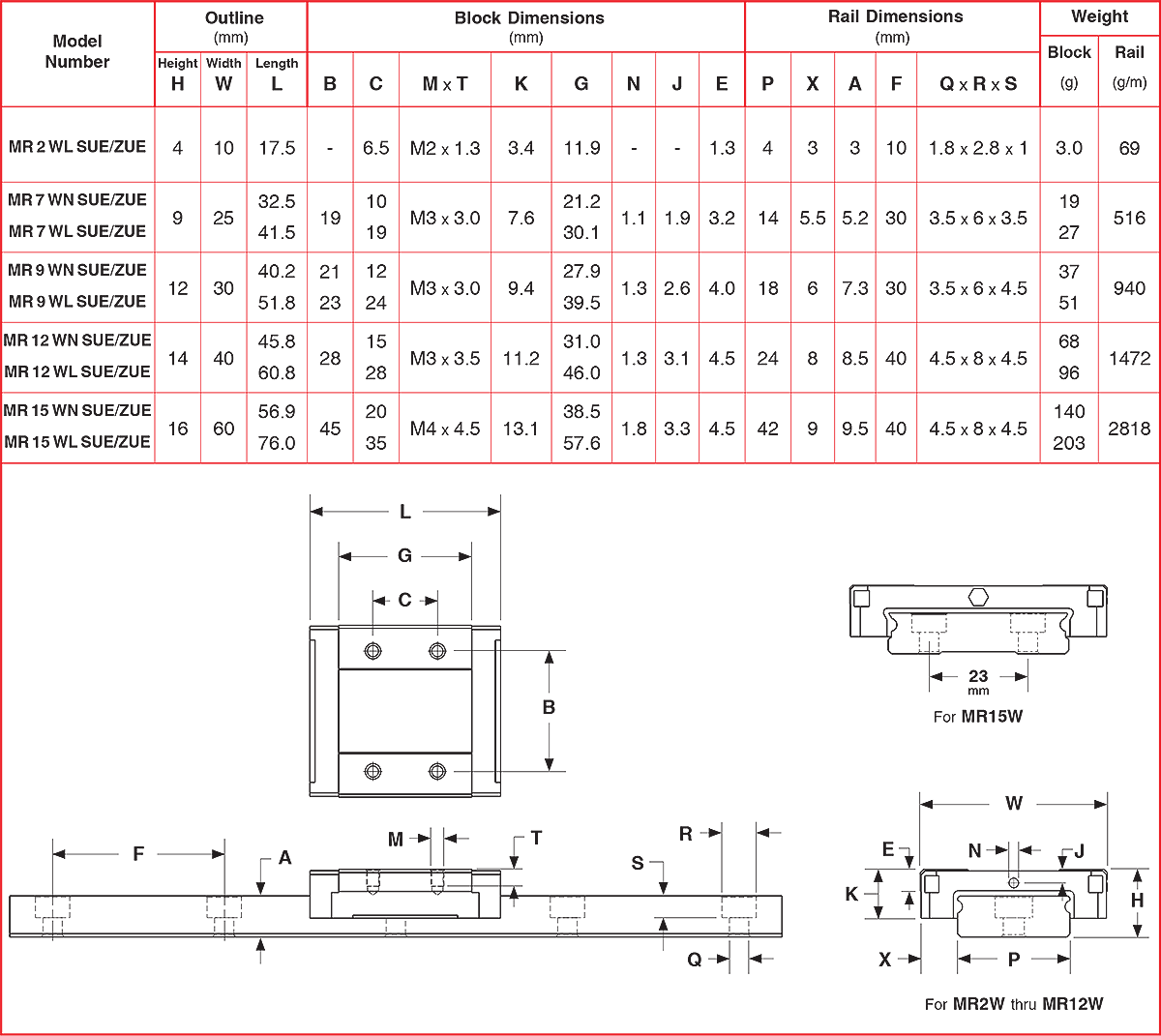

EE / EZ     EU / UZ     SUE / ZUE EE / EZ     EU / UZ     SUE / ZUE
MR Linear Motion Guides
MR Profile Miniature Square Rails

Profile Rail Linear Guide Information:

The MR series is miniature 2 row re-circulating profile rail linear guide bearing. The block and LM linear profile rail is made of 440 stainless steel and has an option for seals on both ends of the block and on the bottom of the block. There is also an option for a self, or long, lube block, along with a reenforced block seal that allows for the block to obtain higher speeds. Three different accuracy grades are available, N grade, H grade, and P grade. The blocks are available in either a normal or long length, while the rail width is available in a normal or wide version. Theses different sizes allow for different block load capacities.

Linear Guide Products:

Lintech carries a large inventory of linear guide products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. We can cut to any length required, can machine custom mounting holes or ends, and can provide various plating options in order to create a more robust environment ready product. Please Contact us today with your needs.
PDF  File  Down  Loads
           MR Profile Rail Catalog            Components Service Manual
