Products  -   LBCM  series   Closed Asian Metric Bushing

LBCM Super Self Aligning Ball Bushing Closed Metric - Asian Style

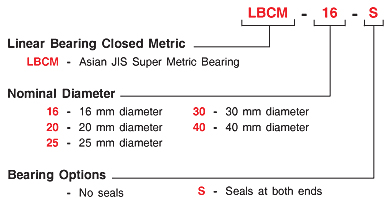

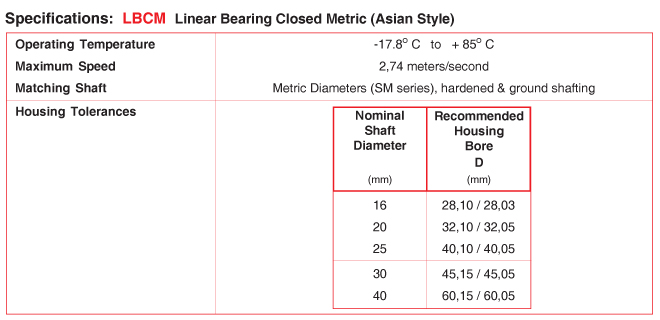

Part Number and Specs

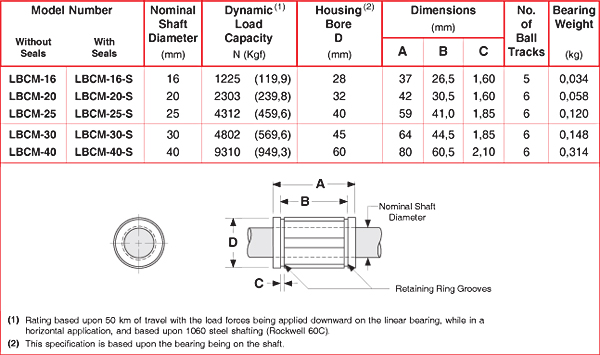

Dimensions
Polar Chart Load Capacity
Round Rail Bearings
Complete Round Rail Catalog
Product  Overview
Model Number: LBCM  series
Key Feature: Closed Metric - Asian Style
Type: Super Self Aligning Ball Bushing
Load Capacity: 1225 to 9310 N
Shaft Diameters: 16 to 40 mm
Bearing Type: Recirculating Linear Round Rail Bearing
Works With: SM  shafting
Delivery: Stock
Get a Price            Get a CAD File
LBCM series Closed Asian Metric Bushing

Super Self Aligning Ball Bushing Information:

The LBCM series is a closed style, super high load capacity, Metric - Asian series recirculating round rail super ball bushing linear bearing. These linear bearings have a ball conforming outer race coupled with a self-aligning feature which allows for zero bearing clearance while maintaining smooth operation. The independently self aligning outer bearing races insure smooth operation by absorbing miss alignment up to 1/2 degree in all directions. These bearings are typically used with the Lintech SM series precision linear shafts.

Recirculating Linear Round Rail Bearing Products:

Lintech carries a large inventory of these products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. Please Contact us today with your needs.
PDF  File  Down  Loads
                   LBCM  Technical Information              Design Section Components
                   Entire Components Catalog              Components Service Manual
