Products  -   TRCA  series   Pillow Block Carriage Assemblies

TRCA series Round Rail Pillow Block Carriage Assembly

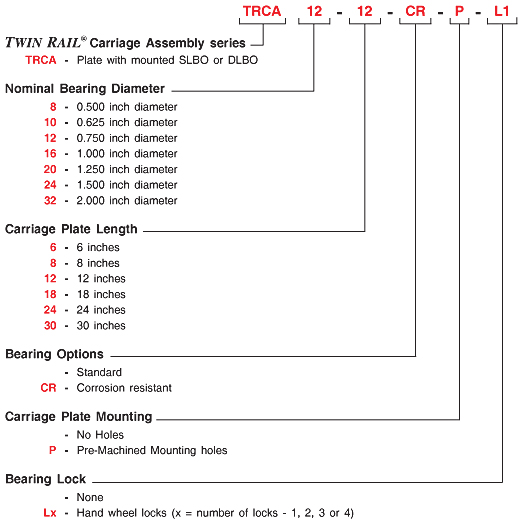

Part Number

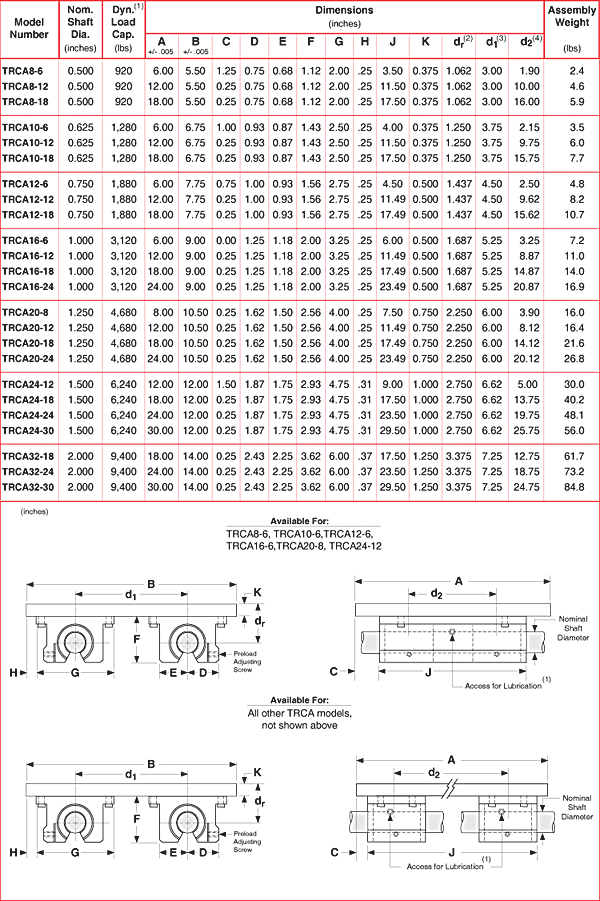

Dimensions and Specs
Hand Wheel Lock

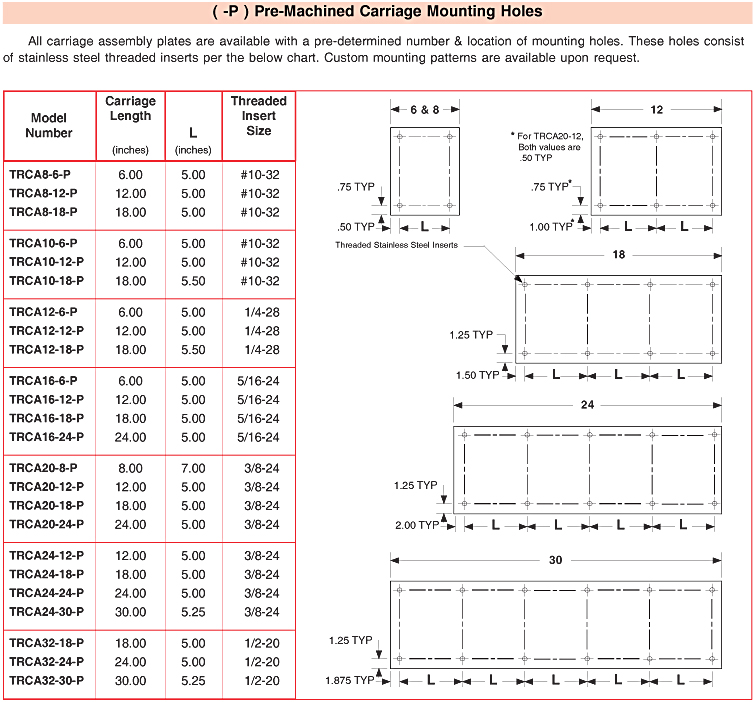

Carriage Mounting Holes
Product  Overview
Model Number: TRCA  series
Key Feature: Aluminum plate with pillow blocks
Load Capacity: 720 to 9400 lbs
Shaft Diameters: 0.500 to 2.000 inches
Bearing Type: Recirculating round rail
Matching Shaft Assembly: TRSA  shaft assembly
Delivery: 2 to 5 Days
Get a Price            Get a CAD File

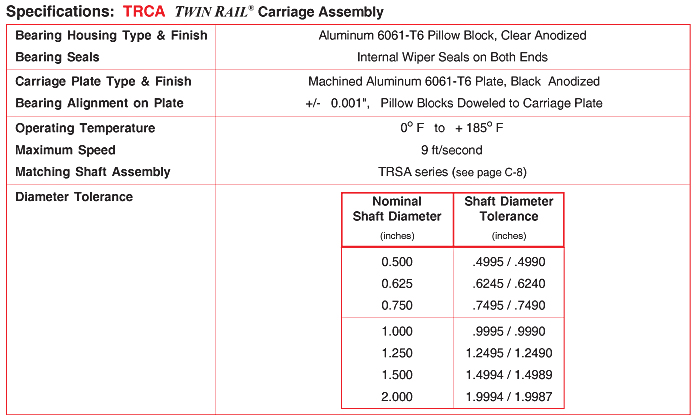

TRCA Pillow Block Carriage Assemblies
The TRCA series is a pre-engineered carriage assembly which has either SLBO or DLBO pillow blocks mounted to a 6061-T6 black anodized precision machined aluminum plate. The pillow blocks are doweled to the carriage plate and are pre-aligned to match LinTech's TRSA series shaft assemblies. The use of a TRCA carriage assembly and a TRSA shaft assembly in a mechanical positioning application greatly reduces the time consuming process of mounting & aligning two shafts and pillow blocks. Each carriage surface is precision machined which allows for accurate mounting of customer loads. Also, carriage assemblies are available with pre-machined stainless steel inserts, which allows easy mounting of customer loads to the carriage plate. Carriages are provided with pillow blocks for shaft diameters from 1/2 to 2 inches, and come in standard carriage lengths from 6 to 30 inches. Contact LinTech for custom carriage assemblies.
