Products  -   LSRS  series   Steel Shaft Rail Support

LSRS series Round Rail Low Profile Steel Rail Supports

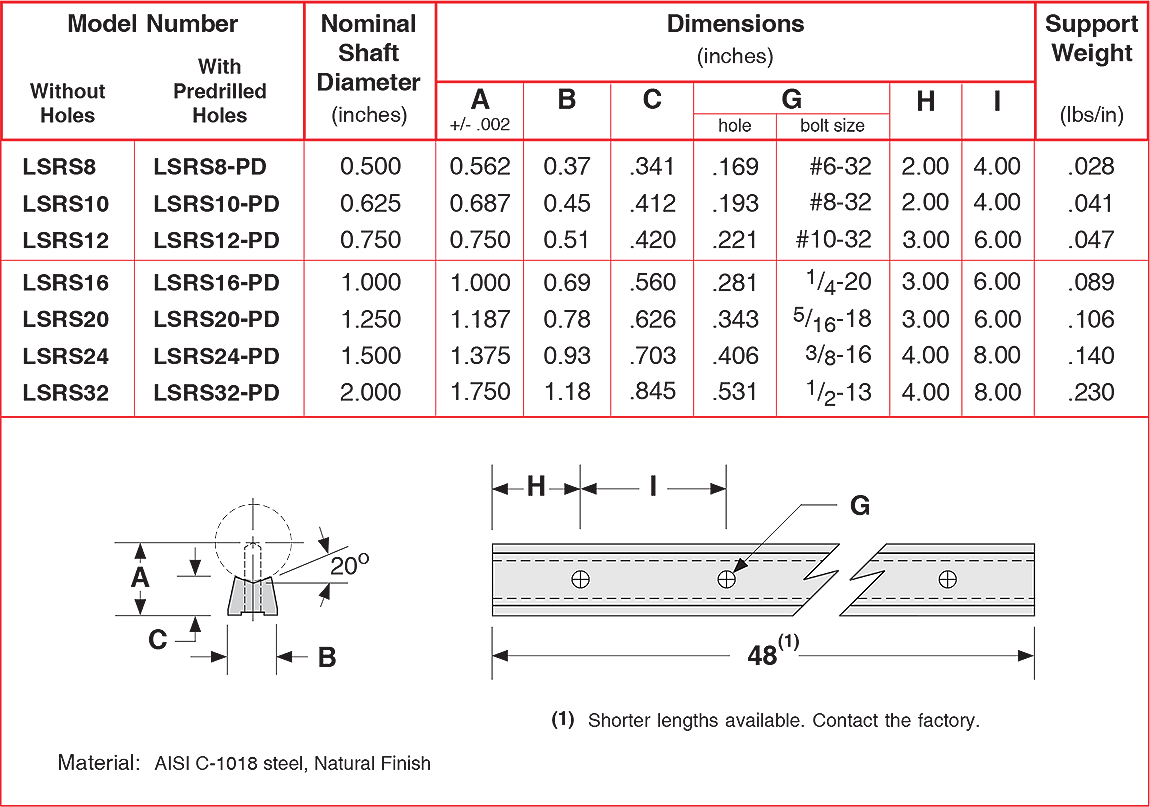

Part Number and Dimensions
Drop In Replacement for
Product  Overview
Model Number: LSRS  series
Key Feature: Low Profile Steel Rail Support
Material: AISI C-1018 Steel
Material Finish: Natural Finish
Shaft Diameters: 0.500 to 2.000 inches
Delivery: Stock
Get a Price            Get a CAD File
LSRS series Steel Shaft Rail Support
The LSRS shaft support provides a simple means to having a shaft be fully supported along its length. The support is manufactured from C-1018 steel and is available for various shaft diameters.
PDF  File  Down  Loads
               LSRS  Technical Information              Design Section Components
               Entire Components Catalog              Components Service Manual
