Products  -    90  series
  90  series

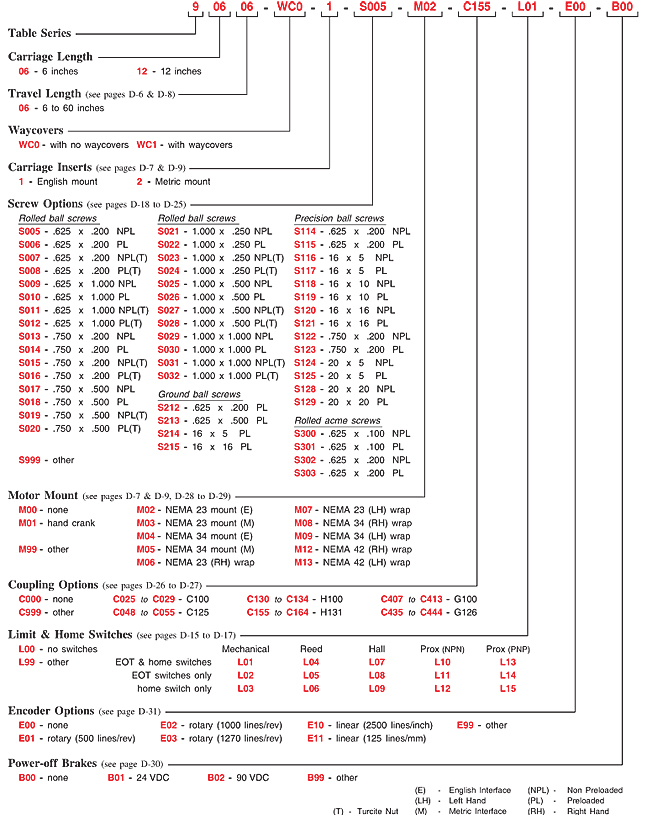

Part Number
More Specs
(Dimensions)

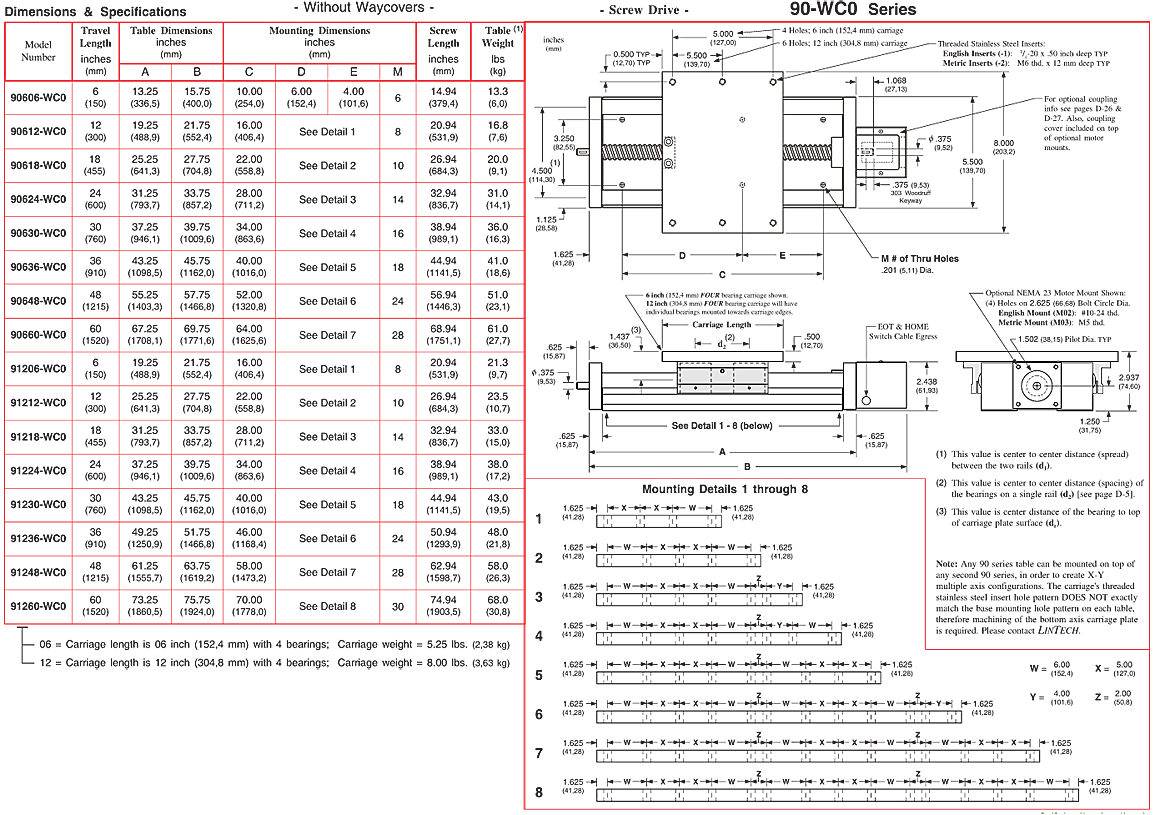

WC0

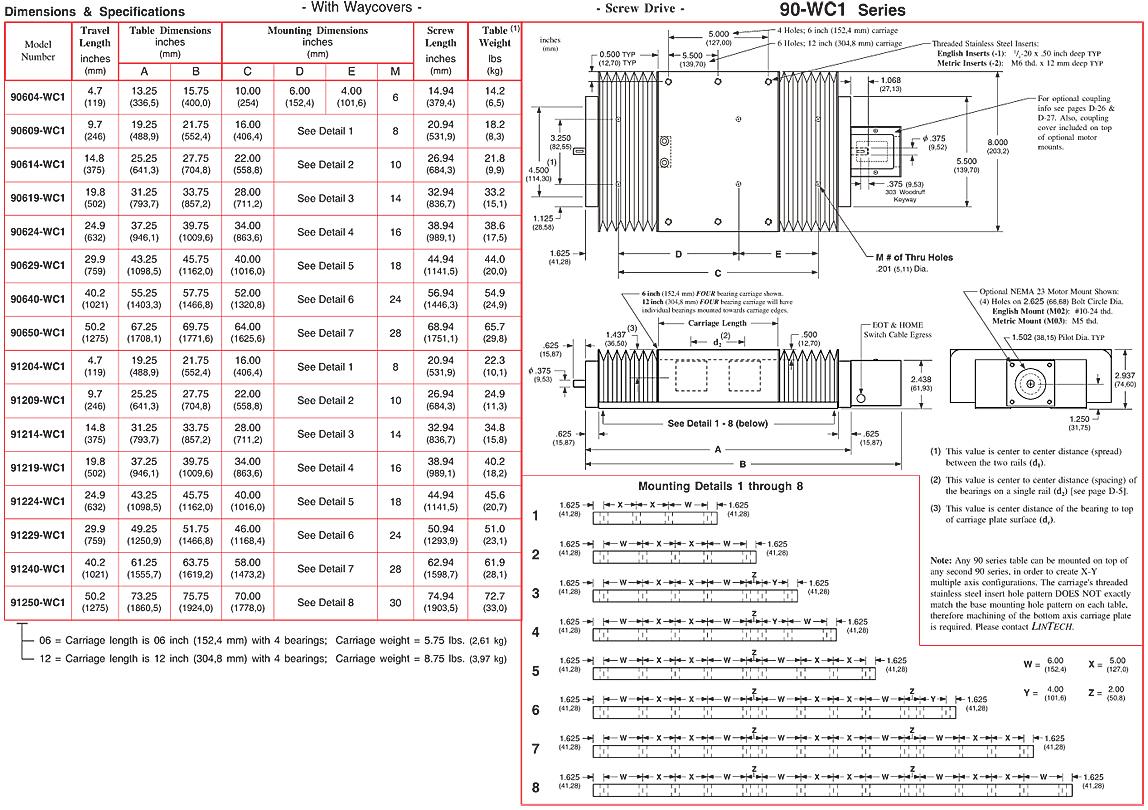

WC1
Product  Overview
Model Number: 90  series
Key Feature: High Speed Screw Driven Linear Tables
Linear Bearing: Round Rail
Drive Type: Acme Screw or Ball Screw
Height: 2.93 in (75 mm)
Width: 8.000 in (203 mm)
Load Capacity: 3,300 lbs (1497 kg)
Travel Range: 6 to 60 in (150 to 1520 mm)
Top Speed: < 50 in/sec (1270 mm/sec)
Mounting: English or Metric
Delivery: 2 to 4 weeks
Get a Price            Get a CAD File

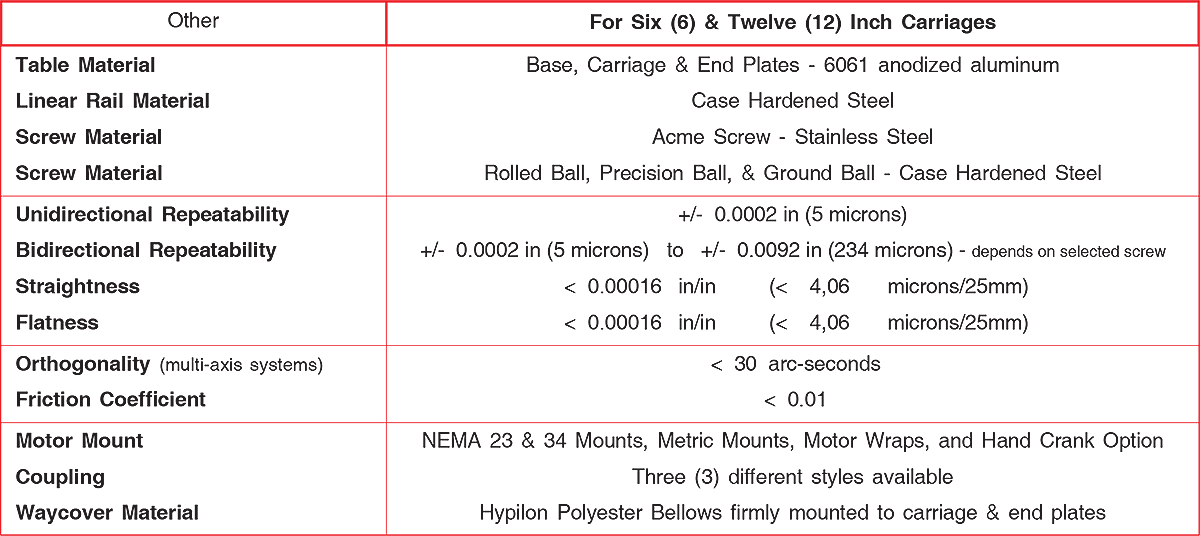

The Lintech 90 series linear positioning tables are designed to maximize performance while minimizing physical size and cost. These linear slides use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear round rails. The linear rails are mounted to a precision machined aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. There are 50 different acme & ball screw options that offer high efficiencies and long life at an economical price. These linear tables are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages, and versatile mounting brackets for multiple axis applications.
PDF  File  Down  Loads

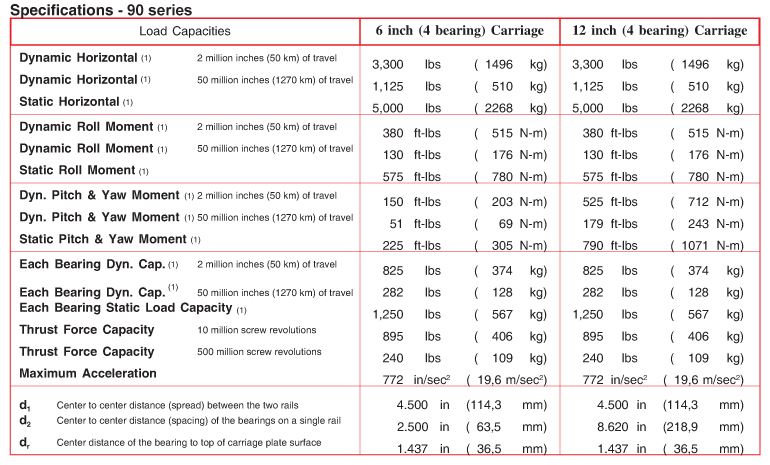

   90  Technical Information  (188k)    Design Section Systems  (4,249k)
   Complete   90  Section  (1,203k)    Custom Systems  (701k)
   Complete Systems Catalog  (14,031k)    Systems Service Manual  (859k)
