Products  -   GS075  series
GS075  series
Part Number
Configurations
Overall Length
Nut Dimensions
Flange Dimensions
Support Dimensions
Motor Mount Dimensions
Product  Overview
Model Number: GS075  series
Key Feature: Complete ball screw assembly
with end supports
Screw Style: Ground
Screw Diameter: 0.750 inch & 20 mm
Screw Lengths: up to 56 inches (1499 mm)
Screw Leads: 0.200 inch and 5 & 20 mm
Lead Error: < 0.0005 inches / ft (0,012 mm/300mm)
End Supports: Simple-Simple, Fixed-Simple,
Rigid-Simple, Rigid-Rigid
Mounting: English & Metric
Delivery: 1 to 3 weeks
Get a Price            Get a CAD File

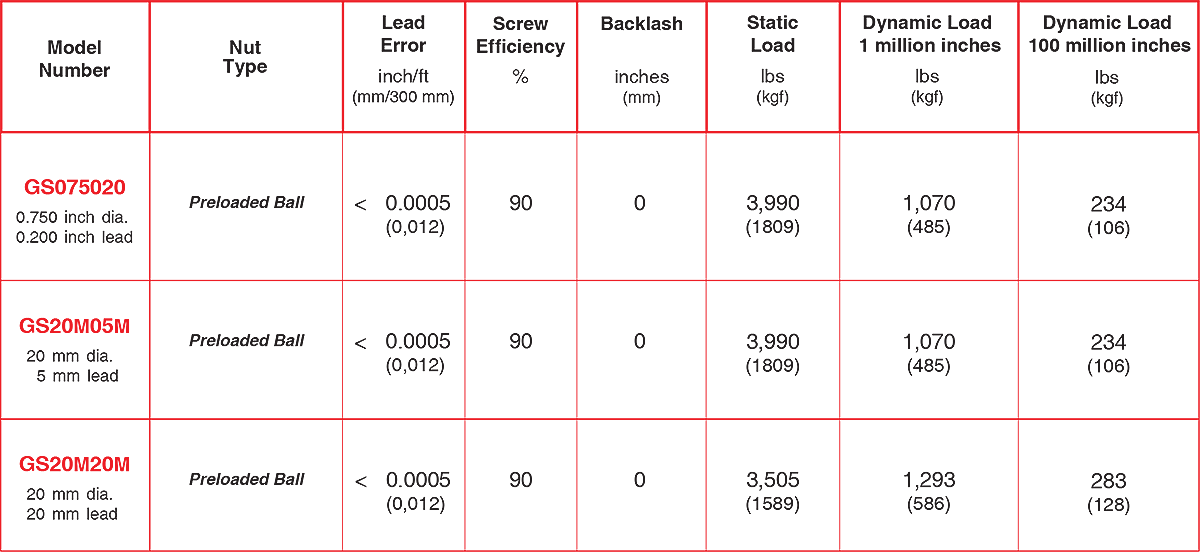

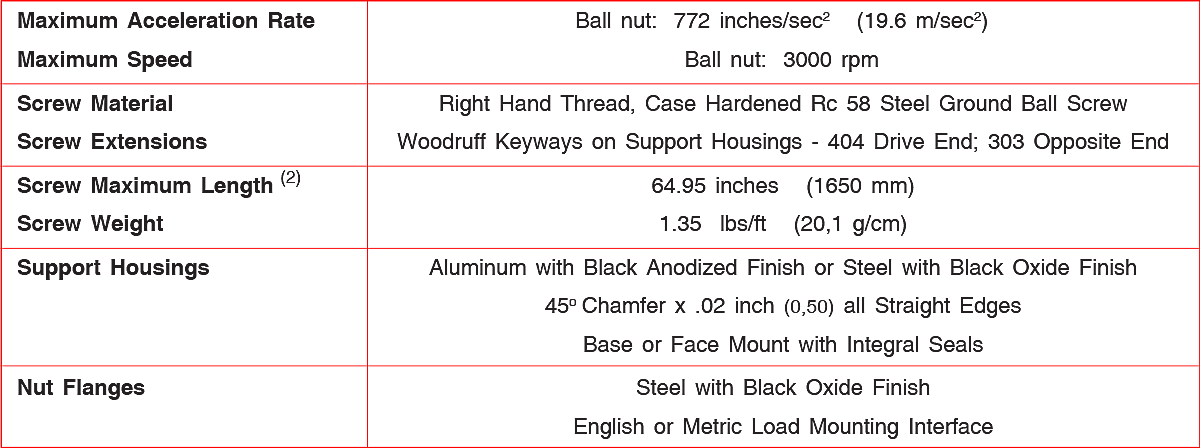

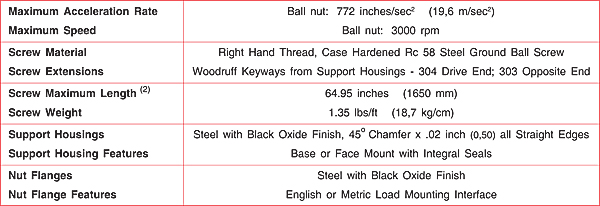

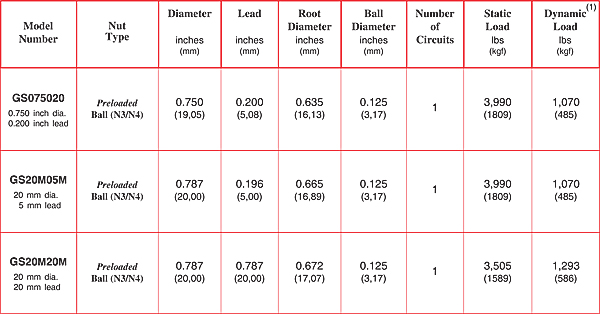

The GS series of ball screw assemblies are designed to maximize performance, while providing design flexiblity. These assemblies utilize a precision ground ball screw with precision ground preloaded nuts. These steel ball screws are provided with precision machined steel supports for end bearing housings. The support housings are available in three styles (simple, fixed, and rigid). The fixed and rigid housings have precision machined shoulders that allow for a NEMA motor mount to be factory or field installed. Ball screw assemblies when used with ball nuts offer high efficiencies and long life, at an economical price. These ball screw assemblies are typically used when a complete positioning system is too costly, or does not fit the users exact positioning system requirements. When combined with linear bearings & rails, a custom positioning system can be created. These ball screw positioning components are designed to allow for numerous options: rotary encoders, different diameter and lead combinations, solid Turcite nuts, power-off electric brakes, and motor wrap package
PDF  File  Down  Loads
   GS075  Technical Information  (1,518k)    Design Section Ball Screws  (1,697k)
   Complete Ball Screw Catalog  (16,077k)    Options  GS075  Section  (379k)
      Components Service Manual  (1,542k)
