Products  -   LBOME  series   Open European Metric Bushing

LBOME Super Self Aligning Ball Bushing Open Metric - European Style

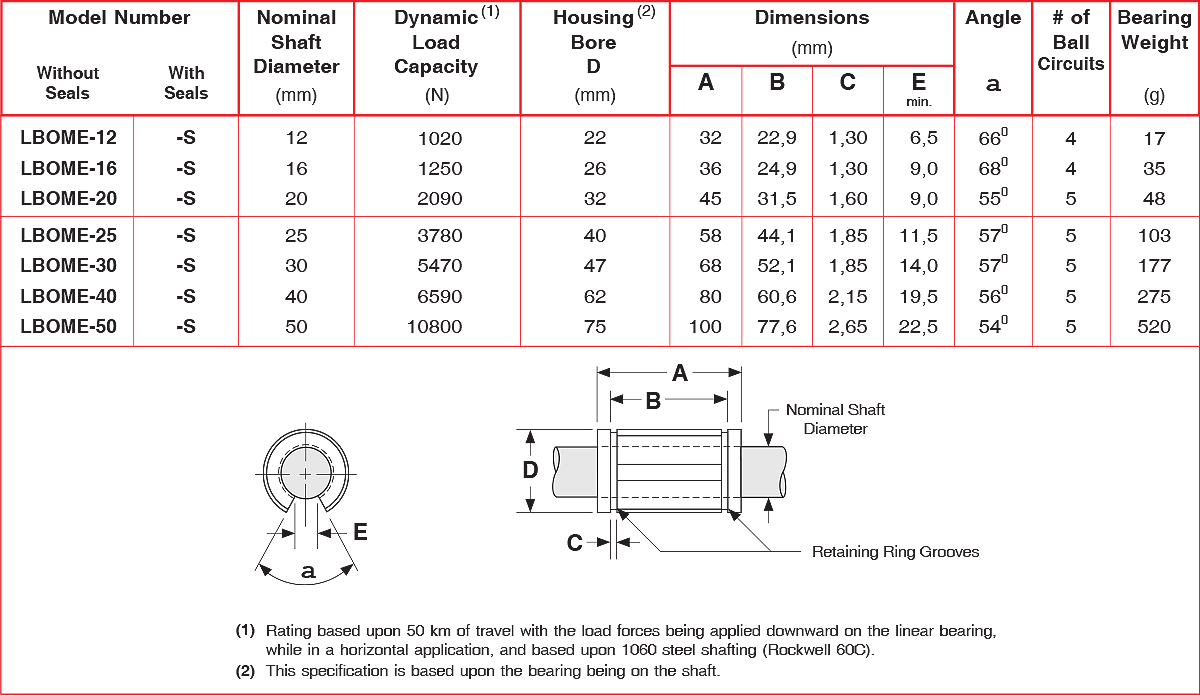

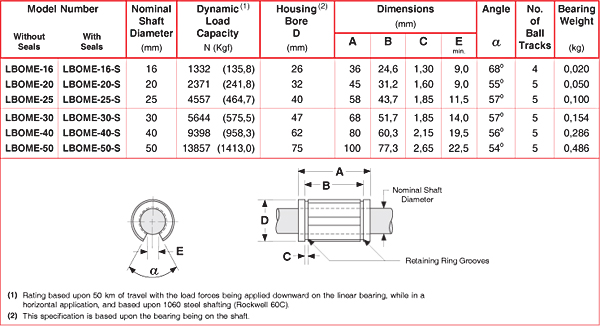

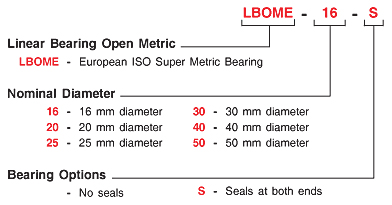

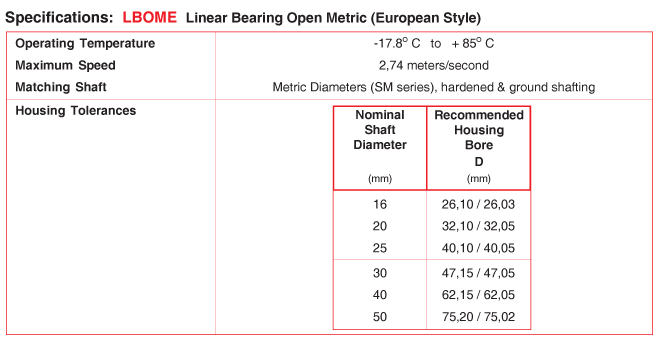

Part Number and Specs
Dimensions
Polar Chart Load Capacity

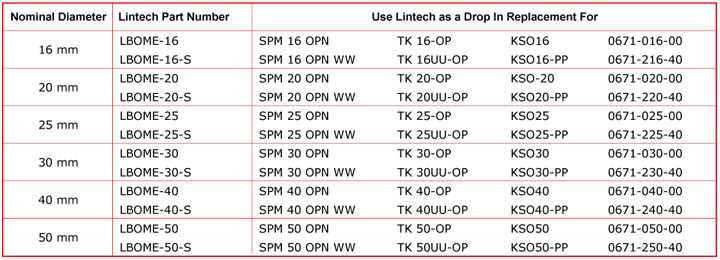

Drop In Replacement for
Round Rail Bearings
Complete Round Rail Catalog
Product  Overview
Model Number: LBOME  series
Key Feature: Open Metric - European Style
Type: Super Self Aligning Ball Bushing
Load Capacity: 1020 to 10800 N
Shaft Diameters: 12 to 50 mm
Bearing Type: Recirculating Linear Round Rail Bearing
Works With: SM  shafting
Delivery: Stock
Get a Price            Get a CAD File
LBOME series Open European Metric Bushing

Super Self Aligning Ball Bushing Information:

The LBOME series is an open style, super high load capacity, Metric - European series recirculating round rail super ball bushing linear bearing. These linear bearings have a ball conforming outer race coupled with a self-aligning feature which allows for zero bearing clearance while maintaining smooth operation. The independently self aligning outer bearing races insure smooth operation by absorbing miss alignment up to 1/2 degree in all directions. These bearings are typically used with the Lintech SM series precision linear shafts.

Recirculating Linear Round Rail Bearing Products:

Lintech carries a large inventory of these products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. Please Contact us today with your needs.
PDF  File  Down  Loads
                   LBOME  Technical Information              Design Section Components
                   Entire Components Catalog              Components Service Manual
