Products  -   LBOM  series
LBOM  series

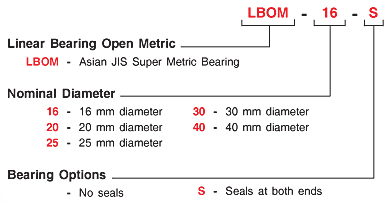

Part Number

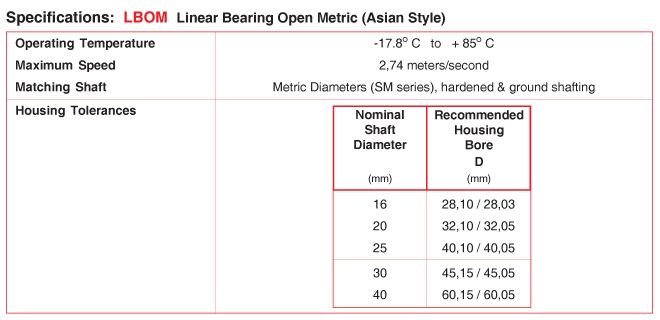

More Specs
Product  Overview
Model Number: LBOM  series
Key Feature: Open Metric - Asian Style
Type: Super Self-Aligning
Load Capacity: 139 to 959 Kgf
Shaft Diameters: 16 to 40 mm
Bearing Type: Recirculating round rail
Works With: SM  shafting
Delivery: Stock
Get a Price            Get a CAD File
The LBOM series is an open style, super high load capacity, Metric - Asian series recirculating round rail linear bearing. These linear bearings have a ball conforming outer race coupled with a self-aligning feature which allows for zero bearing clearance while maintaining smooth operation. The independently self-aligning outer bearing races insure smooth operation by absorbing miss-alignment up to 1/2 degree in all directions.
PDF  File  Down  Loads
   LBOM  Technical Information  (165k)    Design Section Components  (1,796k)
   Entire Metric Catalog  (374k)    Components Service Manual  (1,542k)
