Products  -   ARC  series   Profile Rail Linear Guide

ARC series Profile Rail Linear Guide
Part Number
Load Capacity
Accuracy Specs
Preload Specs
Complete Profile Rail Catalog
Product  Overview
Model Number: ARC  series
Bearing Type: Profile Rail Linear Guide
Key Feature: Standard Profile Rail Linear Guides
Sizes: 15, 20, 25, 30, 35, 45, 55
Number of Rows: 4 rows of re-circulating balls
Load Capacity: From 9.7 to 112.8 kN
Material: Alloy Steel bearing, rail & balls
Delivery: Stock
Get a Price            Get a CAD File

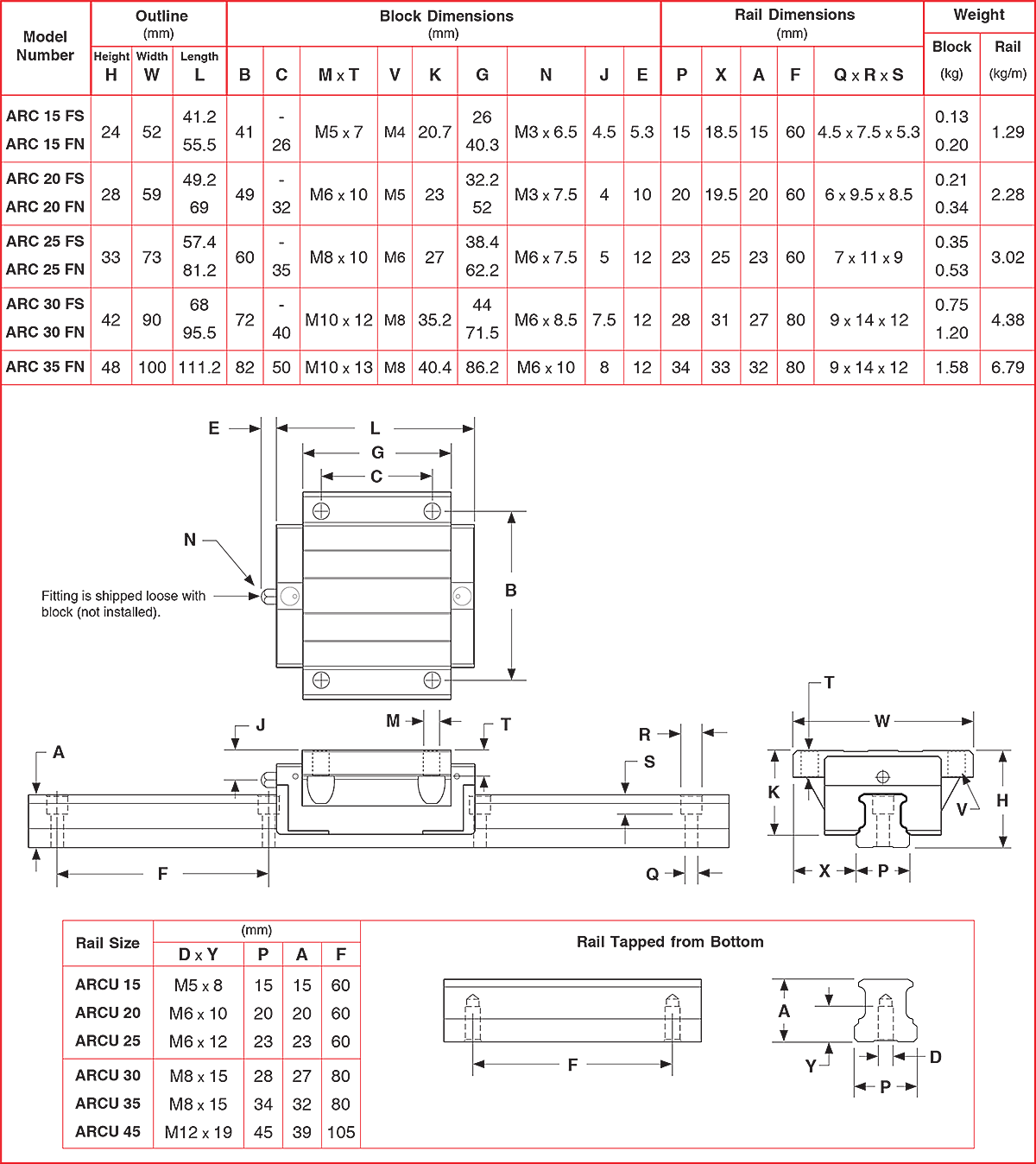

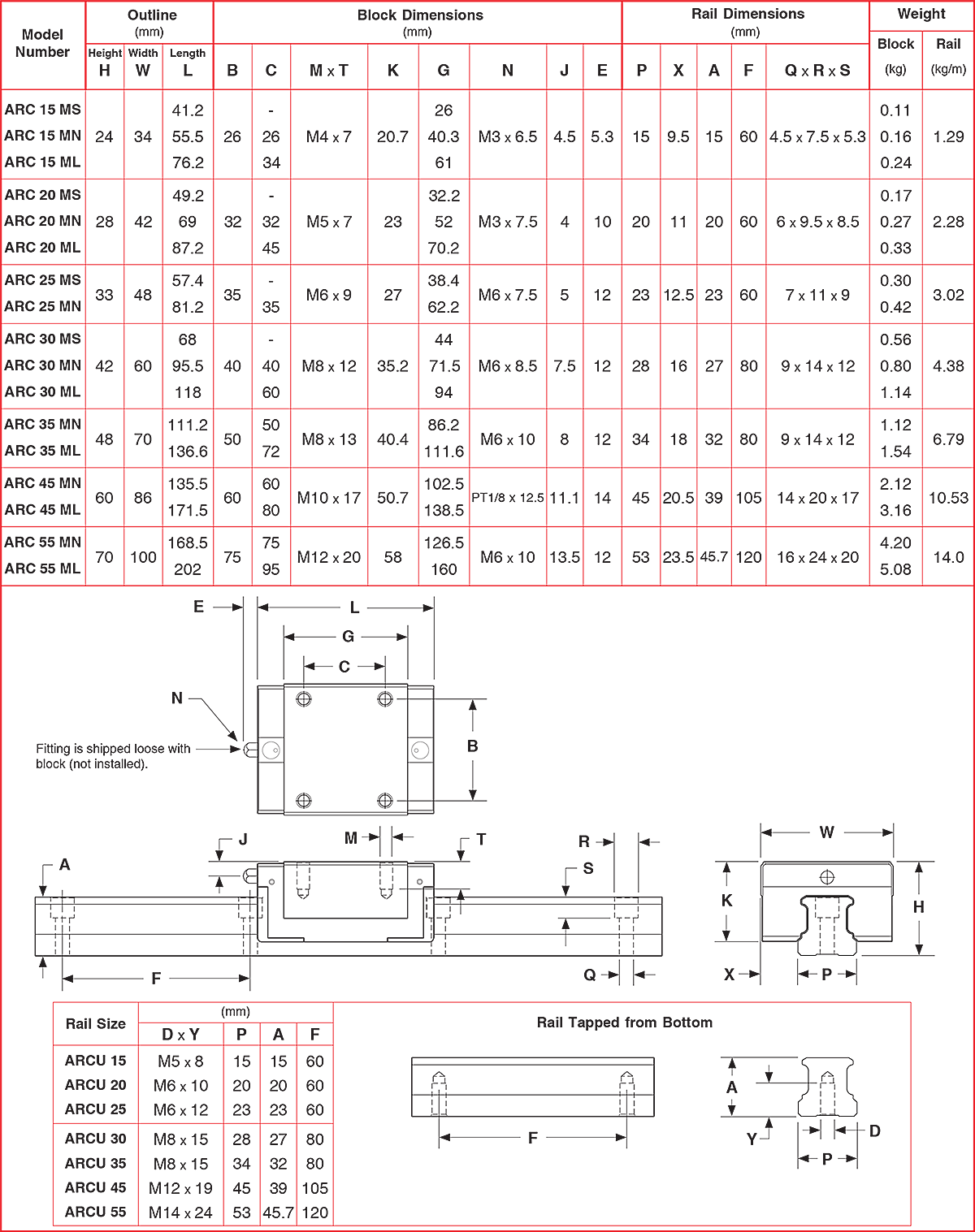

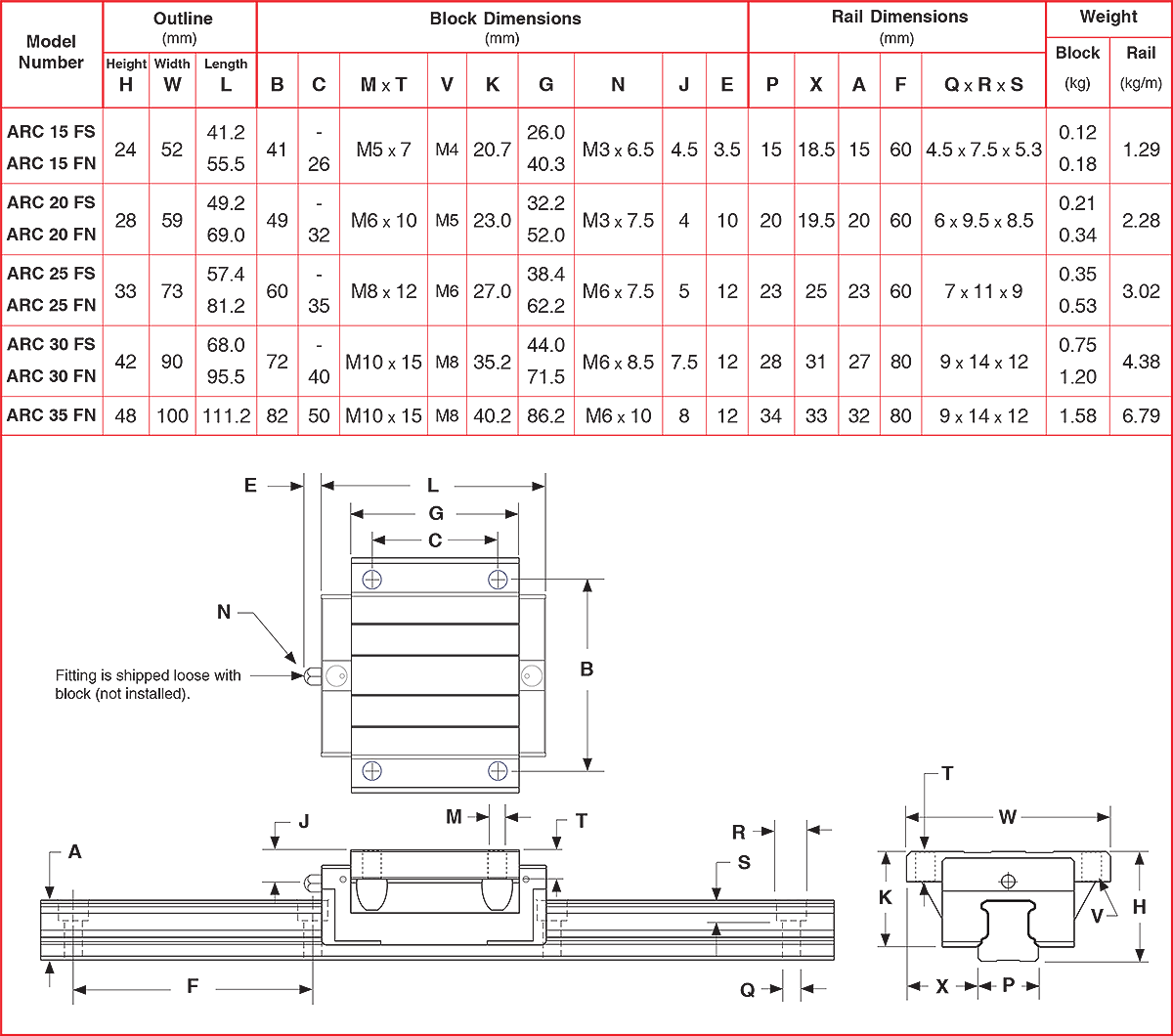

Standard Block Dimensions                 Flanged Block Dimensions
ARC Linear Motion Guides
ARC Profile Square Rail

Profile Rail Linear Guide Information:

The ARC series is a high capacity 4 row re-circulating profile rail linear bearing guide. These profile rail linear LM guides have the block and the rail made of alloy steel and has seals on both ends of the block. There is also an option for a self, or long, lube block, along with a reenforced block seal that allows for the block to obtain higher speeds. Three different accuracy grades are available, N grade, H grade, and P grade. The blocks are available in either a normal or long length, along with a normal or wide version block. Theses different sizes allow for different block load capacities and mounting options.

Linear Guide Products:

Lintech carries a large inventory of linear guide products in its facility and we have the ability to do various modifications to these products with our internal machining cabability. We can cut to any length required, can machine custom mounting holes or ends, and can provide various plating options in order to create a more robust environment ready product. Please Contact us today with your needs.
