Products  -   200  series   Screw Driven Linear Translation Stage

200 Screw Driven Linear Translation Stage

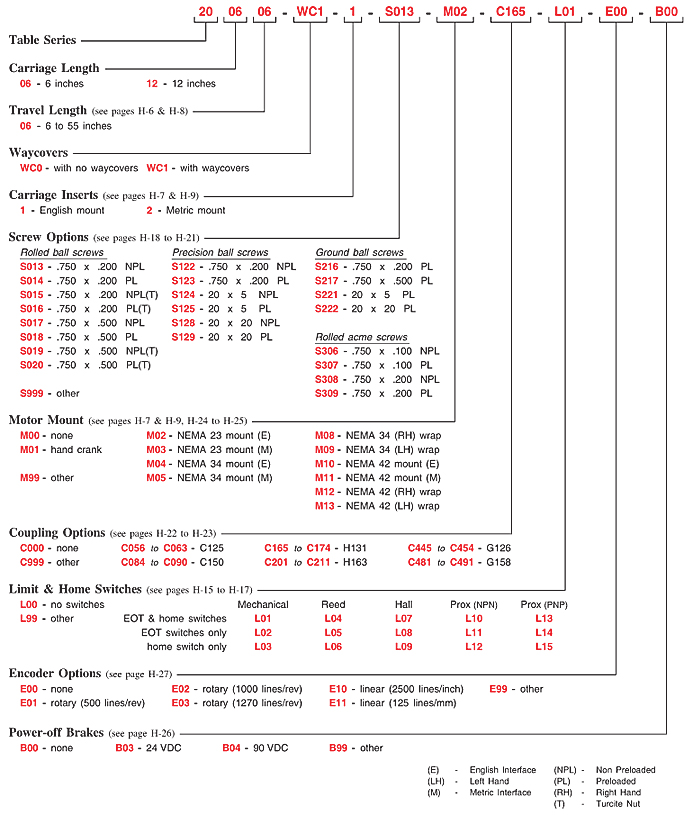

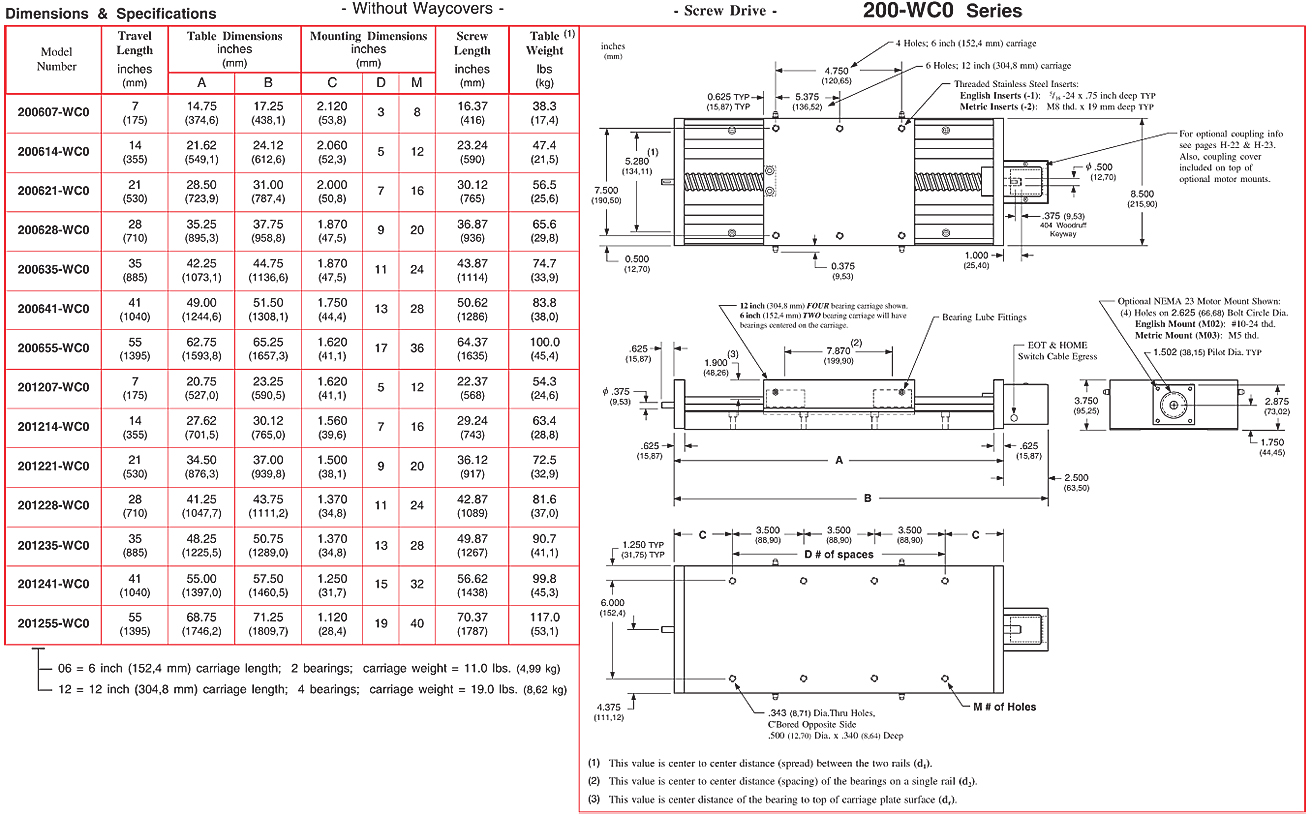

Part Number
Load Capacities
Product  Overview
Model Number: 200  series
Key Feature: Low Height with a Large Load
Capacity Linear Translation Stage
Linear Bearing: Square Rail Linear Guide
Drive Type: Acme Screw or Ball Screw
Height: 3.750 in (95 mm)
Width: 8.500 in (216 mm)

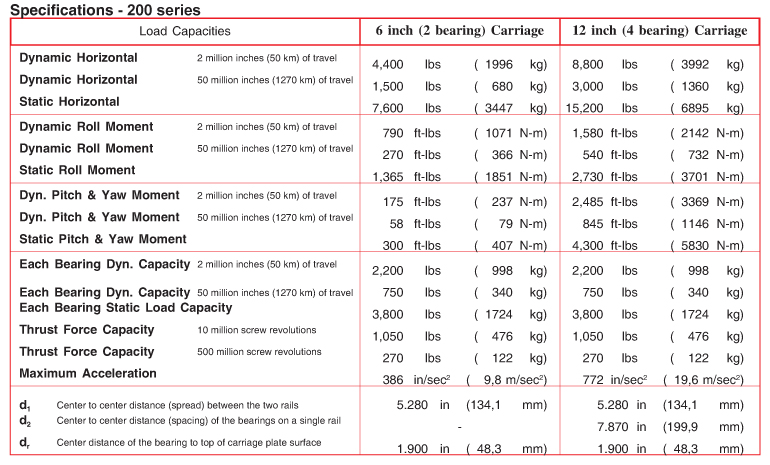

Load Capacity: 8,800 lbs (3991 kg)
Travel Range: 6 to 60 in (150 to 1520 mm)
Top Speed: < 50 in/sec (1270 mm/sec)
Mounting: English or Metric
Delivery: 2 to 4 weeks
Get a Price            Get a CAD File
200 series Screw Driven Linear Translation Stage

Acme Screw or Ball Screw Driven Linear Motion:

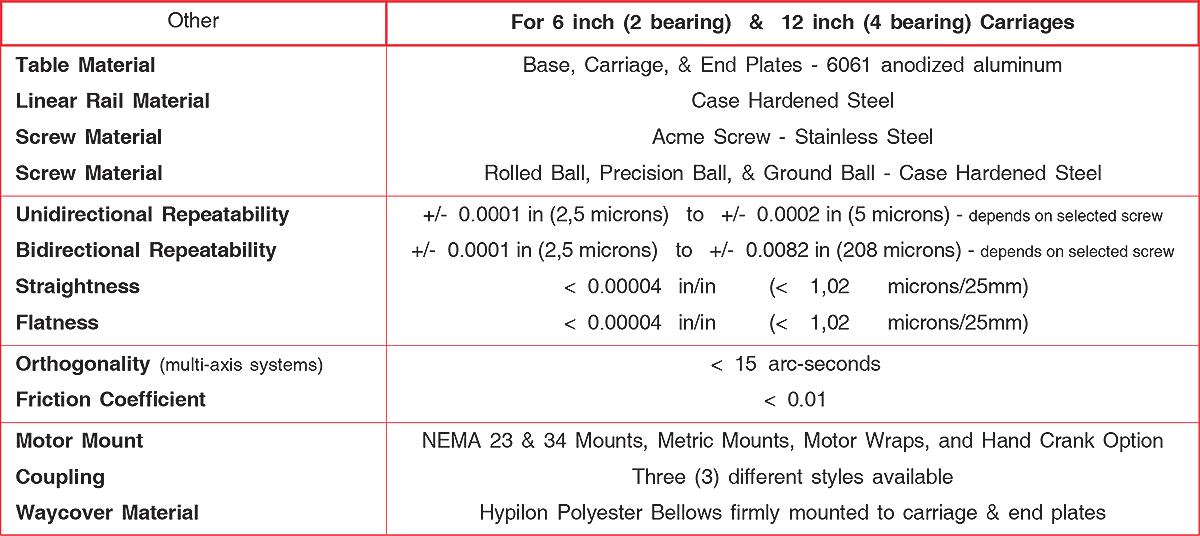

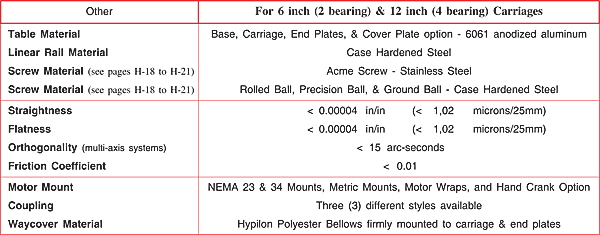

The Lintech 200 series linear translation stages are designed to maximize performance while minimizing physical size and cost. These linear motion stages use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear square rail guides. The linear profile rails are mounted to a precision machined aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. There are 22 different acme & ball screw options that offer high efficiencies and long life at an economical price. These linear stages are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages, and versatile mounting brackets for multiple axis applications.

Square Rail Linear Guide Positioning Systems:

Lintech has the ability to build any of its standard positioning systems in 2 to 3 weeks. If a quicker delivery is required, based on the raw materials required and our assembly back log, a delivery of less than 1 week can be obtain with an expedite fee. Please Contact us today with your needs.
PDF  File  Down  Loads
                   200  Technical Information              Design Section Systems
                   Complete  200  Section              Custom Systems
                   Complete Systems Catalog              Systems Service Manual
