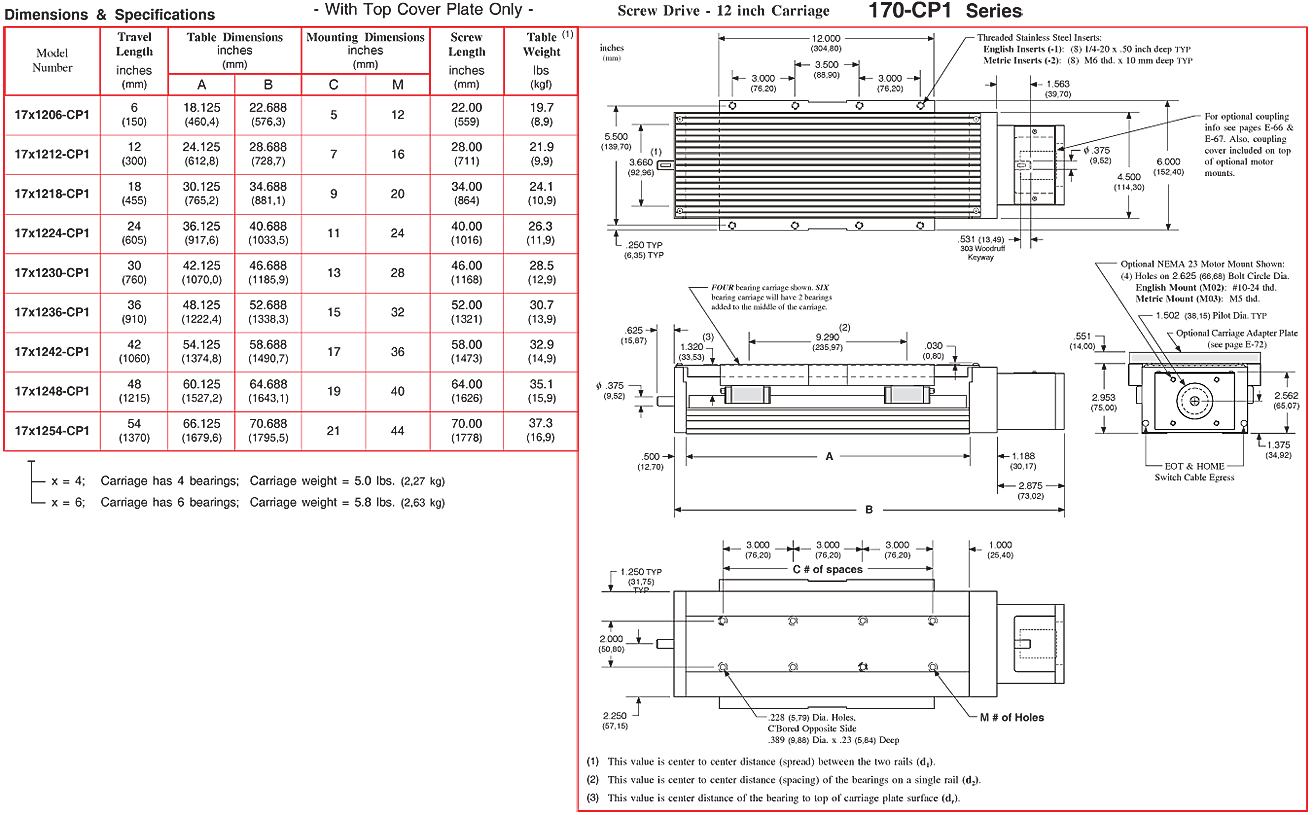

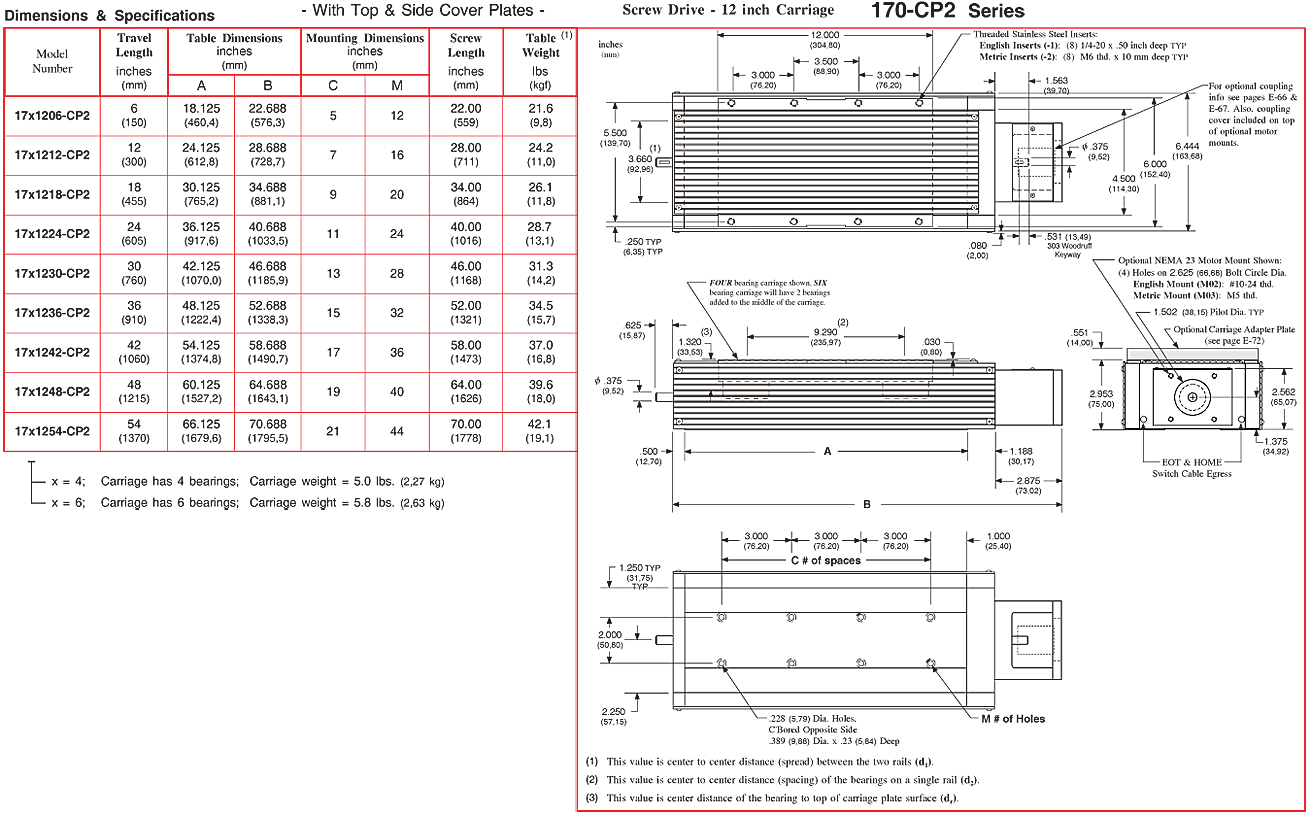

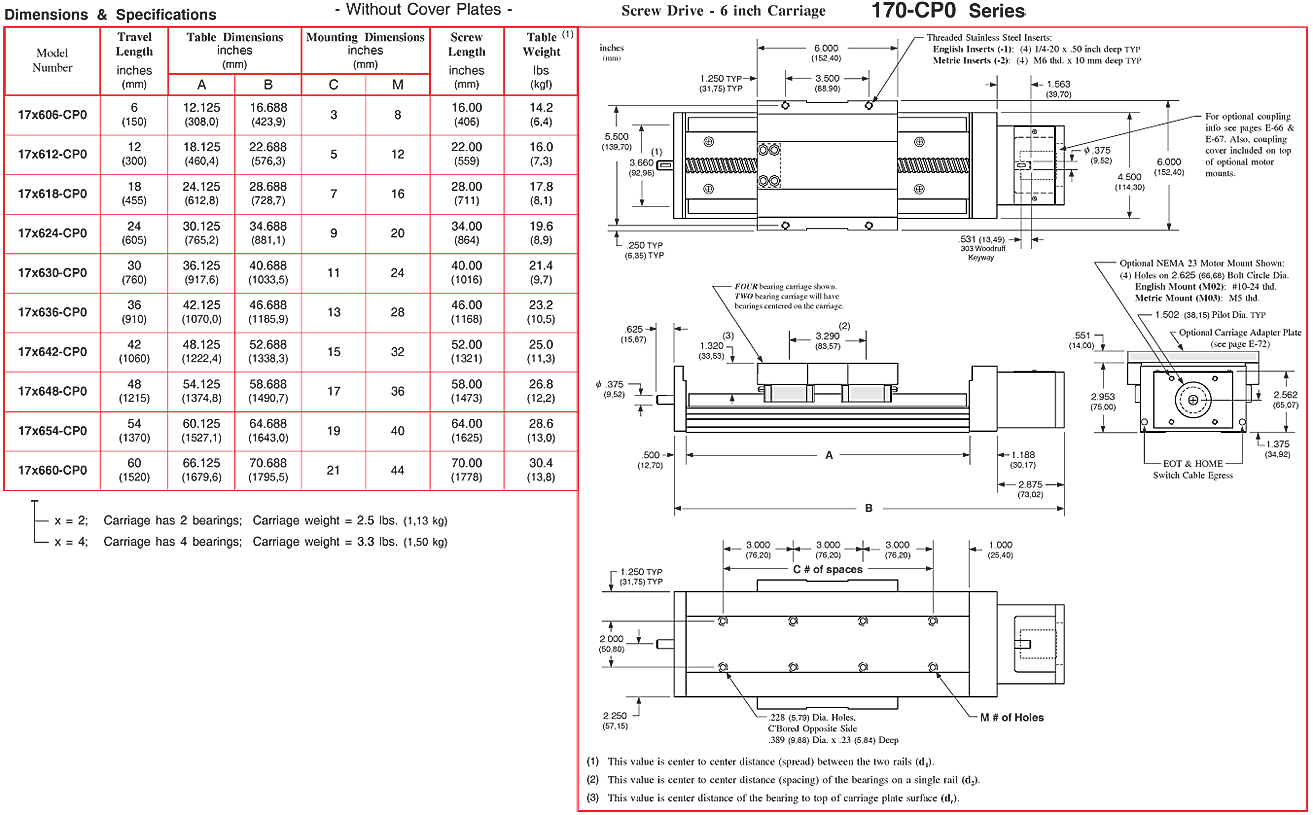

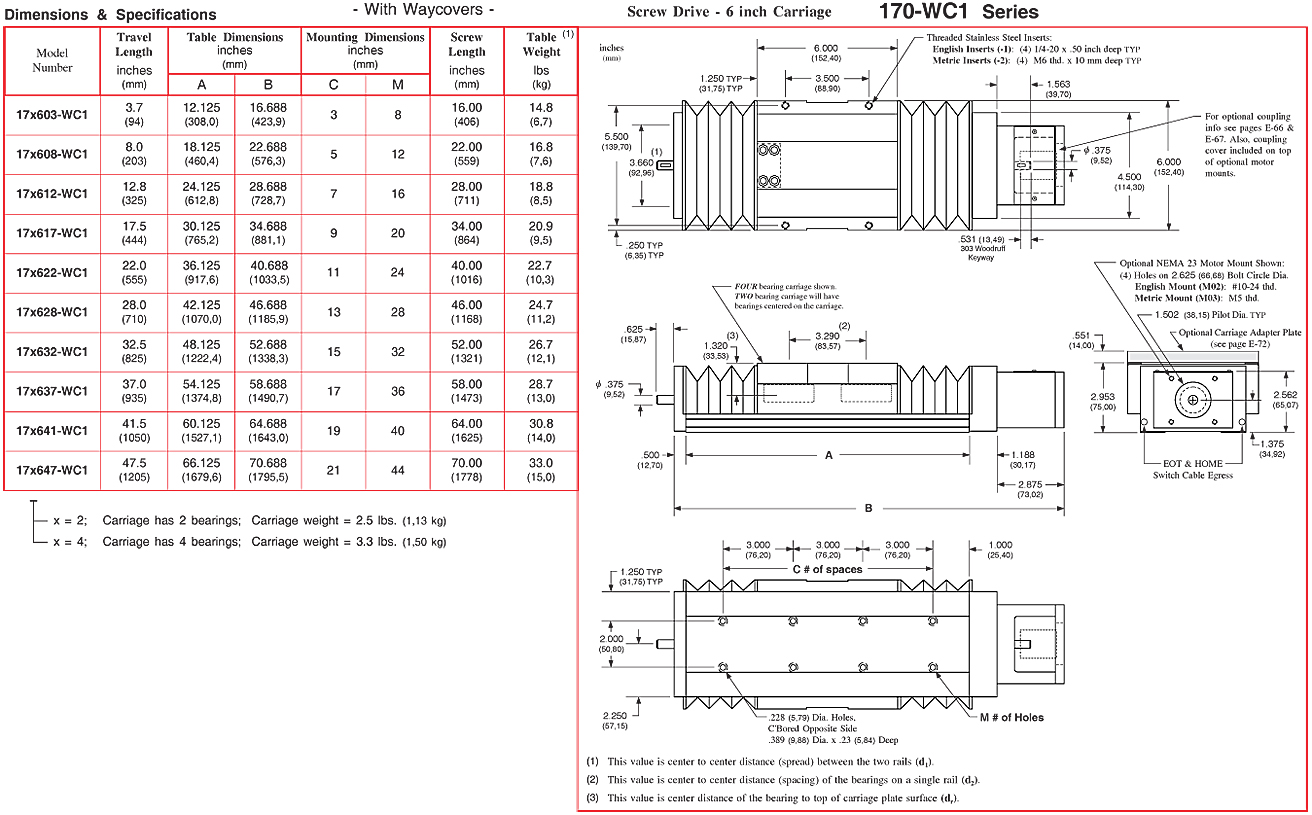

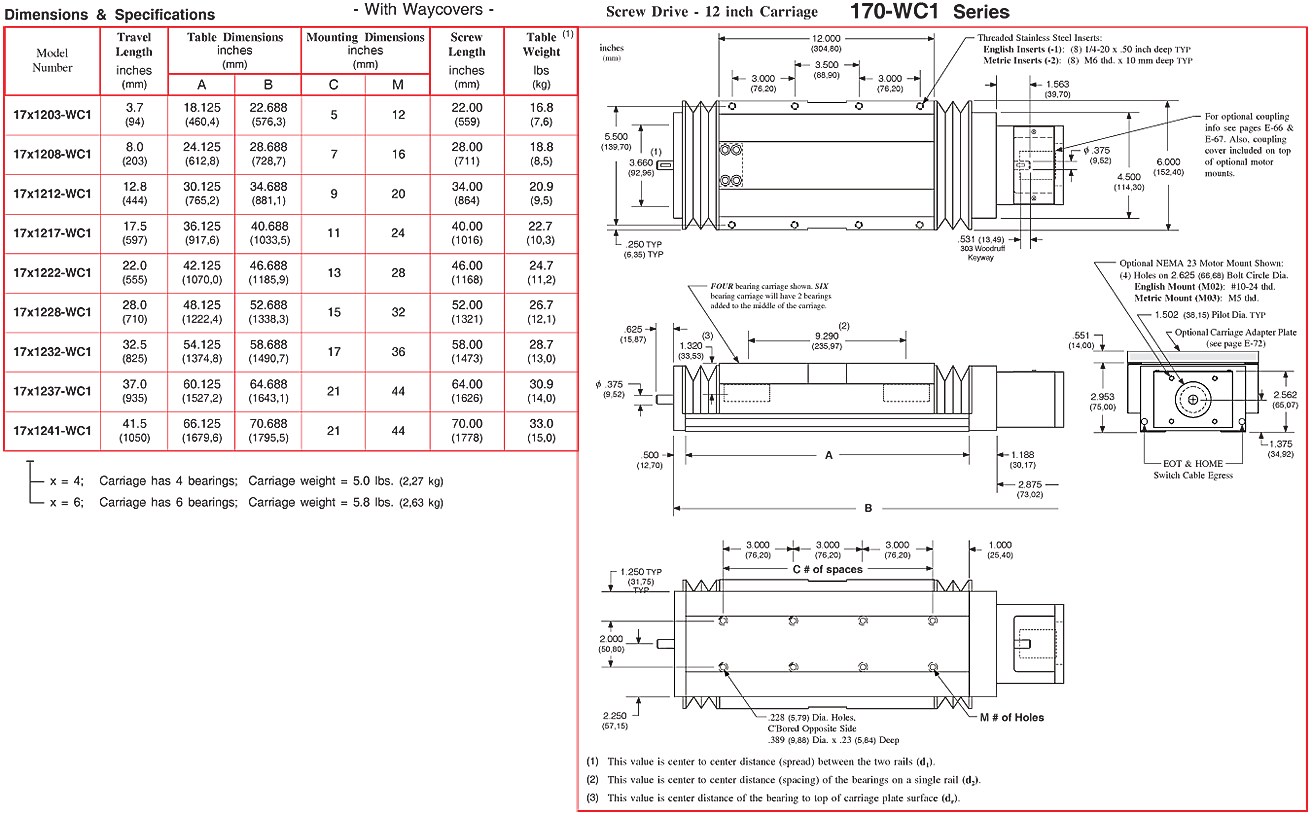

(6 inch carriage) (12 inch carriage)

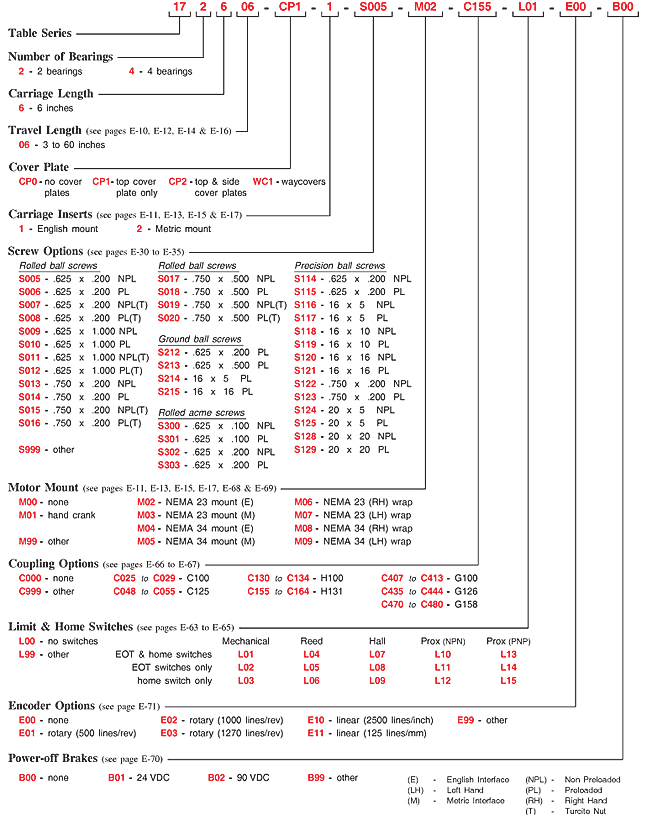

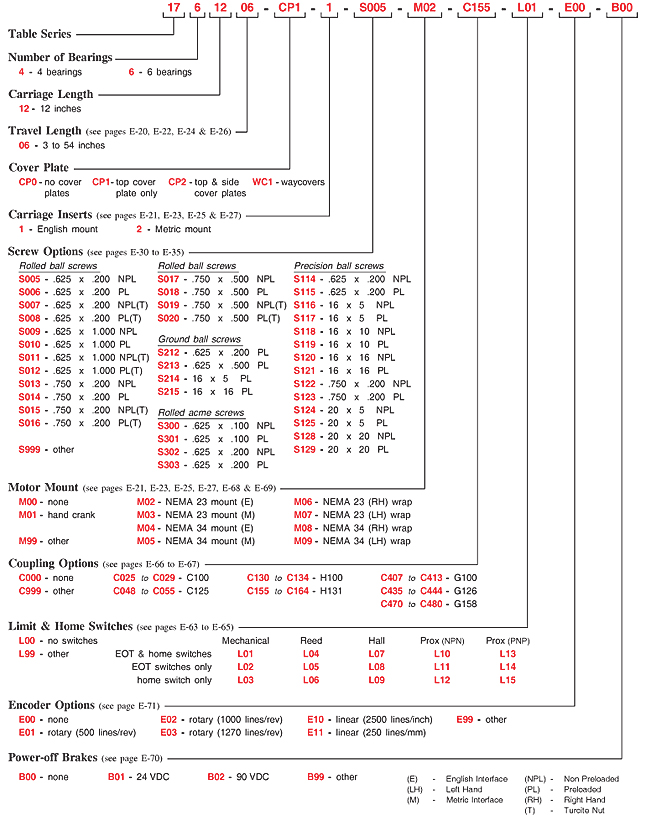

Part Number Part Number

More Specs More Specs

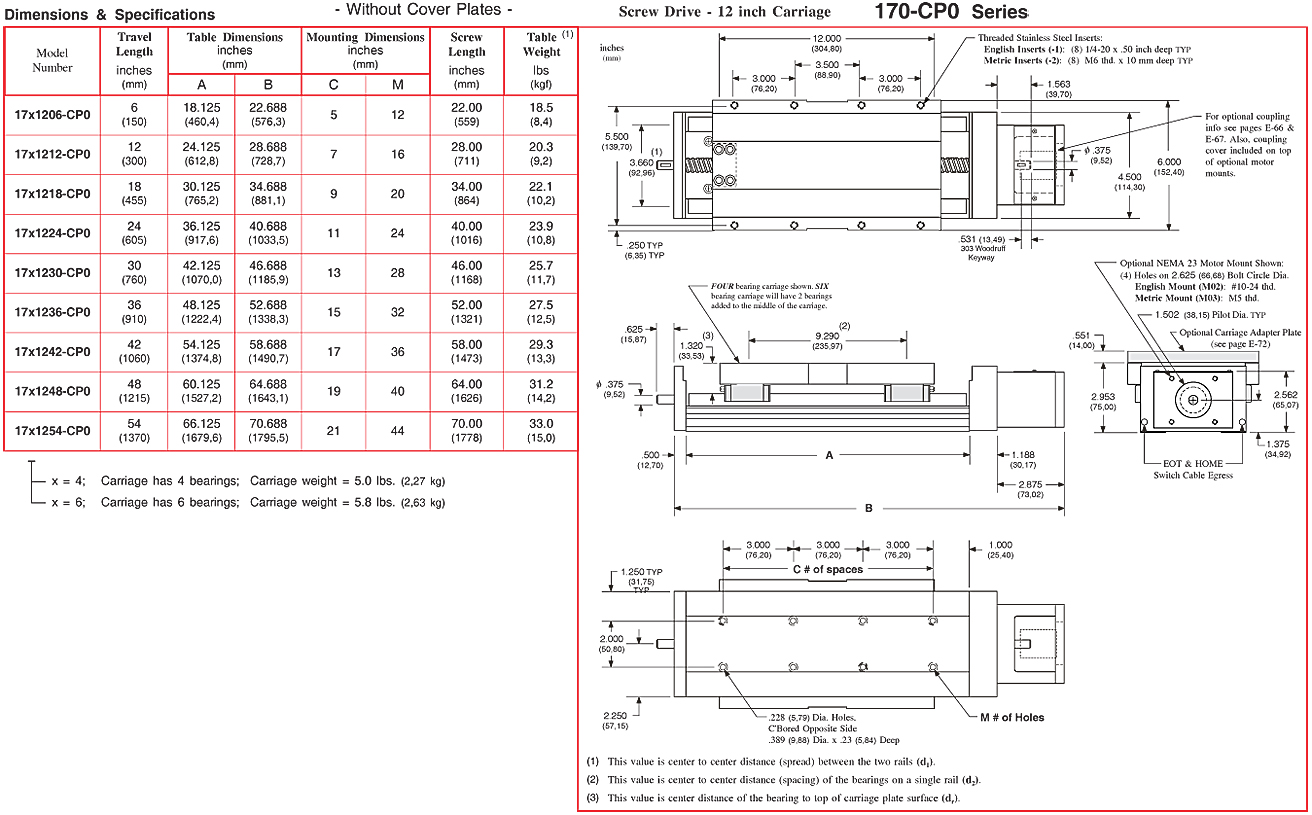

CP0 CP0

CP1 CP1

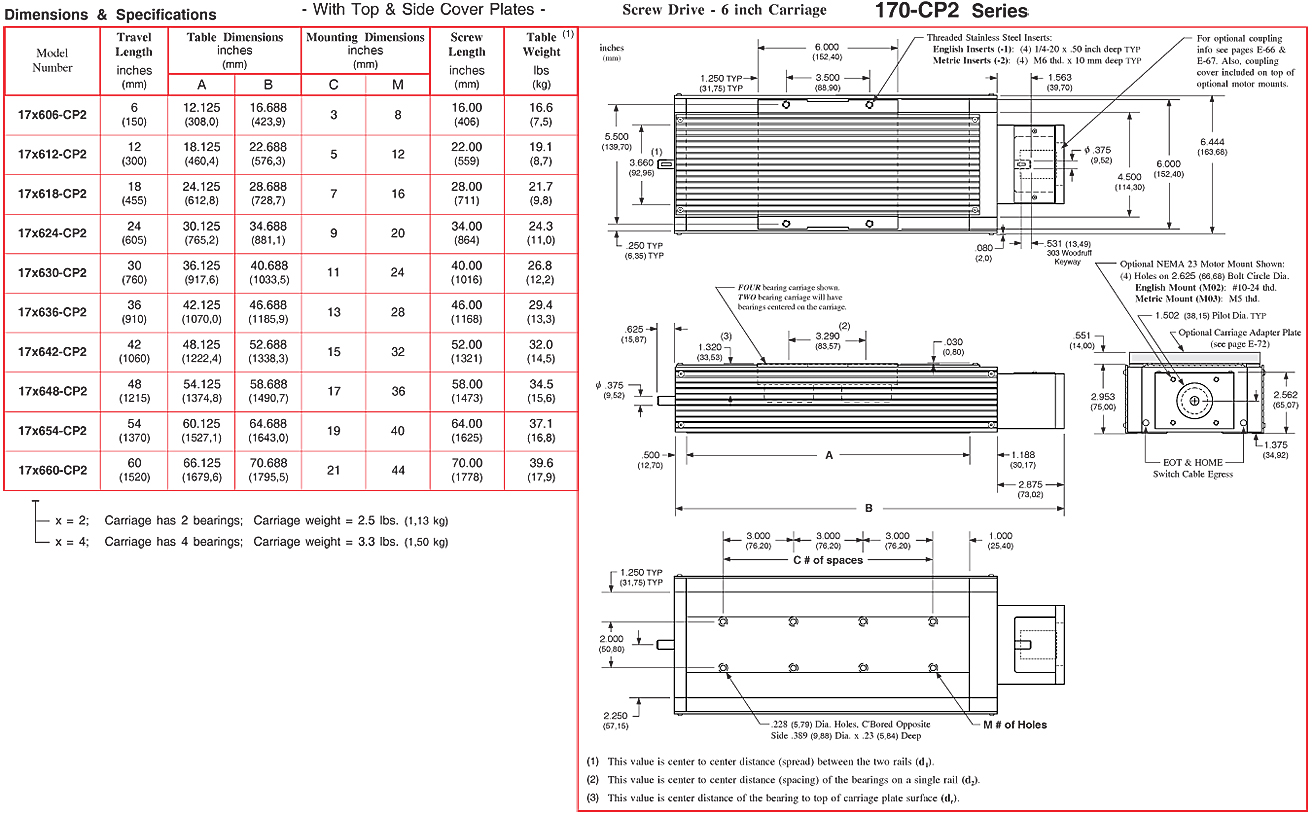

CP2 CP2

WC1 WC1


Product Overview
Model Number:	170 series
Key Feature:	Large Load Capacity at an Economical Price Linear Slides
Linear Bearing:	Square Rail
Drive Type:	Acme Screw or Ball Screw
Height:	2.953 in (75 mm)
Width:	6.000 in (152 mm)

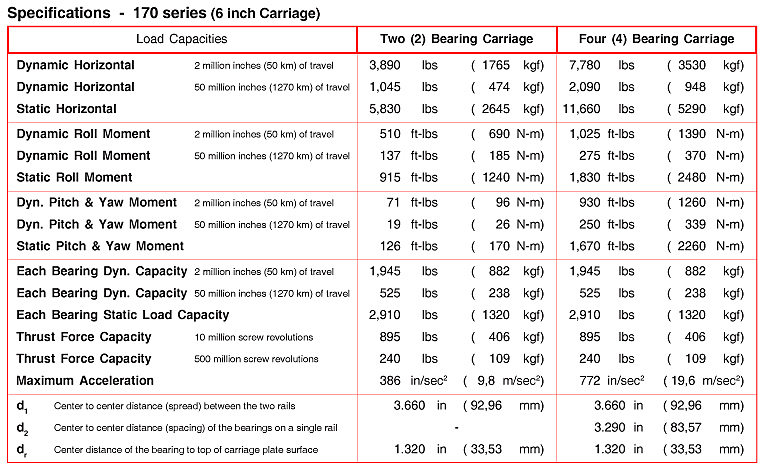

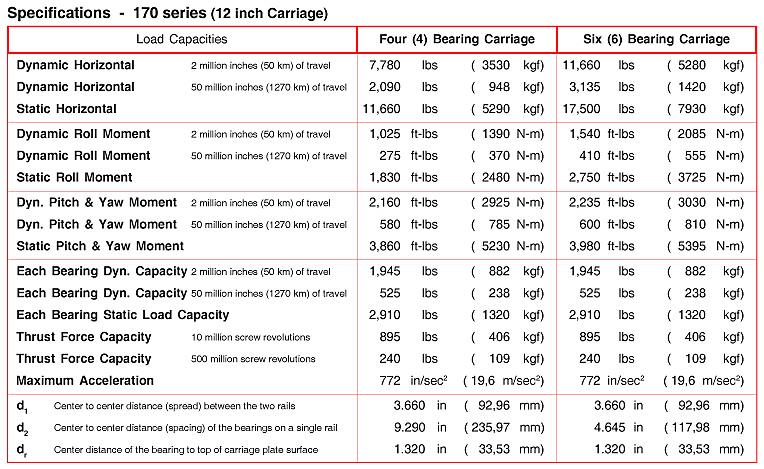

Load Capacity:	8,400 lbs (3810 kg)
Travel Range:	6 to 60 in (150 to 1520 mm)
Top Speed:	< 50 in/sec (1270 mm/sec)
Mounting:	English or Metric
Delivery:	2 to 4 weeks
Get a Price Get a CAD File

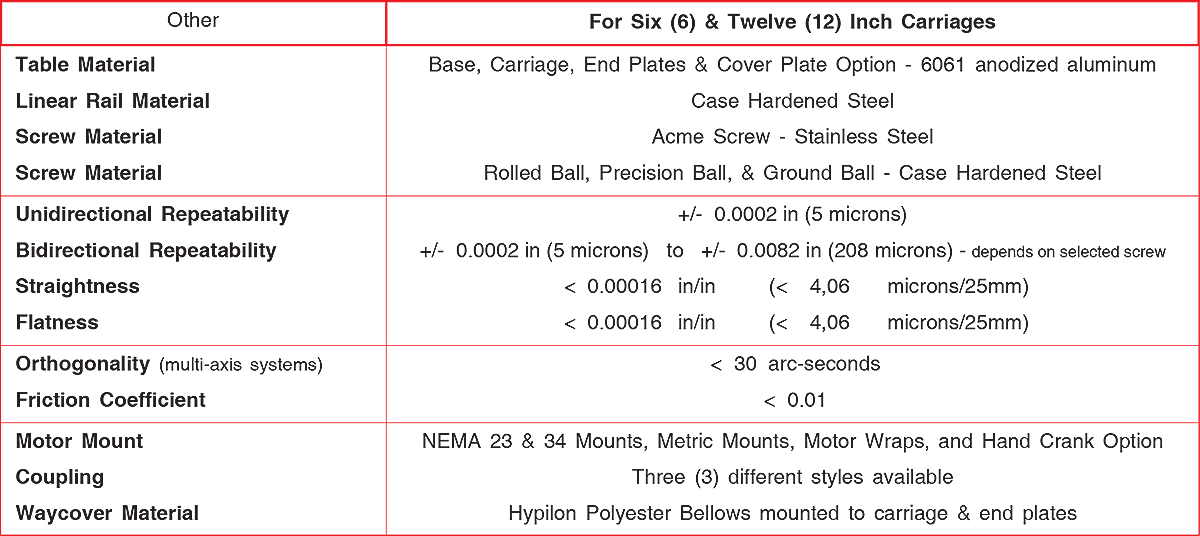

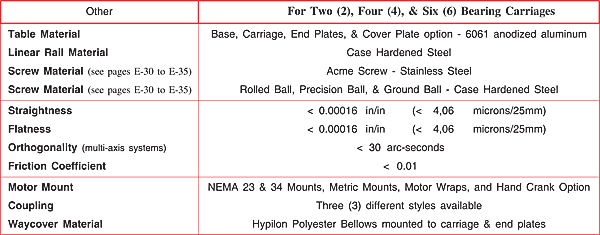

The Lintech 170 series linear slides are designed to maximize performance while minimizing physical size and cost. These linear actuators use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear rails. The linear rails are mounted to an extruded aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. There are 38 different acme & ball screw options that offer high efficiencies and long life at an economical price. These linear tables are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages, and versatile mounting brackets for multiple axis applications.

PDF File Down Loads
170 Technical Information (515k)	Design Section Systems (1,696k)
Complete 170 Section (1,733k)	Custom Systems (701k)
Complete Systems Catalog (8,873k)	Systems Service Manual (1,325k)
