Products  -   160  series   Screw Driven Linear Slide

160 series Screw Driven Linear Slide

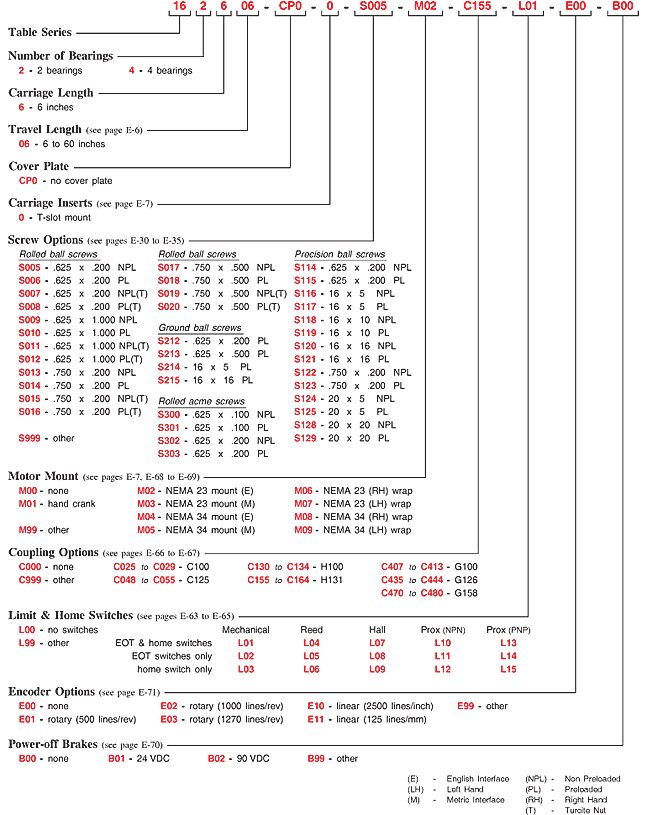

Part Number

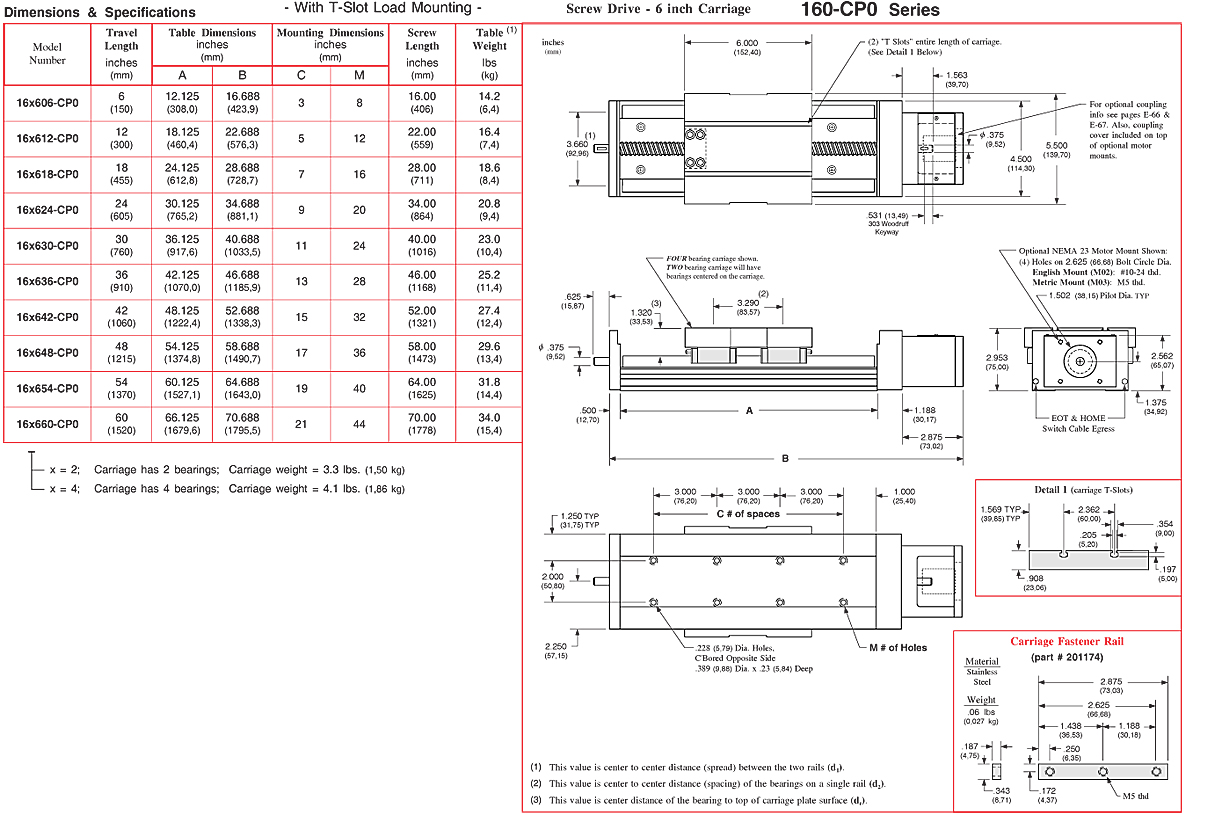

More Specs
(Dimensions)
CP0

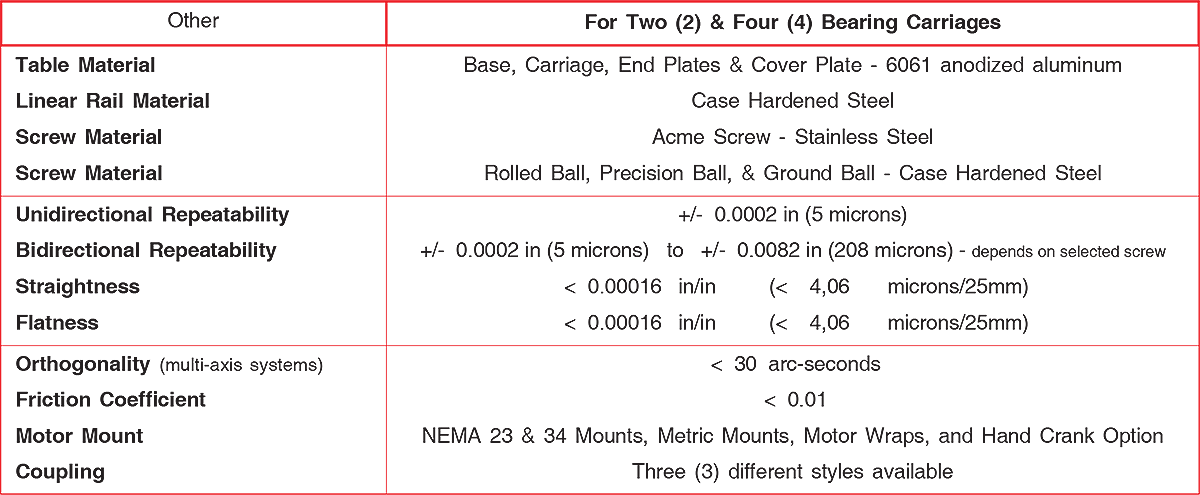

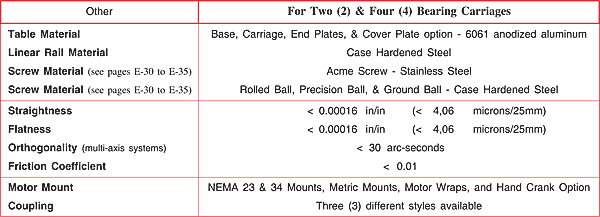

Product  Overview
Model Number: 160  series
Key Feature: Large Load Capacity at an Economical
Price Linear Positioning Stage
Linear Bearing: Square Rail
Drive Type: Acme Screw or Ball Screw
Height: 2.953 in (75 mm)
Width: 5.500 in (140 mm)

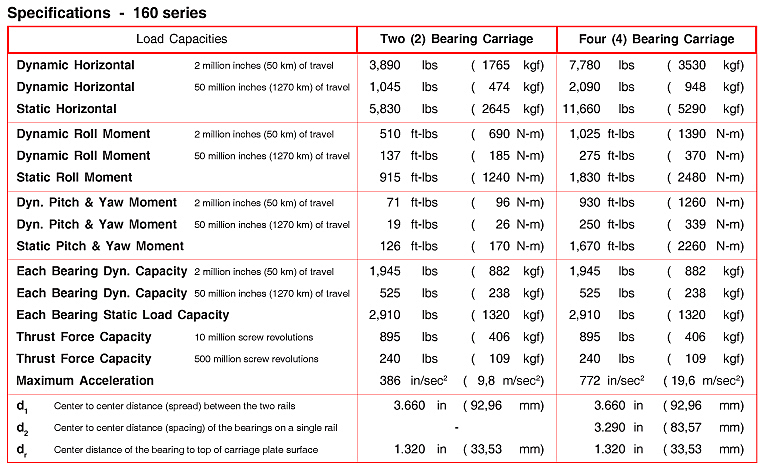

Load Capacity: 7,780 lbs (3530 kg)
Travel Range: 6 to 60 in (150 to 1520 mm)
Top Speed: < 50 in/sec (1270 mm/sec)
Mounting: English or Metric
Delivery: 2 to 4 weeks
Get a Price            Get a CAD File
The Lintech 160 series linear tables are designed to maximize performance while minimizing physical size and cost. These linear stages use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear profile rails. The linear square rails are mounted to an extruded aluminum base, which offers a rigid support over the entire travel of the table's carriage. The user load is mounted to the carriage by using the carriage's T-slot and with T-nuts. There are 38 different acme & ball screw options that offer high efficiencies and long life at an economical price. These linear positioning actuators are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages, and versatile mounting brackets for multiple axis applications.
PDF  File  Down  Loads
   160  Technical Information  (117k)    Design Section Systems  (4,249k)
   Complete  160  Section  (1,661k)    Custom Systems  (701k)
   Complete Systems Catalog  (14,031k)    Systems Service Manual  (859k)
