Products  -   150  series   Screw Driven Linear Translation Slide

150 Screw Driven Linear Translation Slide

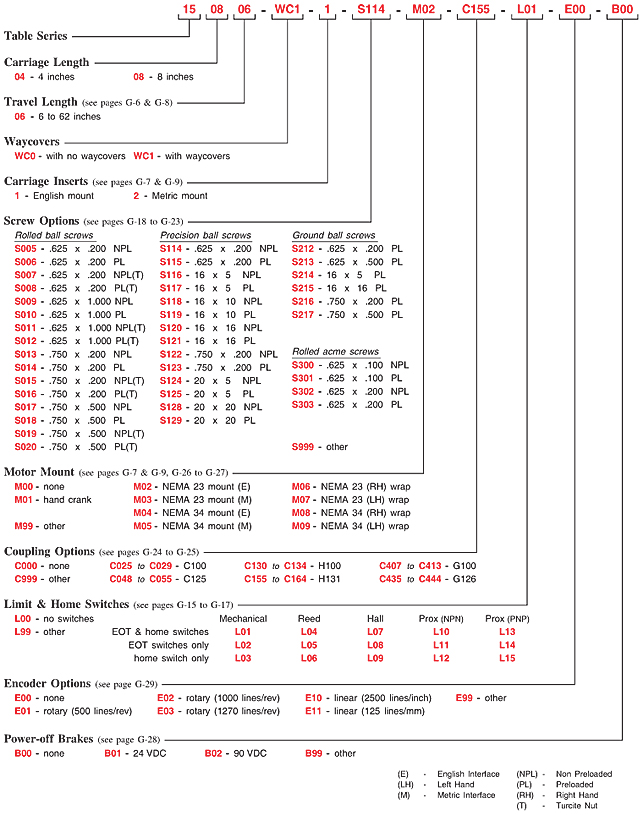

Part Number

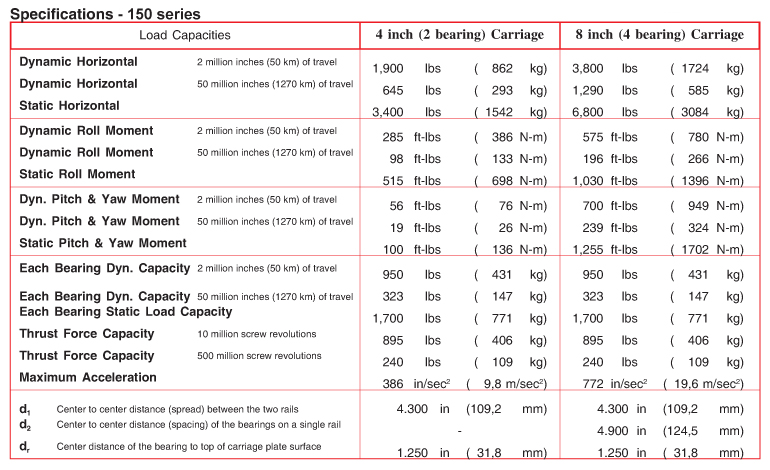

Load Capacities

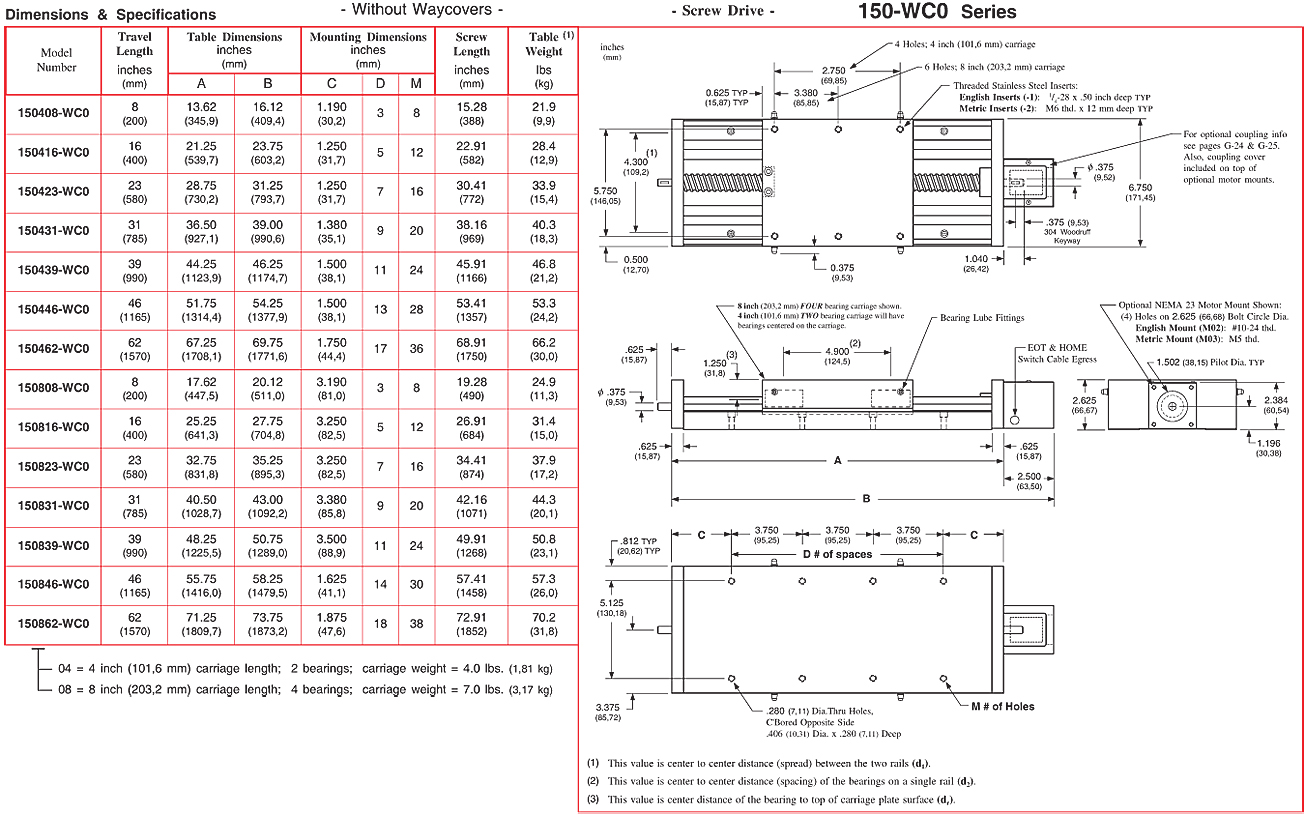

(Dimensions)
WC0
WC1
150  Technical Information
Complete  150  Section
Product  Overview
Model Number: 150  series
Key Feature: Low Table Height with a Large Load
Capacity for a Linear Translation Slide
Linear Bearing: Square Rail Linear Guide
Drive Type: Acme Screw or Ball Screw
Height: 2.625 in (67 mm)
Width: 6.750 in (171 mm)
Load Capacity: 3,800 lbs (1723 kg)
Travel Range: 6 to 60 in (150 to 1520 mm)
Top Speed: < 50 in/sec (1270 mm/sec)
Mounting: English or Metric
Delivery: 2 to 4 weeks
Get a Price            Get a CAD File

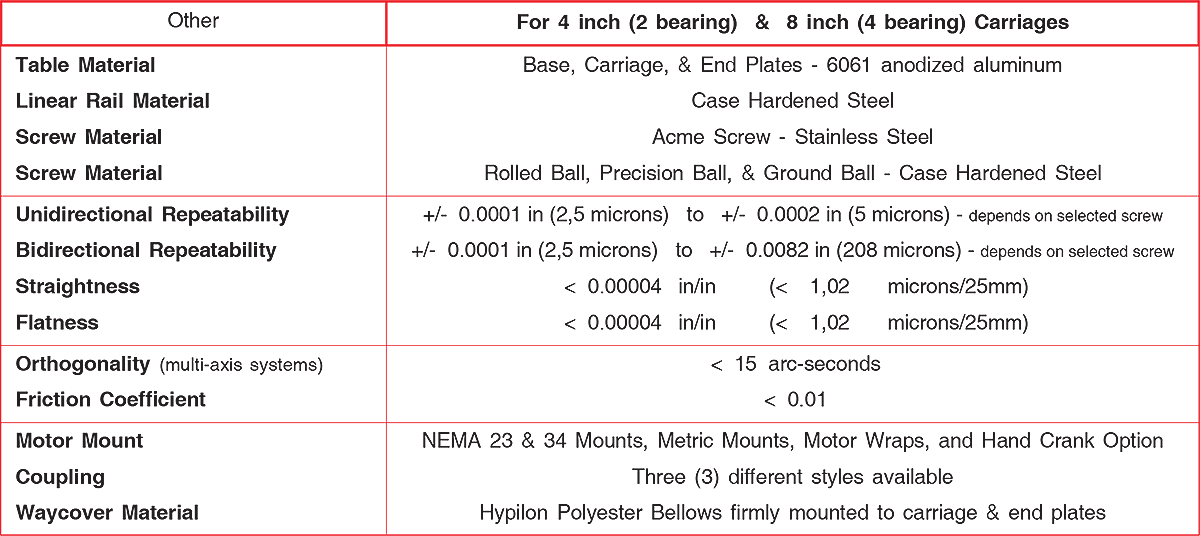

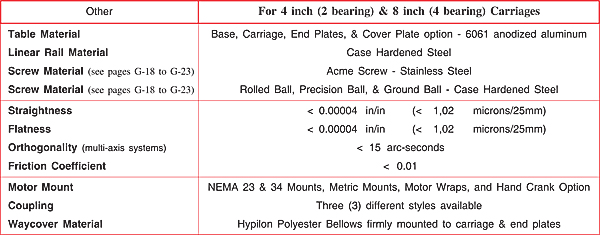

150 series Screw Driven Linear Translation Slide

Acme Screw or Ball Screw Driven Linear Motion:

The Lintech 150 series linear positioning slides are designed to maximize performance while minimizing physical size and cost. These linear actuators use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear square rail guides. The linear profile rails are mounted to a precision machined aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. There are 40 different acme & ball screw options that offer high efficiencies and long life at an economical price. These linear tables are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages, and versatile mounting brackets for multiple axis applications.

Square Rail Linear Guide Positioning Systems:

Lintech has the ability to build any of its standard positioning systems in 2 to 3 weeks. If a quicker delivery is required, based on the raw materials required and our assembly back log, a delivery of less than 1 week can be obtain with an expedite fee. Please Contact us today with your needs.
