Products - 110 series

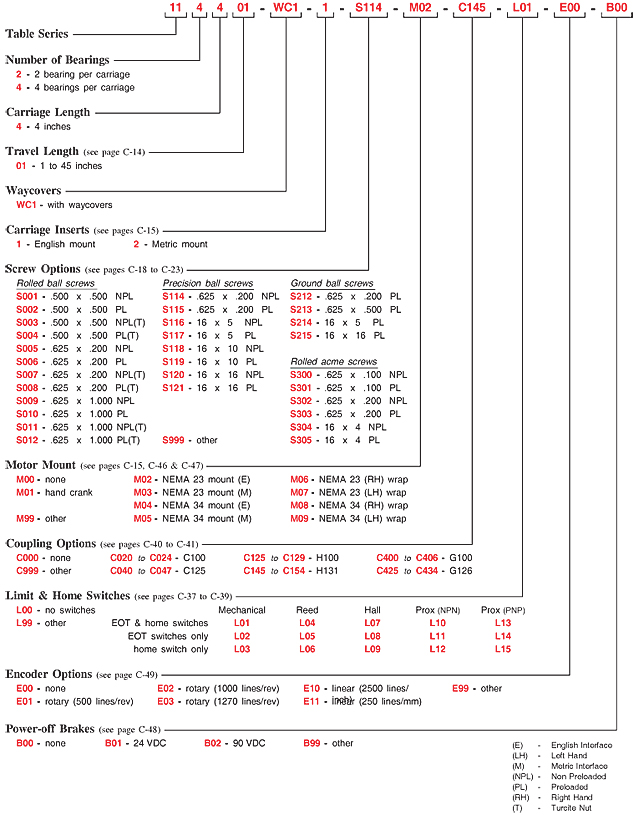

Part Number

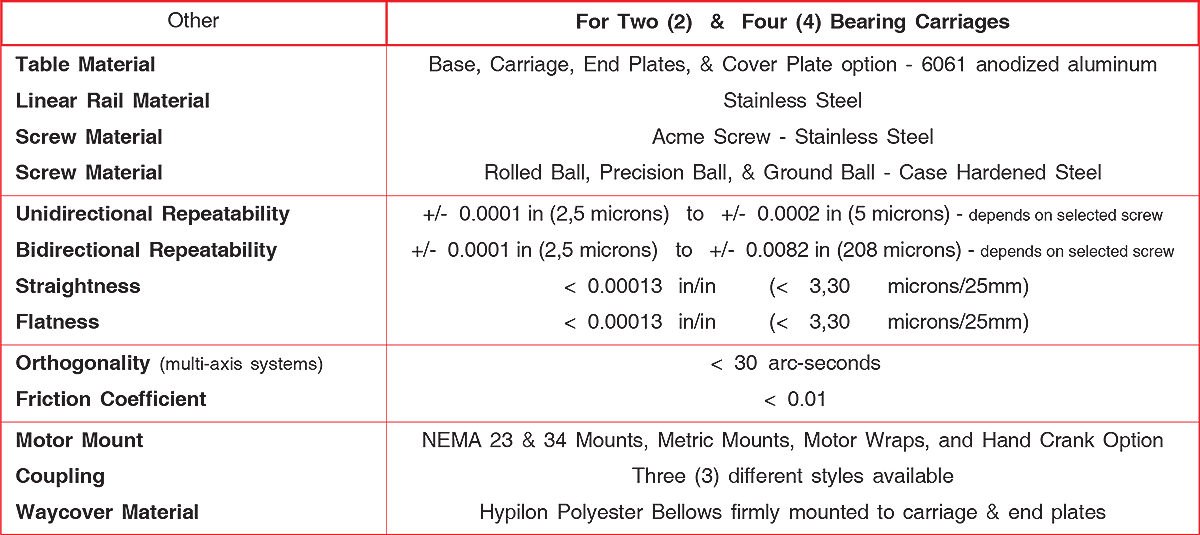

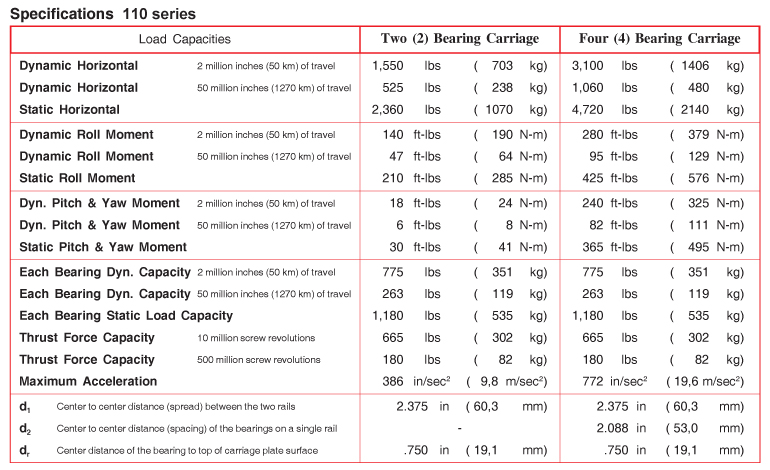

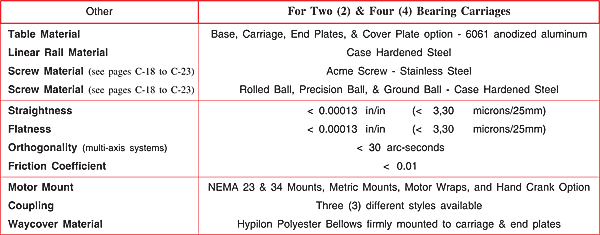

More Specs

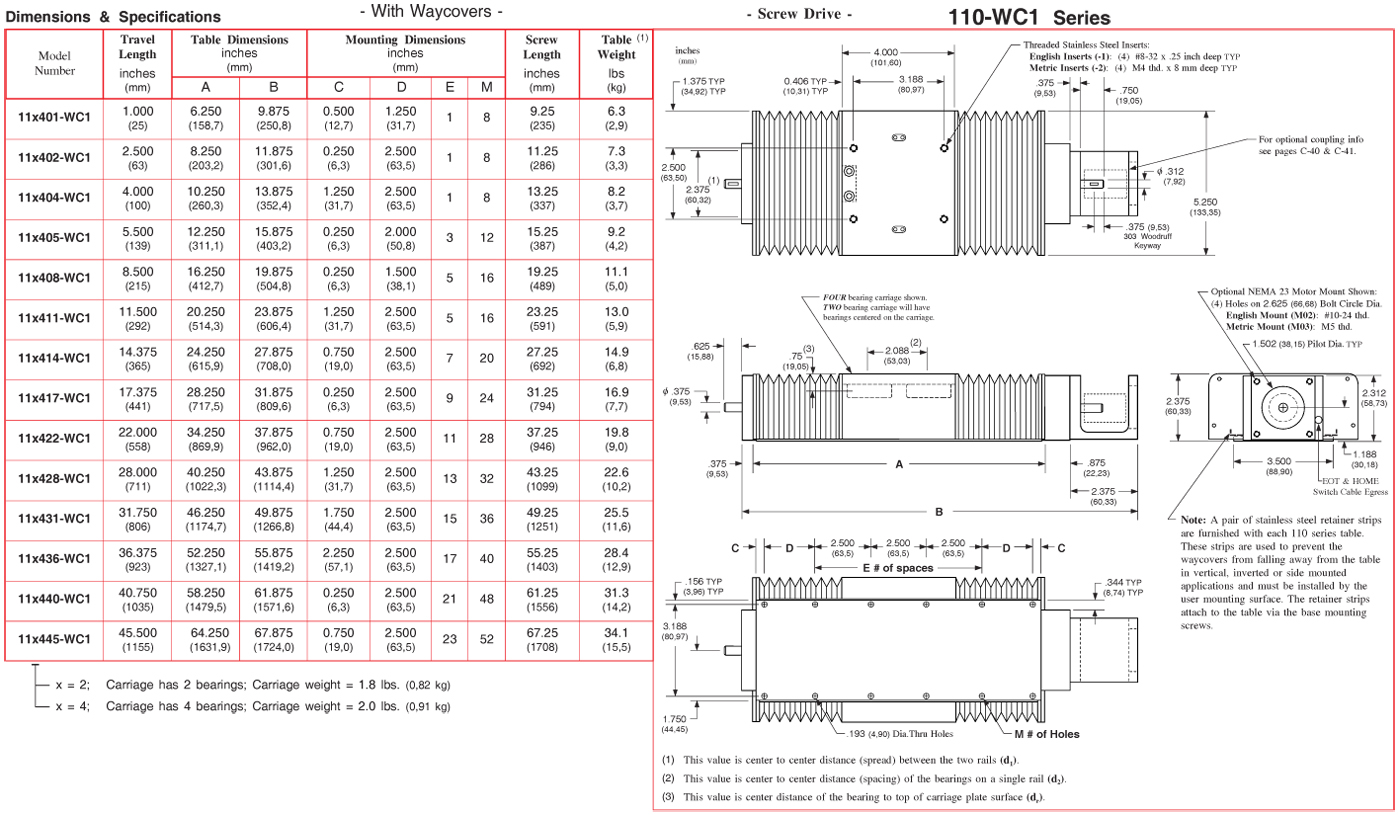

(Dimensions)

WC1


Product Overview
Model Number:	110 series
Key Feature:	Waycovers on Small Screw Driven Linear Positioning Slides
Linear Bearing:	Square Rail
Drive Type:	Acme Screw or Ball Screw
Height:	2.375 in (60 mm)
Width:	5.250 in (133 mm)
Load Capacity:	3,100 lbs (1406 kg)
Travel Range:	2 to 60 in (50 to 1520 mm)
Top Speed:	< 50 in/sec (1270 mm/sec)
Mounting:	English or Metric
Delivery:	2 to 4 weeks
Get a Price Get a CAD File

The Lintech 110 series linear slides are designed to maximize performance while minimizing physical size and cost. These positioning tables use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear profile rails. The linear rails are protected by a Hypilon Polyester Waycover, and are mounted to a precision machined aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. There are 30 different acme & ball screw options, that offer high efficiencies and long life at an economical price. These linear actuators are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages and versatile mounting brackets for multiple axis applications.

PDF File Down Loads
110 Technical Information (280k)	Design Section Systems (1,696k)
Complete 110 Section (1,286k)	Custom Systems (701k)
Complete Systems Catalog (8,873k)	Systems Service Manual (1,325k)
