Products - 100 series

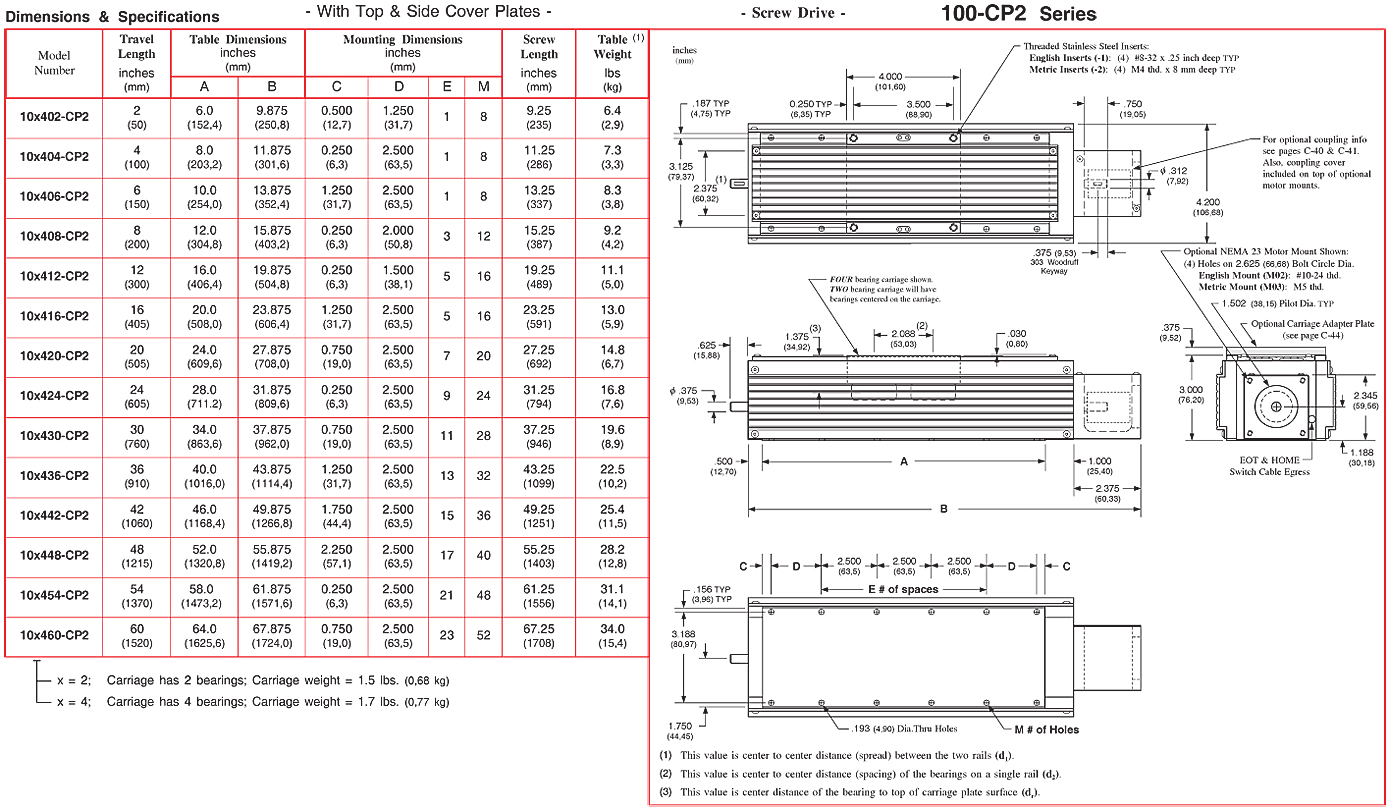

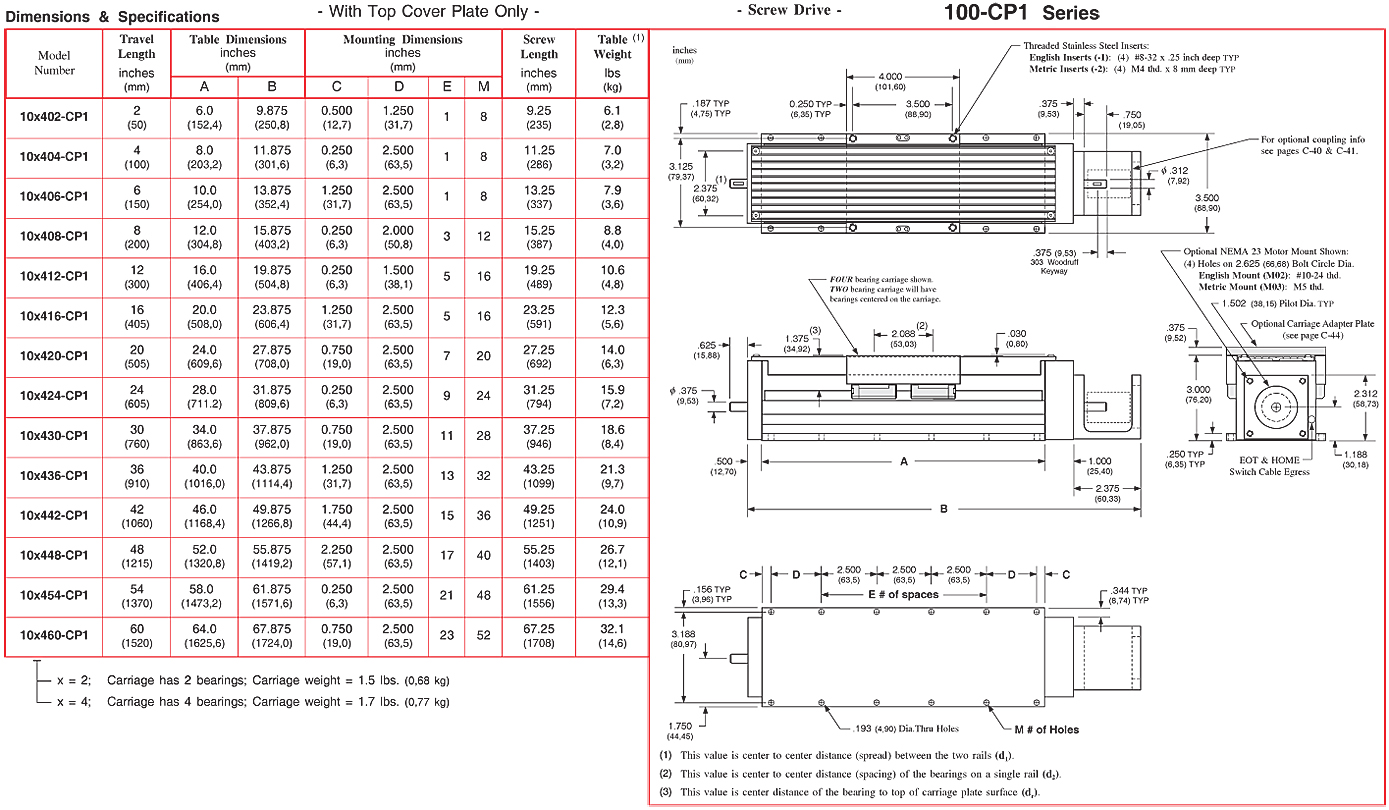

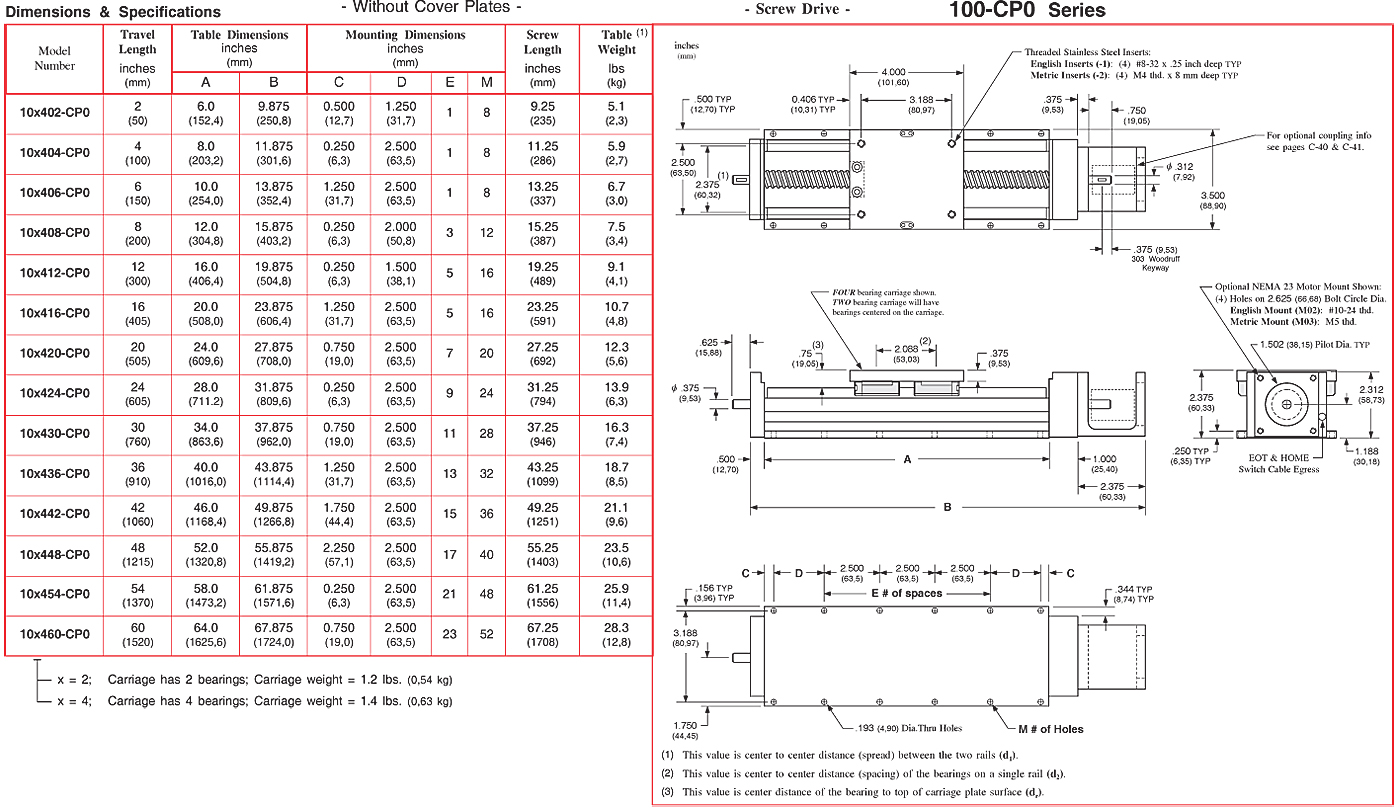

(Dimensions)


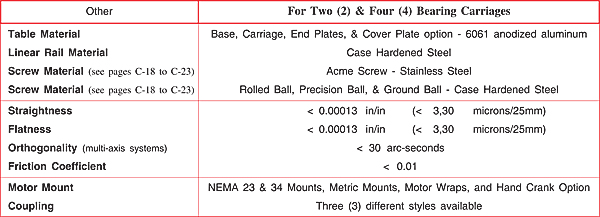

Product Overview
Model Number:	100 series
Key Feature:	Small Screw Driven Linear Slides
Linear Bearing:	Square Rail
Drive Type:	Acme Screw or Ball Screw
Height:	2.375 in (60 mm)
Width:	3.500 in (88,9 mm)

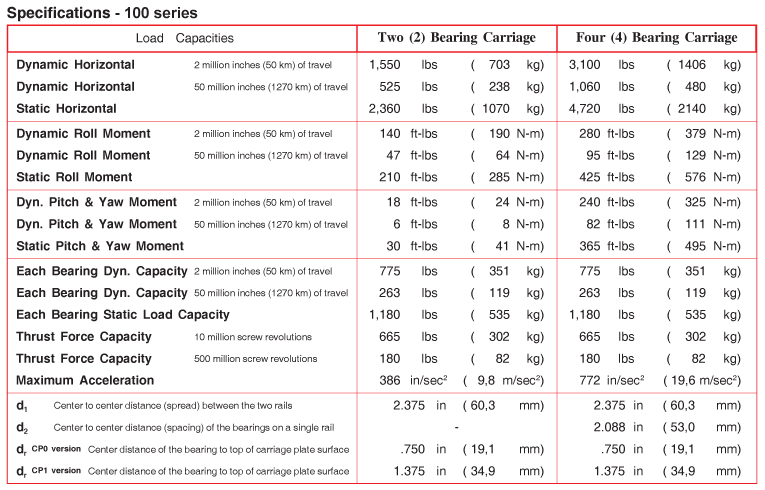

Load Capacity:	3,100 lbs (1406 kg)
Travel Range:	2 to 60 in (50 to 1520 mm)
Top Speed:	< 50 in/sec (1270 mm/sec)
Mounting:	English or Metric
Delivery:	2 to 4 weeks

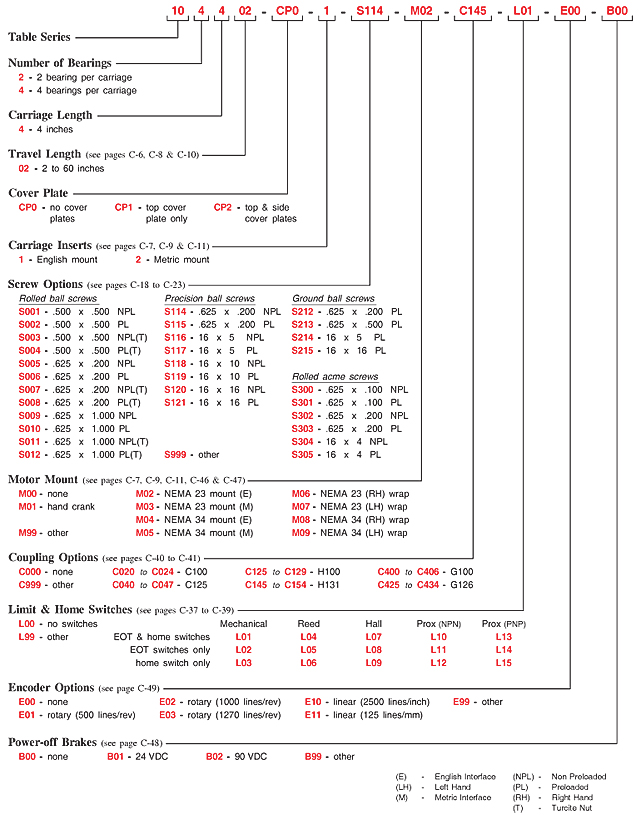

Get a Price Get a CAD File

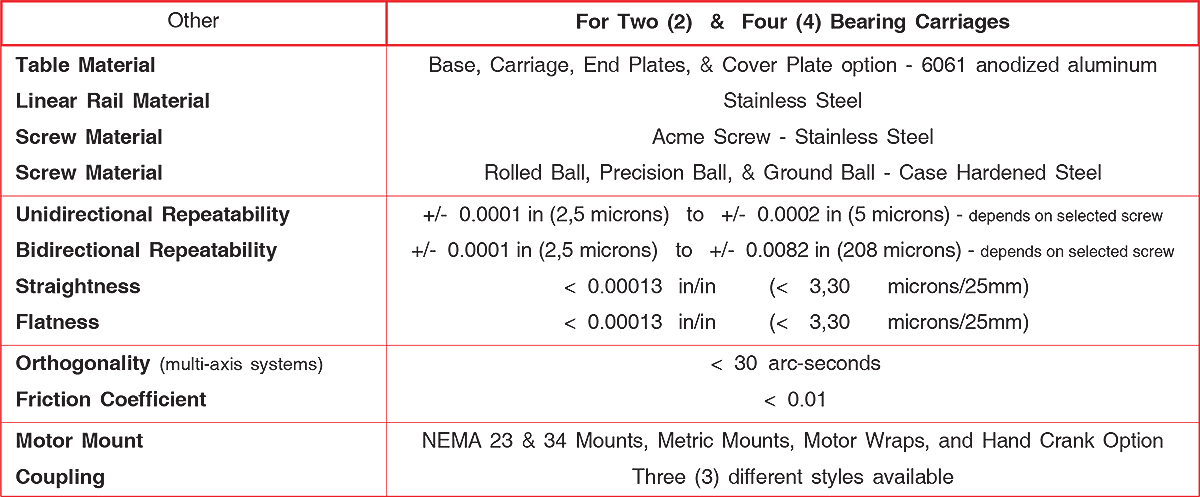

The Lintech 100 series linear actuators are designed to maximize performance while minimizing physical size and cost. These linear slides use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear square rails. The linear profile rails are mounted to a precision machined aluminum base, which offers a rigid support over the entire travel of the table's carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. There are 30 different acme & ball screw options, that offer high efficiencies and long life at an economical price. These linear positioning tables are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages and versatile mounting brackets for multiple axis applications.

PDF File Down Loads
100 Technical Information (350k)	Design Section Systems (1,696k)
Complete 100 Section (1,286k)	Custom Systems (701k)
Complete Systems Catalog (8,873k)	Systems Service Manual (1,325k)
